Summary of Contents for Iiyama ProLite X3272UHS
-

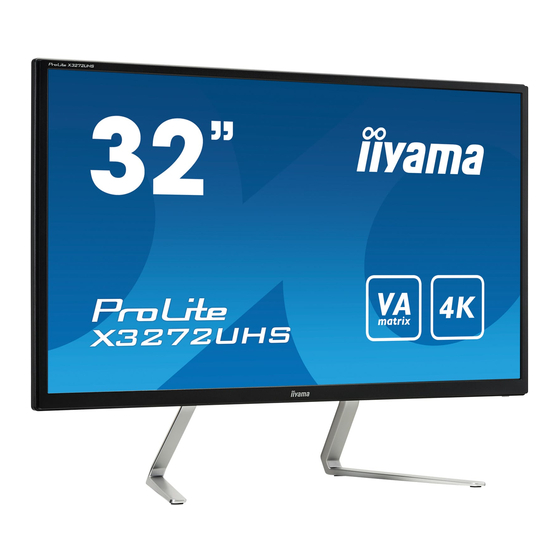

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL3272UH We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 CONTROLS AND CONNECTORS..........6 CONNECTING YOUR MONITOR ...........7 COMPUTER SETTING ..............8 ADJUSTING THE VIEWING ANGLE ..........8... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. -
Page 6: Installation Location
CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury. -
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 9mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS Power Indicator White: Normal operation NOTE Orange: Power Management Headphone hook* Navigation Button <Front> Power Switch / Menu Scroll Up ( ) Scroll Down / ECO Mode ( ) Left / Input Select ( ) Right / Audio Adjust ( ) Keyhole for Security Lock You can fasten a security lock NOTE and cable to prevent the monitor from being removed without your... -
Page 11: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 12: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 21: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. -
Page 13: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 21. You are also able to adjust the picture by following the button operation shown below. -
Page 14: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness i-Style Color Standard Adv. Contrast Overdrive Exit Move Select Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright For general windows environment and monitor Standard default setting. -
Page 15: Image Setup
Image Setup Image Setup Aspect Ratio Wide Exit Move Select Adjustment Item Problem / Option Button to Press Wide Expansion display Aspect Ratio Displays all picture in 4:3 aspect ratio. Displays all picture in 5:4 aspect ratio. OPERATING THE MONITOR 11... -
Page 16: Color Temp
Color Temp. * Color Temp. Color Temp. Warm Green Blue Exit Move Select Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Yellowish white Warm Greenish white sRGB sRGB Color Temp. Too weak User Green Too strong Blue sRGB is an international standard which defines and unifies the difference of color NOTE... -
Page 17: Osd Setup
OSD Setup OSD Setup H. Position V. Position Timeout Language English Exit Move Select Adjustment Item Problem / Option Button to Press OSD is too left H. Position OSD is too right OSD is too low V. Position OSD is too high You can set the OSD display duration time Timeout between 5 and 100 seconds. -
Page 18: Pip Setting
PIP Setting PIP Setting PIP Setting Size Small Position Right-Up Swap Exit Move Select Adjustment Item Problem / Option Button to Press When there are two or more input signals, you can display PIP / PBP. PIP Setting is turned off. PIP Setting Display the Sub screen in the main screen. - Page 19 Extra Extra Input Select DDC/CI Reset Information Resolution: 1920<H> * 1080<V> H. Frequency: 67KHz V. Frequency: 60Hz Exit Move Select Adjustment Item Problem / Option Button to Press HDMI1 Select the Digital (HDMI1) input. HDMI2 Select the Digital (HDMI2) input. Main Source Select the Digital (DisplayPort) input. HDMI1 Select the Digital (HDMI1) input. Sub Source HDMI2 Select the Digital (HDMI2) input.
- Page 20 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Audio Adjust: Press the Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Eco * : Press the...
-
Page 21: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 22: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 23: Recycling Information
The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of loud or too quiet. the monitor. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 19... -
Page 24: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Size Category 32" Panel technology Size Diagonal: 31.5" (80cm) Pixel pitch 0.181mm H × 0.181mm V Brightness 300cd/m (Typical) Panel Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time 3ms (Gray to Gray) Display Colors Approx. 1.07 Billion HDMI: Horizontal: 30.0-135.0kHz, Vertical: 24-75Hz Sync Frequency DisplayPort: Horizontal: 30.0-135.0kHz, Vertical: 24-75Hz Native Resolution... -
Page 25: Dimensions
DIMENSIONS 729.5mm/28.7” 64.5mm/2.5” 700.5mm/27.6” 457.5mm/18.0” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz...
