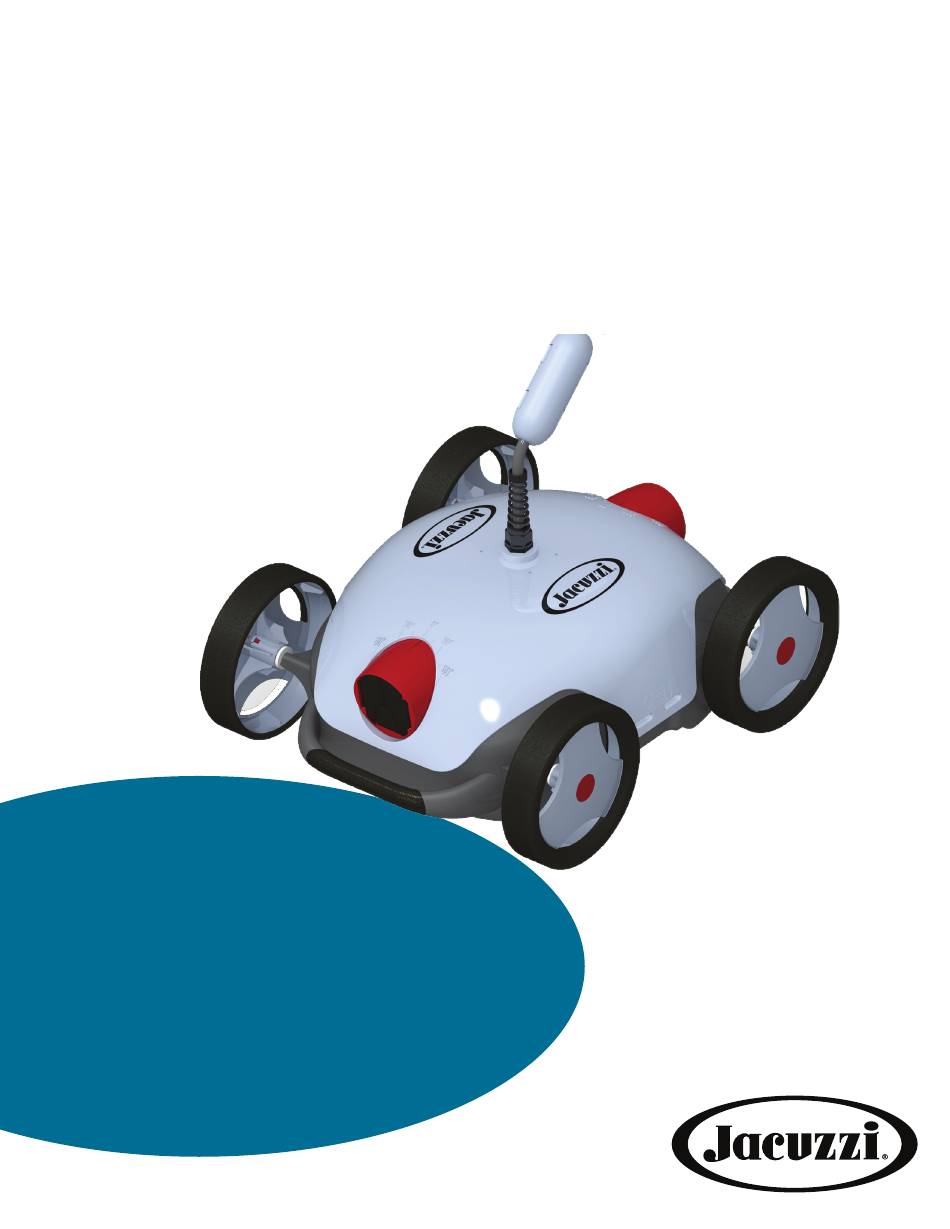

- Page 1 Jacuzzi ® COMET Robotic Pool Cleaner Operating Manual Safety and Warnings Specifications Prior to Installation Installing Your Cleaner Cleaner Maintenance Helpful Tips Troubleshooting Warranty...
- Page 2 Comet Robotic Pool Cleaner, an innovative and highly efficient ® pool cleaner. Through its advanced computer-controlled program, the Comet can clean the pool floor automatically without draining pool water, while also filtering and ridding your pool of particles and sediments.
- Page 3 SPECIFICATIONS PRIOR TO USE: Ensure the cleaner corresponds to your local voltage and frequency (Hz) Rated Input Voltage and Frequency 110V/60Hz Output Voltage DC24V Rated Output Power 150W Working Cycle 1h/1.5h/2h Cable Length 39.37ft (12m) Maximum Cleaning Area 646 sqft (60m ) (for 12m cable in rectangle pool) Filtering Capacity 5283 gal / (20m...
-
Page 4: Preparing Your Pool
PRIOR TO INSTALLATION Carefully read and follow all instructions contained in this operating manual. Failure to do so may cause injury, inhibit the operation of the pool cleaner, or damage your pool. This cleaner was not designed to be the first clean at the beginning of the season. If you have a vinyl pool, check for wear and tear, creases in the vinyl, or any obstructions under the liner. - Page 5 INSTALLING YOUR CLEANER 1.1 CABLE CONNECTION 1.1.1 Plug the cable line into the socket on the power supply unit NOTE: Be sure to plug it in the correct direction and position, and fasten the nuts on both sides of the plug. Plug or unplug the cable by holding this position Figure 1.1.1 1.2 OPERATING PANEL...
- Page 6 INSTALLING YOUR CLEANER Item Name Function Detail ON / OFF Power on or off Power on or off “1H” –1-Hour Cycle Direction of travel reverses every 20 seconds. Suited for small pools. “1.5H”--1.5-Hour Cycle CYCLE Direction of travel reverses every 25 seconds.
- Page 7 1.3 FUNCTION & ADJUSTMENT OF NOZZLE 1.3.1 The COMET features two nozzles, one of which opens while the other closes. Water flows out through the opened nozzle to drive the cleaner forward. Adjust the direction of travel by rotating the nozzle.
- Page 8 INSTALLING YOUR CLEANER 1.3.3 Recommended cycle and nozzle settings: Nozzle Setting Moving Path 0 ̊ / 45 ̊ 0 ̊ / 30 ̊ 0 ̊ / 60 ̊ 30 ̊ / 30 ̊...
- Page 9 Figure 1.5.1 TO REMOVE: Slowly pull the COMET from your pool by the cable, ensuring the wheels of the cleaner are facing the walls of your pool. Grasp the handle of the cleaner and allow water to fully drain.
- Page 10 CLEANER MAINTENANCE 2.1 CLEANING THE FILTER TRAY 2.1.1 To clean the filter tray, open the cleaner from both sides by unlatching the top cover. Remove the filter tray. Clean the filter tray with a steady stream of warm water. Reassemble the cleaner when finished.
- Page 11 CLEANER MAINTENANCE 2.2 REPLACING THE FILTER NET 2.2.1 To replace the filter net, press buckle to disassemble. Replace filter net and press to reassemble Figure 2.2.1...
- Page 12 4. Slowly pull cleaner from pool with cable, then grasp cleaner handle to fully remove from pool. 5. Clean pool with pump & filter before using the Jacuzzi Comet. If pool is heavily contaminated, use main filtration system before using cleaner.
- Page 13 TROUBLESHOOTING Symptom Possible reason Corrective action Cable not fully released Unplug power line and release cable Nozzle in extra angle Adjust water outlet into proper angle Cable twists or coils Obstruction in pool Remove obstruction in pool Stuck on main drain outlet of Turn off pool filter system the pool Power supply unit improperly...
- Page 14 Warranty period is one (1) year from date of purchase. Warranty covers the motor kit and the PCB. Proof of purchase must be provided for any claim or repair during the warranty period. For questions about the Jacuzzi Comet, or for warranty assistance, please contact Jacuzzi Support at 1-844-615-8994 or via email at questions@jacuzzipool.com.
