M2 Antenna Systems 2MCP8A Manual

SPECIFICATIONS:

Model ........................................ 2MCP8A
Frequency Range ...................... 143 To 148 MHz
*Gain .......................................... 9.2 dBic
Front to back .............................. 16 dB Typical
Beamwidth ............................... 60° Circular
Elipticity ...................................... >3dB
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ....................... 1.3:1 Typical

FEATURES:

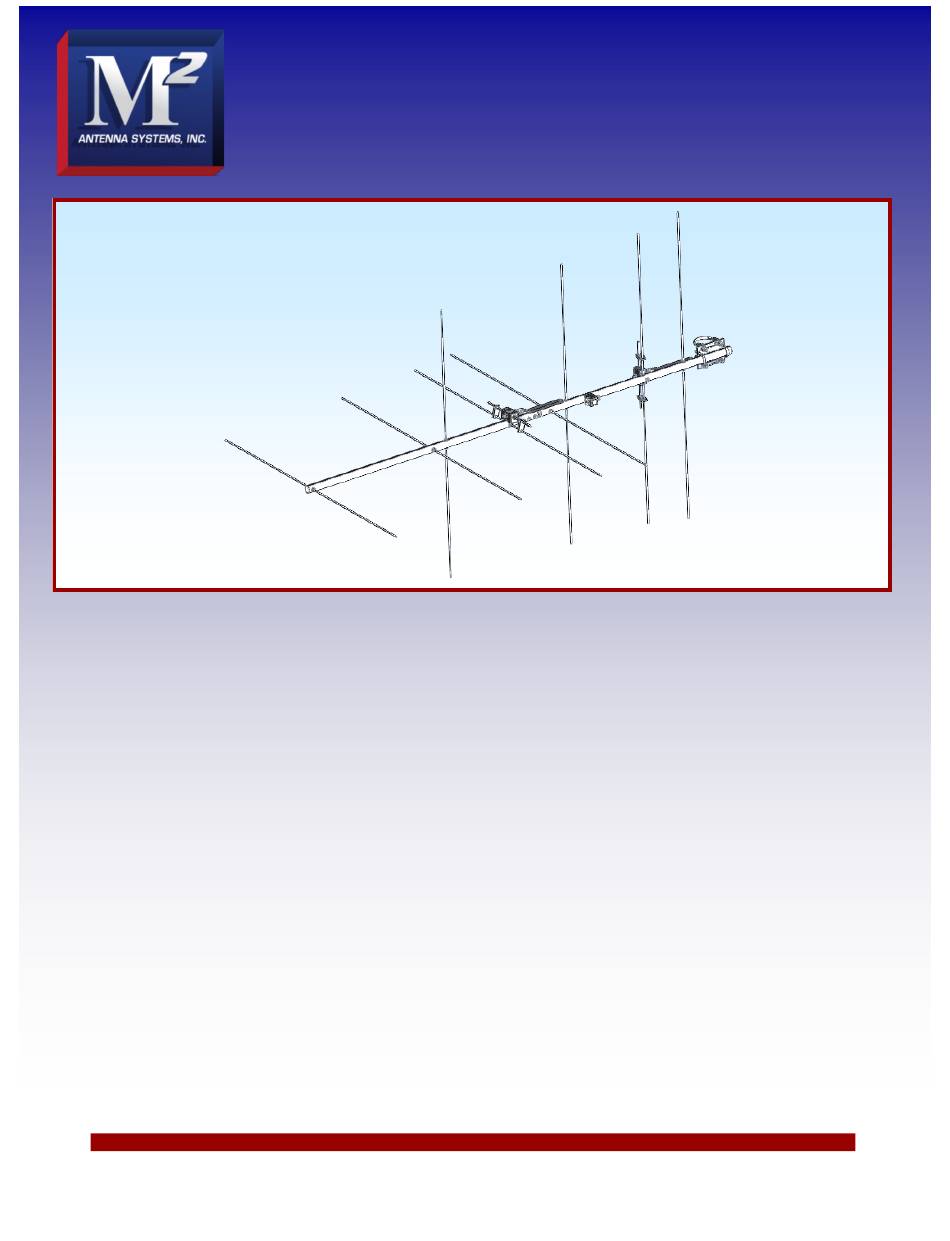

The 2MCP8A is a light weight, circularly polarized antenna optimized for Low Earth Orbit (LEO) satellite
communications or other applications where a small circular polarized antenna is required. Optimum match and gain are
between 143 & 148 MHz for the satellite band. Rear mounted for easy coaxial cable routing. A preamp can be mounted
close to the antenna for almost no coax loss before the preamp, maximizing your receive performance. Computer design
techniques help keep spurious side lobes low down for optimum signal to noise ratios. This antenna features the same
CNC machined, O-ring and silicone-gel sealed, driven element assemblies common to all M
years of trouble free performance regardless of weather.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 2MCP8A
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2018 M2 Antenna Systems Incorporated
Input Connector .........................."N" Female
Power Handling ..........................1.5 kW
Boom Length / Dia ......................64" / 1"
Maximum Element Length ..........41-1/4"
Turning Radius: ..........................64"
Stacking Distance .......................63" High & 63" Wide
Mast Size ....................................1-1/2" to 2" Nom.
Wind area / Survival ...................0.5 Sq. Ft. / 100MPH
Weight / Ship Wt. ........................4 Lbs. / 7 Lbs.
2
Yagi antennas. This insures
10/14/18
REV F
