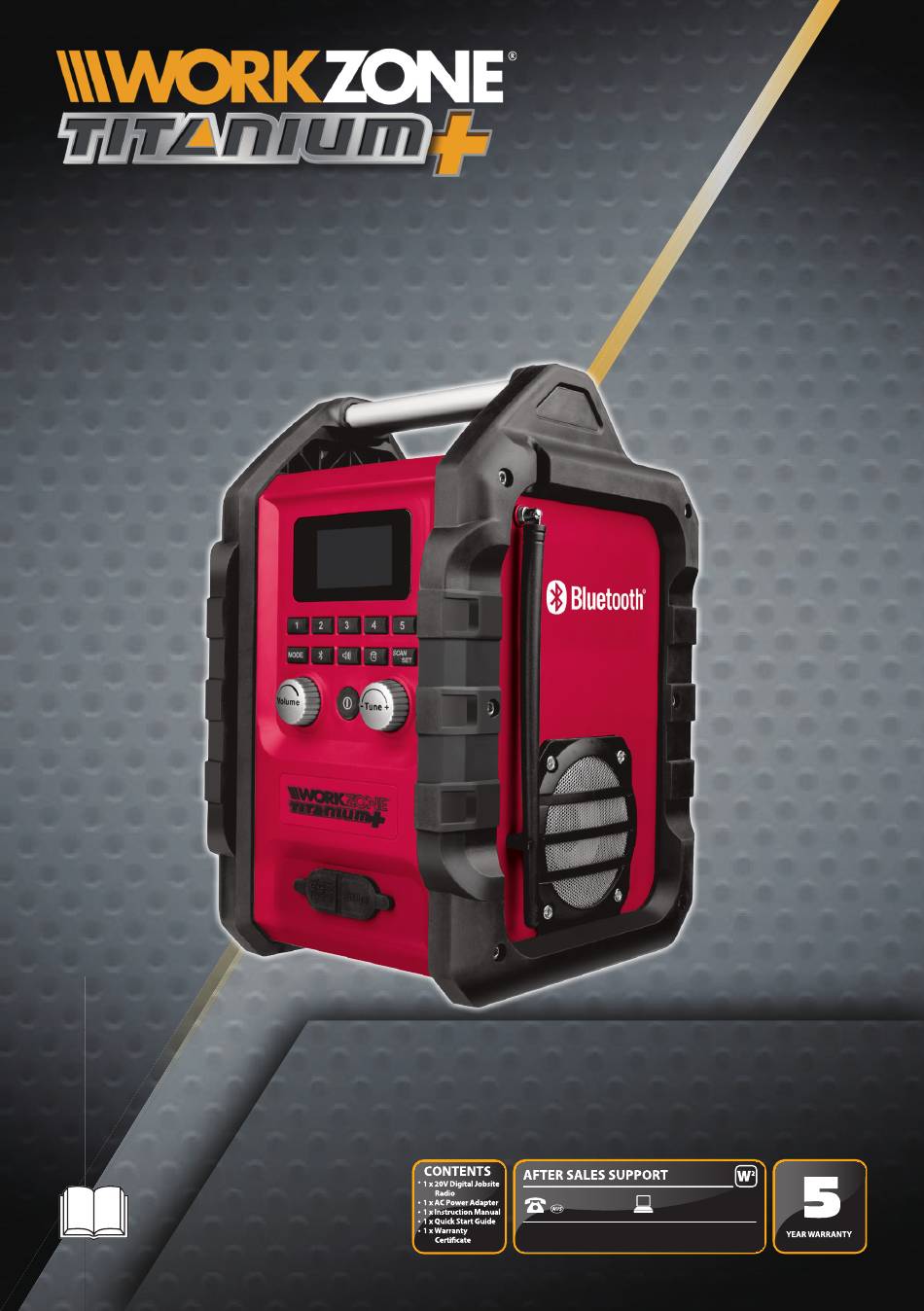

- Page 1 Xfinity Li-ION 20V JOBSITE Radio Instruction Manual MODEL NUMBER TRD18MA.9 Version number: 003 IMPORTANT Read carefully before use 1300 889 028 info.aldi@positecgroup.co m Keep for future reference MODEL: TRD18MA.9 PRODUCT CODE: 8307 06/2019...
- Page 2 Welcome Congratulations in choosing to buy a Workzone® Titanium 20V Li-Ion Jobsite Radio (battery / charger not included). All products bought to you by Workzone® Titanium are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 5 Year Warranty.
- Page 3 20V Li-Ion Jobsite Radio Warranty Details REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion.
-
Page 4: Table Of Contents
Contents Application Package Content List Parts description Description of symbols Product Safety Important information – Product care Assembly Operation Maintenance Warranty Environmental protection FAQ/Troubleshooting Technical specifications AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: TRD18MA.9 • 8307 • 06/2019... -
Page 5: Package Content List
20V LI-ION JOBSITE RADIO 1. Application First time users or inexperienced operators pay particular attention to the operation of the 20V Li-Ion Jobsite Radio, including details of starting and stopping and correct use of the 20V Li-Ion Jobsite Radio on pages 12-18, as well as the maintenance instructions on pages 18. -
Page 6: Parts Description
3. Parts description Handle 10. “Volume” adjustment knob LCD screen. 11. “Tune” adjustment knob Control Panel 12. Battery compartment latch AC adapter port 13. AA Battery back up compartment Auxiliary port (See Fig. C) Antenna 14. 20V Battery port (See Fig. D) Speaker 15. -
Page 7: Description Of Symbols
4. Description of symbols The instruction manual, rating plate, or on the product itself, may show these symbols. These represent important information about the product or instructions on its use. To reduce the risk of injury, user must read instruction manual Warning Conforms to relevant standards for electrical safety and electromagnetic compatibility. -
Page 8: Product Safety
5. Product Safety SAFETY WARNING SAVE THESE INSTRUCTIONS! READ ALL INSTRUCTIONS! Safety instructions WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and / or serious personal injury. 1) Do not use this apparatus near water. 2) Clean only with dry cloth. -
Page 9: Important Information - Product Care
CAUTION: Danger of explosion if the incorrect battery is used. Use only ALDI 20V Li-Ion Xfinity Plus batteries and chargers for this product. 6. Important information – Product care NOTE: Battery and Charger not included. For any issuses related directly to your Battery / charger, contact the Customer Service of the manufacturer as listed on the battery / charger packaging, manual or on the label on the battery / charger. - Page 10 battery compartment (13) cover and insert 2 new AA batteries (not supplied). Make sure the batteries match with the correct polarity markings inside the compartment. Replace the AA back up battery compartment (13) cover (See Fig C, D). Secure the cover by re inserting and tightening the screw in a clockwise direction.
- Page 11 3. Installing or removing 20V battery (not supplied) 1. To insert the 20V battery (15), push it into the 20V battery port. Always insert it all the way until it locks in place with a click. (See Fig E) 2. Do not use force when inserting the battery. If the battery does not slide in easily, it is not being inserted correctly.
- Page 12 9. Operation 9.1 Radio 1. Press the power button (16) to switch on the radio. You can choose the source AM or FM by pressing on the MODE button. 2. Turn the volume adjustment knob (10) to adjust the volume. Turn the tune adjustment knob (11) to set the frequency.
-
Page 13: Setting The Clock
By rotating the tune adjustment knob (11), you can adjust to 10 kHz. Complete the setting by pressing mode button. 9.2 Setting the clock 1. Press and hold down the SCAN/SET button for 3 seconds. The time is displayed in the middle of the LCD screen (2) and the hour flashes. - Page 14 adjustment knob (10) to adjust the minutes. 3. Finally, press to confirm and finish the setting of the alarm clock. 4. To activate/deactivate the alarm, press the button once. The icon appears on the screen when the alarm is activated. 9.4 Setting the clock radio 1.
- Page 15 3. Press the mode button to choose the radio station. Turn the tune adjustment knob (11) to choose among the 5 stations. 4. Finally, press to complete the setting. 5. To activate/deactivate the alarm, press the button once. The icon is displayed on the screen when the alarm is activated.
- Page 16 9.6 Bluetooth The performance of the Bluetooth system depends on the brand and the model of your device to be connected. Compatibility with all types of devices is not ensured. To get the best effect from transmission of data via Bluetooth, the distance between the two devices must not exceed 8 m, and there must be an open path between the radio and the bluetooth device.
-
Page 17: Using An Auxiliary Device
9.7. Using an Auxiliary Device 1. Remove the rubber protector and insert the connector into the auxiliary port (5) on the front side of the radio. It is for connecting a cell phone, MP3 Player, CD player or other audio device with the radio. - Page 18 9.8. USB Power outlet This radio includes a USB charging port located in the battery compartment area (8). This can be used to charge phones and other USB devices within the parameter of the USB output . Charging will occur only when the radio is plugged into an outlet or running by a battery pack.
-
Page 19: Warranty
Your new WORKZONE TITANIUM 20V Li-Ion Jobsite Radio will more ® than satisfy your expectations. It has been manufactured under stringent WORKZONE TITANIUM ® Quality Standards to meet superior performance criteria. You will find your new 20V Li-Ion Jobsite Radio easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 20: Environmental Protection
Service Support If you have any issues with the operation of your product, please call us on 1300 889 028 for advice, or email us at info.aldi@positecgroup.com 12. Environmental protection Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. -
Page 21: Faq/Troubleshooting
13. FAQ/Troubleshooting Fault Cause Remedy It’s a result of the The Battery pack stepping down of the gets warm when chemical reactions inside This is normal. charging. the batteries during the charging process. Return the tool to an The fault cannot The tool needs to be authorized dealer for be rectified. -
Page 22: Technical Specifications
15. Technical specifications DC input 12V 1A Battery voltage USB Output 1.0A AM frequency coverage 520-1710KHz FM frequency coverage 87.5-108MHz Aux input terminal Standard 3.5mm Bluetooth Input 2402MHz---2480MHz Bluetooth Range Weight 4.5kg AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: TRD18MA.9 •... - Page 23 This 20V Li-Ion Jobsite Radio complies with the following Standards: Radio LVD: IEC 60065 AS/NZS 60065 EMC: EN 55032 EN 55035 EN 61000-3-2 EN 61000-3-3 EMF: EN 62479 RED: EN 300328 EN 301489-1 EN 301489-17 EN 303 345 Adapter LVD: IEC 61558-1 IEC 61558-2-6 AS/NZS 61558.1...
- Page 24 ALDI store within 60 days from the date of purchase for a full refund or replacement, or take advantage of our after sales support by calling the supplier‘s Customer Service Hotline. WORKZONE TITANIUM is a registered trademark of ALDI Stores ®...
