Carrier XARIOS X150-04 Operator's Manual

Single t road / standby refrigeration units
Hide thumbs
Table of Contents

Advertisement

Quick Links

Our company is constantly seeking to improve the quality of its products and,
therefore, reserves the right to modify its products without prior notice.
CARRIER TRANSICOLD EUROPE S.C.S.
10, bou le vard de l'Oise
F-95031 CERGY PONTOISE CEDEX
Phone: +33 (0)1 34 43 48 00
500 Carrier service stations
Fax: +33 (0)1 34 43 48 48
in Europe, Russia,
www.carrier-transicold-europe.com
Middle East and Africa
© Carrier Corporation - Carrier Transicold Europe S.C.S. au cap i tal de 16 090 700 euros
R.C.S. Pontoise B 410 041 776 - Code APE 518 M - VAT: FR52410041776
The infor ma tion con tained in this doc u ment is not con trac tu al ly bind ing,
and may not be repro duced with out pri or approv al. Printed in France (05/05) 62-61177-01
XARIOS Single T° ROAD/STANDBY
X150-04/200-04/300-05/350-05/500-04 & 600
¡ F ¡C
0
SYSTEM
ON / OFF
OPERATOR'S
MANUAL
BETJENINGSVEJLEDNING
MANUEL
OPERATEUR
I N S T R U K T I O N S B O K
BEDIENUNGSANLEITUNG
ÐÓÊÎÂÎÄÑÒÂÎ ÎÏÅÐÀÒÎÐÀ
MANUAL DEL OPERADOR
NÁVOD
K
OBSLUZE
MANUALE
UTILIZZATORE
INSTRUKCJA
OBSŁUGI
BEDIENNIGSHANDLEIDING
MANUAL DO UTILIZADOR
Xarios 150/200
Xarios 300/350
Xarios 500/600
1a
2.2
L
WA
XX
X dB
.
1b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XARIOS X150-04 and is the answer not in the manual?

Questions and answers

Kwanele Dlamini
March 8, 2025

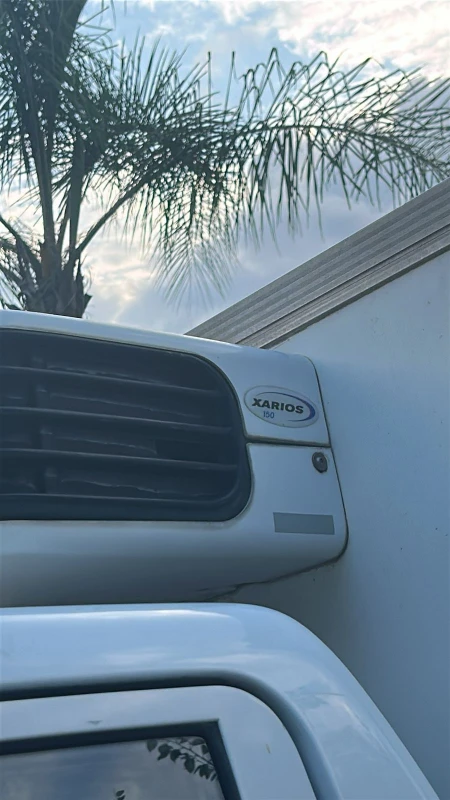

I would like to ask , does xarios 150 reach negative 150 °

User image 67cc7a5f98fbd
0
Kwanele Dlamini
March 8, 2025

Does xarios 150 reach negative 20 °

User image 67cc7b282246b
0

Related Manuals for Carrier XARIOS X150-04

Summary of Contents for Carrier XARIOS X150-04

  • Page 1 Middle East and Africa © Carrier Corporation - Carrier Transicold Europe S.C.S. au cap i tal de 16 090 700 euros R.C.S. Pontoise B 410 041 776 - Code APE 518 M - VAT: FR52410041776 The infor ma tion con tained in this doc u ment is not con trac tu al ly bind ing,...
  • Page 2 2.3 INSTALLATION...

  • Page 3: Table Of Contents

    When having your unit serviced, be sure to specify genuine Carrier Transicold replacement parts for the highest quality and best reliability. At Carrier Transicold, we are continually working to improve the products that we build for our customers. As a result, specifications may change without notice.
  • Page 4 7.1.6. Control components ........7.2.

  • Page 5: Identification

    IDENTIFICATION Keep the fold out sheet while reading the instructions. 2.1. Nameplate Each unit is identified by a nameplate attached to the frame of the unit.The nameplate identifies the complete model number of the unit, the serial number and some other information. If a problem occurs, please refer to the information on this plate, and make a note of the model and serial number before calling for assistance.
  • Page 6 Automatic start : This refrigeration unit is equipped with Auto- -Start/Stop, a valuable fuel saving feature. When this refrigeration unit is set for Auto- -start/Stop operation it may start at any time and without warning. Before servicing refrigeration unit, make sure the main power switch is on the OFF position. Ensure the unit will not restart.
  • Page 7 Engine coolant : This refrigeration unit is equipped with a pressurised cooling system. Under normal operating conditions, the coolant in the engine and radiator is under high pressure and very hot. Coolant is very slippery. It can be harmful in case of ingestion. Never remove the cap from a hot radiator when this refrigeration unit is running or immediately after.
  • Page 8 Battery : This refrigeration unit may be equipped with a lead- -acid type battery. When charging the battery normally vents small amounts of flammable and explosive hydrogen gas. Projections of acids on the skin or eyes can cause severe burns. Keep any flame, any lighted object or any source of sparks away from the battery elements.

  • Page 9: Warning Stickers Maintenance

    Clean the pictograms with water and soap and wipe them with soft fabric. c. Replace damaged or missing pictograms with new pictograms available in Carrier network. d. If a component having a pictogram is replaced by a new one, be sure that the new component has the right pictogram.
  • Page 10 SOME ADVICE Before loading D Pre- -cool the inside of the insulated body by lowering the temperature for about 15 minutes. D Evacuate the humidity existing inside the box by carrying out a manual defrost. This can only take place when enabled by the defrost thermostat (box temperature lower than 3_C.

  • Page 11: Recommended Transport Temperatures

    Below are some general recommendations on product transport temperatures and operating modes for the unit. These are included for reference only and should not be considered pre- -emptive of the setpoint required by the shipper or receiver. More detailed information can be obtained from your Carrier Transicold dealer. Product Set- - point Range...

  • Page 12: Operation

    OPERATION Keep the fold out sheet while reading the instructions. 7.1. Operating principle After starting up, the refrigeration unit by pressing the ON (9.) key, unit start- -up and shut- -down are automatic. 7.1.1. In ROAD mode An open- -type compressor is driven by the engine of the vehicle. The vehicle battery (alternator) powers the evaporator and condenser fans.

  • Page 13: Heating

    7.1.5. Heating The heating option (by hot gas) is delivered STANDARD on XARIOS 600 and only on REQUEST on other units. The evaporator fan operates, the condensor fan is controlled by the microprocessor. 7.1.6. Control components Cab control : Automatic selection of road or standby operation. Shut- -down.

  • Page 14: Operation On Standby Mode

    7.3. Operation on STANDBY mode VERY IMPORTANT THE UNIT MUST BE SHUT- -DOWN BEFORE CONNECTING OR DISCONNECTING THE STANDBY SUPPLY CABLE ! 1. Before starting : On the power network : check that the type of current corresponds to the characteristics of the unit (see paragraph 7.3.3.).
  • Page 15 Maximum amperage for operation equipment Maximum amperage for operation equipment Operating voltage XARIOS 500- - 04 XARIOS 600 230/1/50Hz 17.2 amps 17.2 amps 230/3/60Hz 16.6 amps 16.6 amps 208-230/1/60Hz 20 amps 20 amps 400/3/50Hz 8 amps 10.7 amps Operating voltage XARIOS 300- - 05 XARIOS 350- - 05 230/3/50Hz/60Hz...

  • Page 16: To Change Display Brightness

    7.4. To change display brightness 1. Press the ON (9.) to start the unit. 2. Press the - - or + key (5. or 7.) during 5 seconds to increase or decrease the display brightness. 7.5. To change setpoint temperature IMPORTANT If, when settings are adjusted, no key is activated within 5 sec.

  • Page 17: To Change Other Datas

    7.7. To change other datas IMPORTANT If, when settings are adjusted, no key is activated within 5 sec. the system reverts to displaying the box temperature. All changes made are recorded. 1. Press the SET key (6.) during 5 seconds to enable access to malfunction codes (see 7.9. for alarm list).

  • Page 18: Fault Alarm Display

    7.9. Fault alarm display a. Access by the SET key 1. Press the SET key (6.) during 5 seconds to access to malfunction codes. 2. Press the - - or + key (5. or 7.) to display alarms Current malfunctions: AXX Past malfunctions : PXX 3.

  • Page 19: Maintenance

    NOTE All maintenance services must be done by a technician trained on Carrier products respecting all safety and quality standards of Carrier. Before any operation requiring an intervention on the unit, check that : the unit (cab command) is OFF.

  • Page 20: Maintenance Schedule

    Road compressor oil type : The road compressors are supplied with CARRIER POLYOLESTER (POE) oil. The presence of a sticker indicates that oil- -change has been correctly carried out in our Carrier Transicold plant. Oils of PAG type are strictly incompatible with the operation of our units : never use an oil other than that approved by Carrier.

  • Page 21: A.t.p. Europe Regulation Extract

    A.T.P. EUROPE REGULATION EXTRACT (Date: March 1974) Approval of vehicles intended for the carriage of perishable goods. Before putting a refrigerated vehicle into service, it is necessary to have it approved by the Regional Health Department. CHARACTERISTICS OF VEHICLES USED FOR CARRYING PERISHABLE GOODS; REFRIGERATION UNIT.

  • Page 22: 24H Assistance

    24H ASSISTANCE At Carrier Transicold we’re working hard to give you complete service when and where you need it. That implies a worldwide network of dealers and available an emergency service. These service centers are manned by factory- -trained service personnel and backed by extensive parts inventories that will assure you of prompt repair.

This manual is also suitable for:

Xarios x 350-05Xarios x 200-04Xarios x 300-05Xarios x 600Xarios x 500-04
