Airxcel 9630-352 Installation, Operation & Application Manual

This thermostat should be installed by trained technicians only. Adhere to all local and national
codes. Disconnect all power to the system before installing, removing, or cleaning.
Application
The thermostat wiring is factory installed by the OEM (Original Equipment Manufacturer). RV
Products suggests the thermostat wiring be a minimum of 18 gauge. The thermostat is intended
for use with a 12 VDC control circuit that does not exceed 1 amp. The thermostat is equipped
with a replaceable 2 amp fuse located on the base of the thermostat. The fuse is designed to
"open" if the circuit is mis-wired or if there is a short in the system. Before replacing the fuse, the
cause of the failure must be located and corrected.
Operation

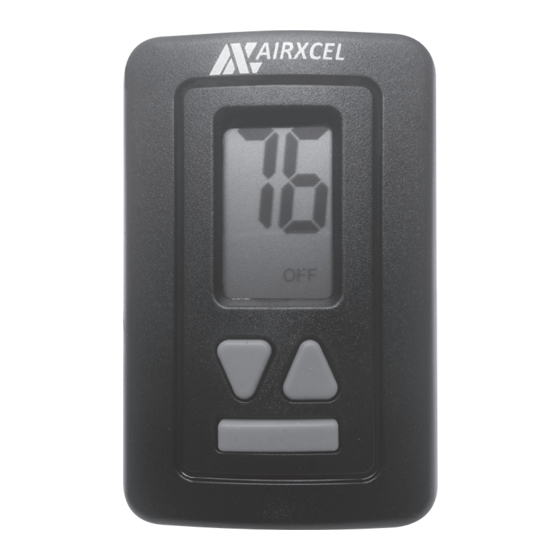

The display indicates the mode and the room temperature. When the mode button is pressed
once, the thermostat will wake and if your thermostat is equipped with a backlight, the backlight
will illuminate. When the mode button is pressed again, the mode will change. Press the
button to wake the thermostat, the set temperature will display and flash. Press the
button again to change the set temperature. The thermostat will go back to sleep mode after 5
seconds if no buttons are pressed.
In electric heat mode, if the heat pump is unable to satisfy the thermostat call, the heat pump
will go into lockout (See heat pump and backup heat example for conditions of heat pump
lockout). When thermostat is in lockout, ELEC will flash on the display.
In gas heat mode, the gas furnace will provide the only source of heat and the heat pump is
locked out.
Mode
Cooling (set)
Heating (set)
Refer to the operation chart for a more detailed listing of operation sequence.
Installation
ELECTRICAL SHOCK HAZARD – Turn off power at the main service panel by
removing the fuse or switching the appropriate circuit breaker to the Off position
before removing the existing thermostat.
A. THERMOSTAT LOCATION
This thermostat is a sensitive instrument. For accurate temperature control and comfort, the
following considerations should be taken into account:
1. Locate the thermostat on an inside wall about five feet above the floor.
Pick a dry area where air circulation is good.
2. Do not install thermostat where there are unusual heating
conditions, such as direct sunlight, near heat producing
appliances (televisions, radio, wall lamp, etc.), or a furnace or air
conditioner supply register.
B. INSTALLING THE THERMOSTAT
1. Place mounting screw template against the wall where thermostat will
be mounted.
2. Using supplied screws, mount the template to the wall.
3. Remove plastic from between mounting screws.
4. Connect thermostat wiring to motorcoach wiring.
5. Place thermostat on mounting screws and gently push the thermostat
down to lock the thermostat onto mounting screws.
6. Turn on power to the thermostat.
INSTALLATION, OPERATION
& APPLICATION GUIDE

HEAT PUMP

9630*352*
Caution
Temperature
Range
°F °C
33°F to 99°F 1°C to 37°C
33°F to 99°F 1°C to 37°C
Note: When used to replace a thermostat which previously did not use plugs,
please remove the plugs and use wire nuts as needed.
From thermostat 9630*352*
Wht/Blk
Gray
Green
Red
R
Blue
B
GL
GH
Yellow
Y
WHP
White
W
05-03-18
DOWN – Wake thermostat and decrease temperature
MODE – Wake thermostat, change mode
Note: Hold mode button down for 5 seconds. The thermostat will change from fahrenheit to
celsius or celsius to fahrenheit. The backlight will turn off after five seconds.
1. Download the RVClimate app from either the
Google Play store or Apple App store.
2. Open the app and select "ADD NEW
THERMOSTAT".
3. On the thermostat, hold the Up and Down
buttons simultaneously to enter pair mode.
4. On the App select "PAIR NEW
THERMOSTAT".
5. When prompted, enter the 6 digit ID from the
or
thermostat and select "PAIR".
or
6. Once connected the thermostat will revert to
the main screen.
7. Slide screen to the left (2nd screen).
8. Press .
9. Select "ZONE NAME".
10. Assign a name or description to the thermostat
(7 characters max).
11. Select "SET" to save the assigned name or
description.
Note: Each thermostat may be connected
to a maximum of 4 individual phones.
Any subsequent connections will
result in the oldest/first connections being automatically deleted in order.
Pairing additional thermostats
1. Using the RVClimate app.
2. Slide screen to the left (last screen).
3. Select "PAIR NEW THERMOSTAT".
4. On the thermostat, Hold the Up and Down buttons simultaneously to enter pair mode.
5. When prompted, enter the 6 digit ID from the thermostat and select "PAIR".
6. Once connected the thermostat will revert to the main screen.
7. Slide screen to the left (2nd screen).
8. Press .
9. Select "ZONE NAME".
10. Assign a name or description to the thermostat (7 characters max).
11. Select "SET" to save the assigned name or description.
Note: A maximum of 3 units may be added to an individual phone.
Pairing a previously paired thermostat
1. Using the RVClimate app select "ADD NEW THERMOSTAT".
2. On the thermostat, Hold the Up and Down buttons simultaneously to enter pair mode
3. Thermostat will automatically pair.
Note: If thermostat doesn't pair automatically, when prompted enter the 6 digit ID from the
thermostat and select "PAIR".
4. Once pairing is complete, press the thermostat's mode button to return to the main screen.

Wiring Diagrams

Fan Lo
1
Fan Hi
2
M
Heat Pump
3
4
Compressor
1
+12 VDC
2
F
-12 VDC
3
Furnace
4

Button Functions

UP – Wake thermostat and increase temperature

Pairing the Thermostat

Plug Housing
Amp P/N: 1-480702-0
Pin Terminal x2
Amp P/N: 350218-1
Cap Housing
Amp P/N: 1-480703-0
Socket Terminal x4
Amp P/N: 350536-1
