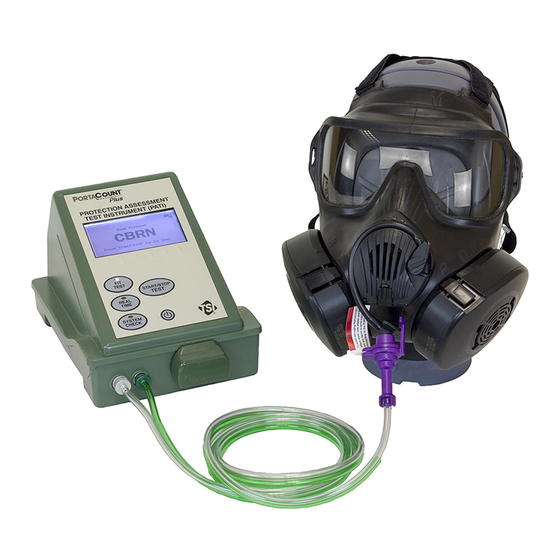

TSI Instruments PORTACOUNT 8020M Quick Start Manual

TSI Instruments PORTACOUNT 8020M Quick Start Manual

Respirator fit tester
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
PORTACOUNT
Start Up
1. Fill the alcohol fill capsule up to the fill line using
the supplied isopropyl alcohol. Insert the alcohol
cartridge into the fill capsule and wait 2 minutes for
alcohol to be absorbed. Then Insert the alcohol
cartridge into the Model 8020M and twist to lock.
WARNING
Isopropyl alcohol is a hazardous material. DO NOT
allow alcohol to get into your eyes. Avoid contact with
the skin. DO NOT swallow or ingest it in any way.
Alcohol is extremely flammable. DO NOT expose to
open flame or sources of ignition. Consuming the
alcohol will result in severe illness or death. See the
manual for instructions.
2. Connect the power adapter cord to the back of the
Model 8020M.

QUICK START GUIDE

RESPIRATOR FIT TESTER
®
3. Attach the sample
and ambient
tubes.
4. Press the
ON/OFF button
to turn the
instrument on.
5. Wait for the instrument to warm up (60 seconds).
MODEL 8020M

Advertisement

loading
Need help?

Need help?

Do you have a question about the PORTACOUNT 8020M and is the answer not in the manual?

Questions and answers

Related Manuals for TSI Instruments PORTACOUNT 8020M

Summary of Contents for TSI Instruments PORTACOUNT 8020M

  • Page 1: Quick Start Guide

    QUICK START GUIDE PORTACOUNT RESPIRATOR FIT TESTER ® MODEL 8020M 3. Attach the sample Start Up and ambient tubes. 1. Fill the alcohol fill capsule up to the fill line using the supplied isopropyl alcohol. Insert the alcohol cartridge into the fill capsule and wait 2 minutes for alcohol to be absorbed.
  • Page 2 –2– If the Zero Check or Maximum Fit Factor Check fails, Perform System Check refer to the manual for troubleshooting information. 1. After warm-up the instrument will go into System Check 7. Remove the HEPA filter. The default mask protocol mode.
  • Page 3 –3– 2. Attach the sample tube (clear tube) to the fitting on 5. Head movement side to side. the end of the drink tube adapter. Test subject looks over each shoulder in one-second intervals. Perform a Fit Test 1. Prepare mask and test subject first. Put the instrument in Fit Test mode by pressing the Fit 6.
  • Page 4 9. Press the Start/Stop TEST button to immediately Perform a Real Time Test begin another Fit Test with a new test subject. A Real Time Test is used to assist in mask training. It allows a test subject to experiment with strap tension and other adjustments while watching the effect in real time.
