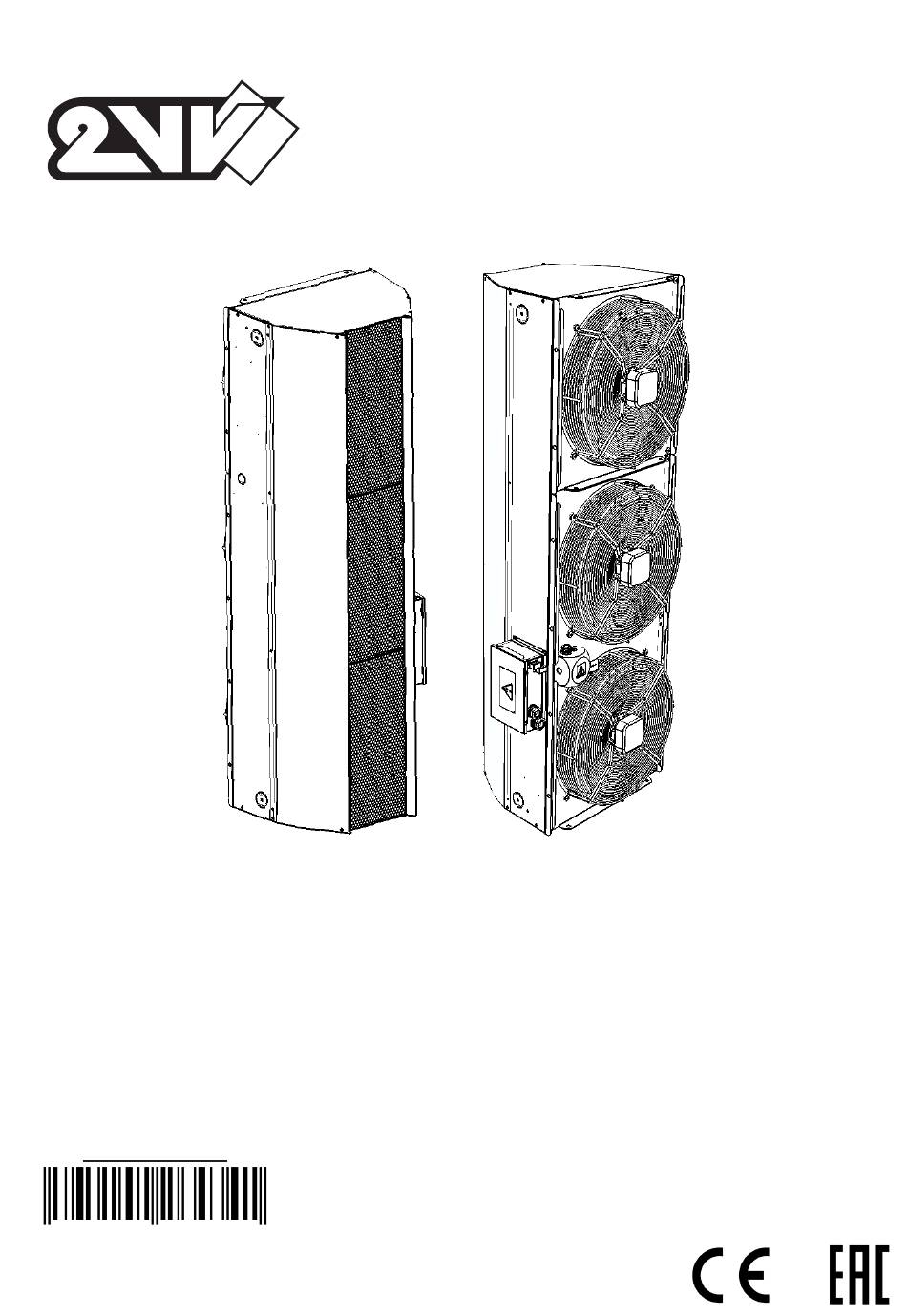

- Page 1 INDESSE Industry VCIN AC/EC INSTALLATION AND OPERATION P01-0302-0515-01 8595102264341...
-
Page 2: Table Of Contents
INSTALLATION AND OPERATION ....................BEFORE YOU BEGIN ....................... UNPACKING ........................MAIN PARTS ........................SPARE PARTS ........................DIMENSIONS ........................TECHNICAL SPECIFICATIONS..................INSTALLATION ........................FIRST USE ..........................MAINTENANCE ........................TROUBLESHOOTING ....................... PRODUCT DISPOSAL ...................... IN CONCLUSION ........................ -
Page 3: Installation And Operation
INDESSE Industry VCIN INSTALLATION AND OPERATION... -
Page 4: Before You Begin
The harmonized European standards referred to in the relevant EC declaration of conformity have been applied in the assessment. For the current and full version of the EC Declaration of Conformity, please see www.2vv.cz or the enclosed CD. (when at- tached to the packaging). -
Page 5: Unpacking
2. UNPACKING 2.1 CHECK DELIVERY 2.2 UNPACK THE AIR CURTAIN After delivery, immediately check whether the • Packaged accessories: packaged product is damaged. Summon the carrier 2 x Connecting part in case of damage to the packaging. If a claim is not lodged in a timely manner, it is not possible to en- force potential claims in the future. -
Page 6: Main Parts
3. MAIN PARTS Connecting straps (2 pcs, they are part of the air curtain) Exhaust grille (Straw system) Fans Box for the connection of fans Box for the connection of the electric heater (can be exchanged for contactor module - accessories) Water / electric exchanger (within air curtain) -
Page 7: Spare Parts
4. SPARE PARTS VCIN2A150 VCIN2A200 VCIN2A250 Description pc/air pc/air pc/air code code code curtain curtain curtain Motor AC ND-VEN-AC-AX-YWF4E-450B-V ND-VEN-AC-AX-YWF4E-450B-V ND-VEN-AC-AX-YWF4E-450B-V Motor EC ND-VEN-EC-AX-EC102-A450 ND-VEN-EC-AX-EC102-A450 ND-VEN-EC-AX-EC102-A450 Electro-installation ND-VCIN1-KRAB-VENT ND-VCIN1-KRAB-VENT ND-VCIN1-KRAB-VENT Water ND-VCIN1-VV-15 ND-VCIN1-VV-20 ND-VCIN1-VV-25 exchanger Electric ND-VCIN1-EL-VYM ND-VCIN1-EL-VYM ND-VCIN1-EL-VYM exchanger Straw system ND-VCIN1-VOST ND-VCIN1-VOST... -
Page 8: Dimensions
1650 mm 1,5 m 2,5 m STUDENÁ VERZE 1650 mm 2200 mm 2750 mm 320 mm 870 mm 870 mm 1,5 m Á VERZE 1,5 m 2,5 m 1,5 m 2,5 m 1650 mm 5. DIMENSIONS 1650 mm 2200 mm 2750 mm 1650 mm 2200 mm... -
Page 9: Technical Specifications
6. TECHNICAL SPECIFICATIONS Noise Heater Fans power Postflow * Heater output *** Weight Type of air output [dB(A)]** power supply supply curtain [m³/h] [kW] [V/A] [V/A] [kg] 11550 67,5 63,0 230/3,9 VCIN...150-S0AC VCIN...150-V2AC 10300 67,5 63,1 91,3*** 230/3,9 VCIN...150-P2AC VCIN...150-E1AC 11550 67,5 63,0... -
Page 10: Installation
Installation from both sides to achieve a better screening effect AIR CURTAINS LUFTSCHLEIER AIR CURTAINS LUFTSCHLEIER Produced in EU The company reserves the right of change without previous announcement. ©2VV, spol. s r.o. Produced in EU The company reserves the right of chan... - Page 11 7. INSTALLATION POSSIBLE WAYS OF INSTALLATION - HORIZONTAL INSTALLATION Horizontal installation on the wall Movable wall bracket VCIN2-KOT-H-STENA THREADED RODS ARE NOT SUPPLIED, THEY MUST BE ENSURED. Horizontal installation on the ceiling Movable ceiling bracket VCIN2-KOT-H-STROP THREADED RODS ARE NOT SUPPLIED, THEY MUST BE ENSURED.
- Page 12 TSCHLEIER AIR CURTAINS LUFTSCHLEIER he company reserves the right of change without previous announcement. ©2VV, spol. s r.o. Produced in EU The company reserves the right of change without previous announcement. ©2VV, spol. s r.o.
- Page 13 7. INSTALLATION Installation dimensions - vertical installation Floor plan of vertical installation min 300 The air curtain must be aligned in the vertical level! • The bottom air curtain must stand on a flat, stable surface. • It must be operated indoors, in covered and dry areas with ambient temperatures from + 5 ° C to + 40 ° C and a relative •...
- Page 14 7. INSTALLATION Spacing distances MATERIAL MATERIAL MATERIAL MATERIAL Only non-flammable materials (do not burn, do not glow, do not carbonize) or not easily flammable material (do not burn, mostly glow - e.g. drywall) may be at a distance of 100 mm from the air curtain in all directions. These materials must not cover the intake or exhaust vents.
- Page 15 7. INSTALLATION The modular assembly of air curtains From the individual modules of INDESSE Industry air curtains we can create assemblies depending on the require- ments for the desired length, air power or heating capacity of the assembly. When installing and greater height of assembly it is necessary to take into account the weight that will affect the bottom air curtain.
- Page 16 7. INSTALLATION HORIZONTAL MOUNTING OF THE AIR CURTAIN Measure the place of the horizontal installation and fasten the consoles Pension consoles are optional accessories and must be ordered. Installation on the ceiling through Installation on the ceiling through VCIN2-KOT-H-STENA VCIN2-KOT-H-STROP Used material: Used material: Wall plug...
- Page 17 7. INSTALLATION Dimensions and weights of air curtains Air curtain Weight (kg) 1pc of air curtain Dimension A (mm) 1650 VCIN...150-S0... VCIN...150-V2... 1650 VCIN...150-P2... 1650 1650 VCIN...150-E1... 2200 VCIN...200-S0... VCIN...200-V2... 2200 2200 VCIN...200-P2... 2200 VCIN...200-E1... Hanging must bear the weight of the air 2750 VCIN...250-S0...
- Page 18 7. INSTALLATION Install threaded rods Threaded rods aren’t accessories of the air curtain and it is necessary to ensure them. Install the air curtain using fork lift platform TIP: If the air curtain is packed horizontally, you can leave it in the package and lift the entire assembly up. After the securing of the air curtain you bring the empty packaging down...
- Page 19 7. INSTALLATION Fasten to prepared threaded rods Detail of fixing Secure properly against spontaneous loosening or falling...
- Page 20 Zubehör empfohlen. FTSCHLEIER AIR CURTAINS LUFTSCHLEIER The company reserves the right of change without previous announcement. ©2VV, spol. s r.o. Produced in EU The company reserves the right of change without previous announcement. ©2VV, spol. s r.o.
- Page 21 7. INSTALLATION VERTICAL FIXING OF THE AIR CURTAIN - MOVABLE BRACKET Floor brackets are optional accessories of the air curtain and it is necessary to order them. Measure the holes by using the holes in the bracket, Fasten the upper part of the bracket to the air curtain which must be drilled into the floor Připevněte pomocí...
- Page 22 7. INSTALLATION VERTICAL FIXING OF THE AIR CURTAIN – MOBILE BRACKET Floor brackets are optional accessories of the air curtain and it is necessary to order them. If the height of the air curtain (group of air curtains) Set the required counterblow exceeds 4m, then we recommend using an auxiliary By using a separate bracket you can set potential 10 °...
- Page 23 7. INSTALLATION VERTICAL FIXING OF THE AIR CURTAIN - STATIONARY BRACKET Floor brackets are optional accessories of the air curtain and it is necessary to order them. Fasten the air curtain to the floor Install the brackets on the air curtain The installation material is not part of the air curtain.
- Page 24 7. INSTALLATION VERTICAL FIXING OF THE AIR CURTAIN - STATIONARY BRACKET Floor brackets are optional accessories of the air curtain and it is necessary to order them. If the height of the air curtain (group of air curtains) Set the required counterblow exceeds 4m, then we recommend using an auxiliary By using a separate bracket you can set the potential at 10 °...
- Page 25 7. INSTALLATION CONNECT HOSEPIPES OF WATER INLET AND OUTLET Flexible hosepipes with connection G1”. The connection and pressure tests of the heater must be done by a person with expertise in plumbing and it must meet the applicable standards and regulations of the country. The heat exchanger is designed for water, which may have a maximum temperature of + 110 °...
- Page 26 7. INSTALLATION Regulation of water exchanger by three-way valve ZV-3 The regulation of the water exchanger must be dealt with separately. ZV-3 ZV-3 TER-P TER-P (B-AB) open (A-AB) Your partner in ventilation... Your partner in ventilation... Your partner in ventilation A detailed description of the regulation of the water exchanger by three-way valve (ZV-3), •...
- Page 27 7. INSTALLATION ELECTRICAL WIRING The electrical wiring of the air curtain must be implemented on the basis of a professional project of a quali- • fied electrical designer. Installation can be done only by a worker with professional training in electrical engineering. Applicable •...
- Page 28 7. INSTALLATION Power supply of electric heater: Table of minimal sizing of power Table of electric heater parametres cables of heaters Electric Voltage Type Cabel Type current of the air curtain of the air curtain [ks x mm VCIN...150 35,2 4 x 6 VCIN...150 VCIN...200...
- Page 29 7. INSTALLATION Installation of the contactor box: • The contactor box is an optional accessory for the VCIN Type E2. Here’s how to install the contactor module: Put the contactor module on the screw terminal, Dismount the electrical box of the electric heater: screw it and tighten the entire screw terminal properly.
-
Page 30: First Use
8. FIRST USE Before putting the air curtain into operation: Make sure that any tools or other objects that could damage the air curtain didn’t remain in the air curtain. • Make sure that the electric power supply, regulation and inlet of heating water are properly supplied. •... -
Page 31: Maintenance
9. MAINTENANCE Cleaning procedure The main electrical power supply (for fan + heater) must be shut down during maintenance of the heating unit. Before maintenance it is necessary to let the air curtain cool down! When handling the unit, it is neces- sary to use protective gloves against injury by sharp edges! The following procedure illustrates the cleaning of one section of fans. -
Page 32: Troubleshooting
10. TROUBLESHOOTING If you are unsure of the correctness of steps, do not attempt to perform any repairs and contact profes- sional service!!! Behavior of device Supposed problem Solution Vent the heat exchanger by using the venting screws. Air in the exchanger The device is noisy Shut-off valves on the device are Open the shut-off valve fully. - Page 33 10. TROUBLESHOOTING WHEN YOU AREN‘T ABLE TO REMOVE DEFECT BY YOURSELF If you are unable to resolve the problem, contact the supplier. For the fast removal of defects please provide the following information: - product reference number - serial number - running time - used accessories - installation location...
-
Page 34: Product Disposal
11. PRODUCT DISPOSAL PUTTING THE PRODUCT OUT OF OPERATION - DISPOSAL Before disposing of the product, make the product unusable. Even old products contain raw materials that can be reused. Take them to a collection point of secondary raw materials. The product is good to dispose at the place, which is specialized for it, and thus it will be possible to recycle materials. -
Page 35: In Conclusion
Read all instructions for proper and safe usage and follow them.. Regarding any questions or requests for clarifi- Kontakt: cation, do not hesitate to contact our sales de- partment or technical support department. 2VV, s.r.o. Poděbradská 289 530 09 Pardubice Czech Republic Internet: http://www.2vv.cz... - Page 36 Here stick the label, which you can find in accessories, for the future problem solving. Copyright © 2VV All rights reserved. Producer is not liable for damage to equipment caused by improper installation and operation, which are contrary to the instructions and contrary to common practice in the installation and operation...
