6.1.9. Firmware updating
With installation of TB20 ToolBox, the latest coupler firmware is available for updating via
USB connection. The TB20 ToolBox software can be downloaded from the download area

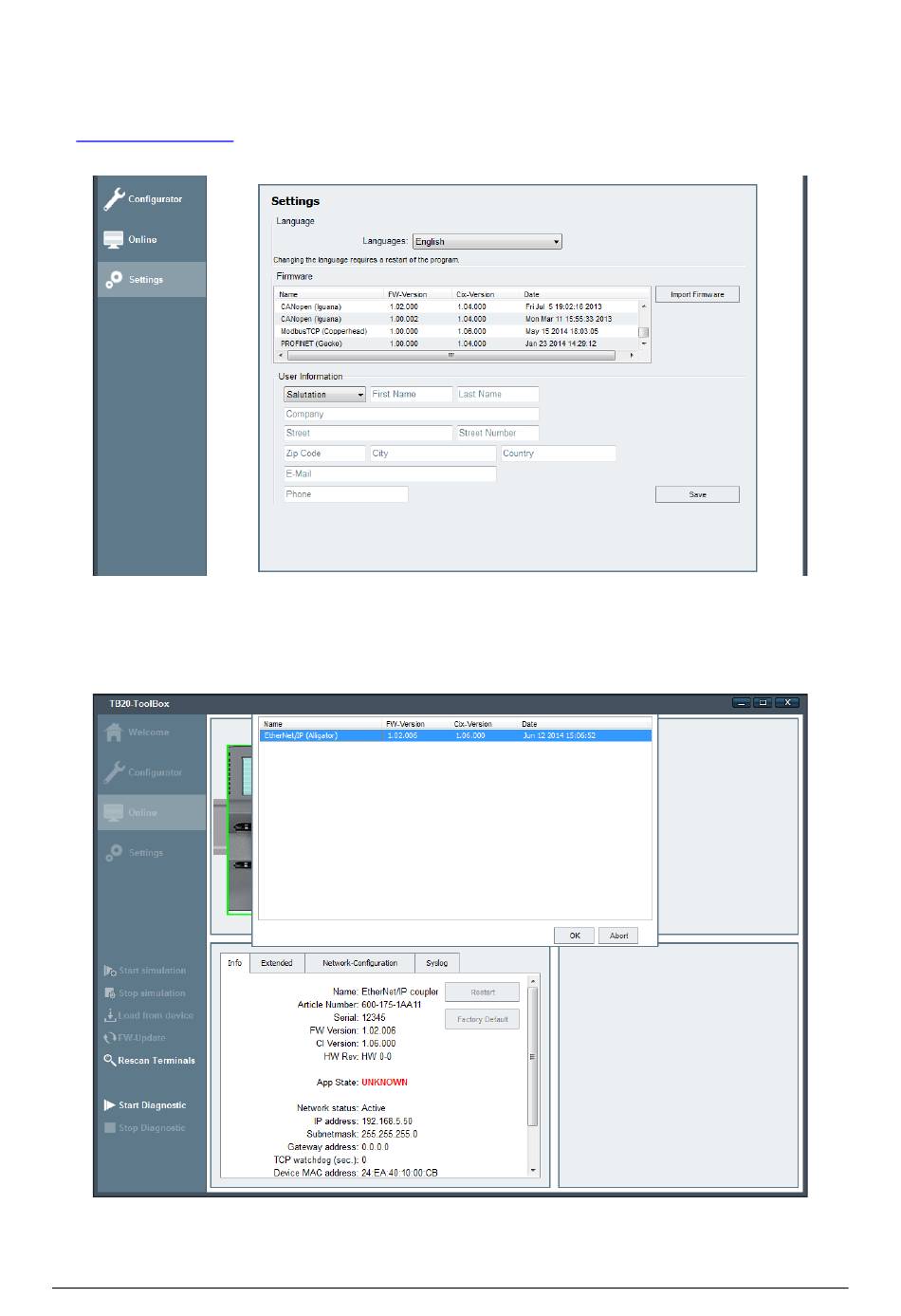

at www.helmholz.de. To get an overview of the firmware files currently available, click the
"Settings" menu option.
Firmware can only be uploaded in online mode. Clicking the "FW Update" button will
open a selection list like the one shown in the screenshot below. Once you get to this list,
simply select the firmware version you want and click "OK."
A progress bar will indicate the transfer's progress. Once the update is successfully
completed, in Online mode the new firmware version is displayed in the info box.
TB20 EtherNet/IP
TM
Coupler | Version 1 | 07.07.2014
42
