- Page 1 JPD-HA101 Electronic Blood Pressure Monitor User Manual Version: V1.0 Revision Date: May 2018...
- Page 2 Foreword Dear user: Thank you for purchasing our Electronic Blood Pressure Monitor. Please read the User Manual carefully and use correctly. Please keep the User Manual properly for checking and reference at any time. The Electronic Blood Pressure Monitor is suitable for adults . Product Profile: The product is called Electronic Blood Pressure Monitor, comprised of the host machine and the cuff, suitable for...
-
Page 3: Table Of Contents
Contents 1. Open-box Inspection.............. - 1 - 2. Packing List................- 1 - 3. Authorized European Representative:........- 2 - 4. Safety Precautions..............- 2 - 5. Product Composition..............- 3 - 6. Application Scope..............- 3 - 7. Product Components.............. - 3 - 8. -
Page 4: Open-Box Inspection
1. Open-box Inspection Before use, please unpack carefully, check whether all the accessories are intact and whether the components are damaged due to transportation against the following packing list, and perform the installation and operation in strict accordance with the User Manual. In case of any damage or operating problem, please contact our vendor or directly contact our company. -
Page 5: Authorized European Representative
3. Authorized European Representative: Wellkang Ltd Suite B, 29 Harley Street , London W1G 9QR,UK 4. Safety Precautions The warnings and illustrations shown in the User Manual enable you to use the product safely and correctly, thus preventing you and others from being injured, specifically as follows: Legend, mark and meaning Warning message... -
Page 6: Product Composition
Consult the instructions for use. This product complies with the MDD93/42/EEC requirements. 5. Product Composition The product is comprised of the host machine and the cuff of Electronic Blood Pressure Monitor. 6. Application Scope The Electronic Blood Pressure Monitor is used to measure the diastolic pressure, systolic pressure and pulse rate of adults by oscillometric method for diagnostic reference. -
Page 7: Pre-Use Installation
(2) Display Screen 8. Pre-use Installation - 4 -... - Page 8 (1) Install the battery Open the battery cover and load the battery into the battery compartment. The battery compartment is located at the bottom of the Electronic Blood Pressure Monitor. a）Open the battery cover as shown in the figure (as shown in the figure on the top right) b ）...
-
Page 9: Function Setting Mode
USB can be inserted for power supply of the product without battery. (4) Cuff The applicable arm circumference range of the cuff is 22-36cm or 22-42cm. Connection: Insert the air plug on the cuff into the air plug jack on the left side of the Electronic Blood Pressure Monitor. As shown in the following figure: Jack Cuff... - Page 10 the "User" key, and the screen will display "User 1" or "User 2". Press the "User" key again to switch to another user group. (2) Year/Month/Date setting In the "OFF" state, long-press the "User" key for 3~5s to enter the setting mode. After entering the "Year"...
- Page 11 After entering the "Date" setting mode, the screen will display 1/01 and keep flashing. Press the "Memory" key, and the value will be incremented. The value can be switched between 01~31. Press the "User" key for confirmation and enter the "Time" setting mode.
-
Page 12: Correct Method Of Use
(3) Unit display setting After entering the "Time" setting mode, press the "User" key, and the screen will display 0 or 0.0, i.e. enter the setting mode. If display of 0, it indicates that the mmHg unit is selected; if display of 0.0, it indicates that the kPa unit is selected. - Page 13 --Measure the same arm (generally the left arm). --Perform fixed-time measurement daily, because the blood pressure on the same day is also changing. (2) Measure the blood pressure - common factors resulting in measurement error --Comparative measurement of blood pressure must be performed under the same condition! Generally perform the measurement in a quiet environment! --The blood pressure might be increased due to forced support...
- Page 14 --Cuff looseness or air bag exposure might result in measurement error. --Repeated measurement might result in blood aggregation in the arm, which will affect the measurement result. Therefore you should have a rest for 3min or lift the arm for a while to make the aggregated blood flow away before repeated measurement.
- Page 15 4.Tighten the free edge of cuff to stick the hook & loop. 5.The cuff should twine round the upper arm comfortably, where you should be able to put two fingers in between them. Before measurement, you should remove any clothing that might confine the arm (e.g.
- Page 16 (5) Start measurement Measure the blood pressure -- measurement steps After you wear the cuff, you can start the measurement: 1.Press the "Switch Key", and the machine will return to zero automatically, the air pump will start to inflate the cuff, and the screen will display the change in the pressure in the cuff.
- Page 17 pump will stop the inflation, and the pressure in the cuff will be reduced gradually and displays in the screen. If the inflated pressure is insufficient, the machine will re-inflate automatically to a higher pressure; 3.When pulse is detected, the screen will display the "heart" symbol and start flashing.
- Page 18 whether arrhythmia) will be automatically saved to the memory. The number of groups is 01, and the previous memory group number will be extrapolated back in sequence. The default measurement result display unit is mmHg. In case of error in the measurement result, the high-pressure area will display the "Err", and the low-pressure area will display the value.
-
Page 19: General Knowledge Of Blood Pressure
99 groups of memory data are full, they will be replaced automatically. After the Electronic Blood Pressure Monitor is used for several times, in the OFF state, you can press the "Memory" key to display the recent measurement, and press the "Memory"... - Page 20 (2) Classification standard for blood pressure condition The standard blood pressure of WHO is as shown in the figure below. --There is no definition of hypotension yet. Generally, if the high pressure is less than 100mmHg (13.3kPa), it is hypotension. - 17 -...
-
Page 21: Instructions
12. Contraindications, Precautions, Warnings and Prompt Instructions (1) Warning: Do not let a child below 12 years old and the people who can’t express one’s intention .When it used by the people of 12~18 years old ,it should accompanied by the adult .Pregnant women use under the guidance of a doctor. - Page 22 start measuring to avoid can not be measured or other injury. For any patient, do not measure more than 3 times continuously, it should be at least above 5 minutes of interval rest between any two measurements,otherwise will cause extravasated blood. Do not apply the cuff over a wound as this can cause further injury.
- Page 23 results. Please consult your professional doctor with the measurement result record. The treatment based on the self-judgement of measurement results will be very dangerous; Please give the results of the measurement to the doctor who knows your health and receive the diagnosis; If you take some medicine, please follow the doctor's advice;...
- Page 24 otherwise, it might cause accident or failure; Please use the Electronic Blood Pressure Monitor under the guidance of doctor; This model of Blood Pressure Monitor is suitable for the arm circumference range of 22-36cm or 22-42cm, and if beyond this range, you might not obtain the correct measured value of blood pressure;...
- Page 25 correct measured value of blood pressure; Do not measure the non-invasive blood pressure (NIBP) for the patients with sickle cell disease or the patients with skin injury of limb for blood pressure measurement. Please do not use mobile phone, computer,electric kettle and the other can cause interference device around the device.Please do not use the device around the magnetic field.
- Page 26 immediately after it is taken out from the place below 0℃, which should be at least placed for more than 1h in the environment at the temperature of 5 ℃ -40 ℃ and the humidity of 85%; When the ambient temperature is 20°C, the time from the highest storage temperature 55°C ，after use to the time about 1 hour or more that the equipment is ready for its intended use.
- Page 27 Do not pull the cuff forcefully or use the cuff as a rag; Do not be contaminated by the dust or corrosive liquid; Do not touch the host when measurement; Remove the battery when the product is left unused for a long time;...
- Page 28 and maintain the good performance of Blood Pressure Monitor. During blood pressure measurement, the measured limb shall be at the same level at the heart. Indoor temperature, environment, noise, subject's body position, speech or exercise might have effect on the blood pressure measurement.
-
Page 29: Question And Answer
Keep the power supply enough. After product packaging, it is allowed to use common vehicle transportation, but rain, moisture, squeezing or mechanical collision should be avoided. 13. Question and Answer Q1. Why the blood pressure measured at home is lower than that measured in hospital? The blood pressure measured at home might be 20mmHg-30mmHg (2.7kPa-4.0kPa) lower than that... - Page 30 than that measured in hospital? 1. The anti-hypertensive drugs lose the efficacy. Please accept the doctor's instructions. 2. The cuff is not twined correctly. If the cuff position is wrong, no arterial signal will be caught, and the measured blood pressure value will be higher. Please confirm whether the cuff position is correct.
- Page 31 Please make measurement in correct posture. Q3． Why I feel painful or numb due to tightening of the cuff when measurement? When blood pressure measurement, the cuff shall be tighten until the arterial blood flow is stopped temporarily. So you might feel painful or numb for a while, but it is not harmful for your body.
- Page 32 times. The first measurement will generally be higher due to nervousness or inadequate preparation, and then when the second measurement, the nervous emotion will be slightly alleviated, so generally, the second measurement will be 5mmHg-10mmHg (0.7kPa-1.3kPa) lower than the first time. This will be more obvious for those with higher blood pressure.
-
Page 33: Abnormal Phenomena And Handling

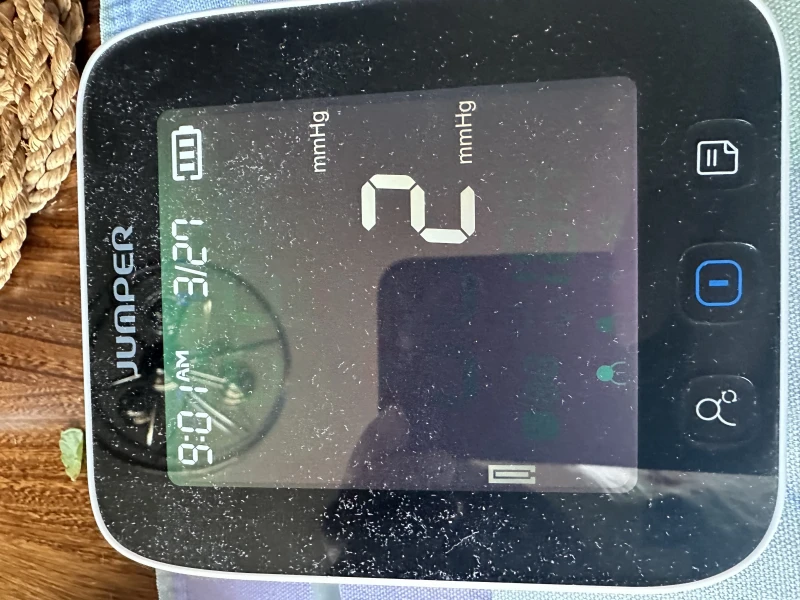

inconsistent, please purchase separately. 14. Abnormal Phenomena and Handling * When abnormal measurement, the following symbols will appear. Please use the correct method for measurement. LCD Display Information Reason/meaning SBP Display shows Err, Sensor exception. DBP Display shows 1 SBP Display shows Err, No pulse detected DBP Display shows 2 SBP Display shows Err,... - Page 34 * Troubleshooting Anomaly Inspection Items Countermeasures Replace the battery or Whether the battery insert the USB for power is insufficient There is no charging display after the Whether positive power switch is Install in the positive and negative poles pressed and negative pole of the battery are direction of battery...
-
Page 35: Cleaning And Disinfection
15. Cleaning and Disinfection (1) Cleaning: Recommended cleaning agent: Medical cleaning agent Household neutral cleaning agent Cleaning steps: 1）Remove the batteries before cleaning. 2）The body of Blood Pressure Monitor can be cleaned with a clean soft cloth. 3）The body can be wiped with a clean soft cloth stained with a small amount of neutral detergent or water. - Page 36 Sodium hypochlorite solution with 3% concentration Disinfection steps: 1）Wipe the machine body with a clean soft cloth stained with a small amount of the above disinfectant, and dry it immediately. 2）The body of the Electronic Blood Pressure Monitor can be wiped with a clean cloth stained with a small amount of 75% medical alcohol for disinfection.
-
Page 37: Upkeep And Maintenance
16. Upkeep and Maintenance - Always keep the surface of Blood Pressure Monitor clean and tidy, helpful to prolong the service life of Blood Pressure Monitor. - If the host is dirty, please wipe with a dry soft cloth. If the dirt cannot be eliminated easily, wipe with a soft cloth stained with water or neutral detergent, and then dry with a dry cloth. -
Page 38: Precautions For Keeping
17. Precautions for Keeping - Do not wipe the host and cuff with - Do not clean or moisten volatile oil, diluent or gasoline. the cuff. - Do not store the product at a place - If the Electronic Blood which has direct sunlight, high Pressure Monitor is not in temperature,... -
Page 39: Product Specifications
18. Product Specifications Product Name Electronic Blood Pressure Monitor Model JPD-HA101 Display Mode Digital display mode Measuring Mode Oscillographic method Measuring Body Upper arm Part Blood 0-295mmHg pressure value Measuring Range （0kPa-39.3kPa） Pulse Count 40-199 pulse beats/min Static Pressure value ±3mmHg（±0.4kPa）... - Page 40 batteries) 138.5mm (length) *120mm (width) * Monitor Size 63.2mm (height) Screen Size 83mm (length) *97mm (width) Upper-arm-type cuff Cuff (measured arm circumference 22-36cm or 22-42cm) Annexure Cuff, User Manual, Dry battery,Pouch High-performance dry battery can be used Battery Life for about 300 times at normal temperature Service Life 5 years Date of...
- Page 41 used properly Avoid strong impact, direct impact, exposure or rain during transportation. The packaged Blood Pressure Monitor shall be stored Transportation indoors at the temperature of -20℃~55℃ and Storage and the relative humidity of Environment 10%~93% ,atmospheric Condition： 70kPa-106k.without corrosive gas and with good ventilation.
- Page 42 The Electronic Blood Pressure Monitor is suitable for use in all establishments,including domestic establishments and those directly emissions Class B connected to the public CISPR 11 low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions N.A. IEC61000 -3-2 Voltage...
- Page 43 Portable and mobile Vrms15 0 kHz communications to 80 equipment should be Radiated RF used no closer to any 6 Vrms part of the 61000-4-3 JPD-HA101 kHz to Electronic Blood Pressure Monitor ,including outside cables, than the - 40 -...
- Page 44 recommended bandsa separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance 80MHz to 800MHz ...
- Page 45 compliance level in each frequency range Interference may occur in the vicinity of equipment marked with the following symbol: NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic is affected by absorption and reflection from structures, objects and people.
- Page 46 in these frequency ranges. c Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
- Page 47 transmitter 0.01 0.12 0.12 0.23 0.38 0.38 0.73 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter...
- Page 48 Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen ,Guangdong, China Tel: +86-755-26692192, 26696279 Fax: +86-755-26852025 Website:www.jumper-medical.com Postal Code: 518103...
