Summary of Contents for Polaris ToyotaLUXX

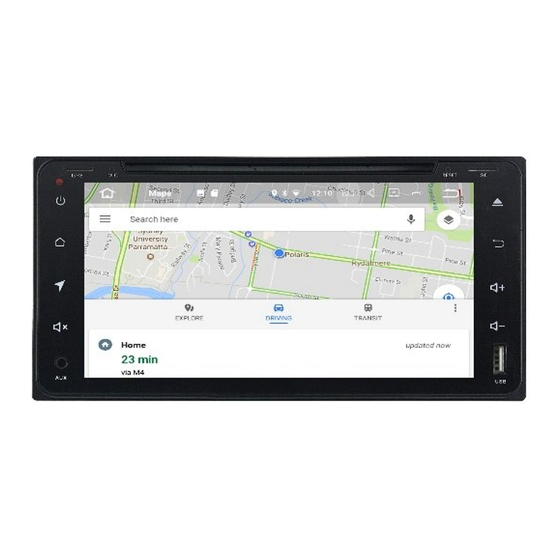

- Page 1 Installation Manual Please read this manual before installing this product. Navigation & User manual: Available to download from: www.polarisgps.com.au...
-
Page 2: Warranty Details
SD card). • The installation of 3rd party apps that may cause harm to the unit. Warranty Terms The ToyotaLUXX is covered for 3 years and includes: • Defective Equipment • Defective Cables Not Covered under warranty: •... -
Page 3: Table Of Contents
Table of Contents Warranty Details What’s in the box? Wiring Diagram & Radio Reception Installation notes Reverse Camera wiring diagram 2 camera operation wiring diagram 3 camera operation (Control box with toggle switch) Mounting the unit & Installing 3rd party apps Steering Wheel Controls 10-11 Dimensions... -
Page 4: What's In The Box
VID in / AUX L / AUX R cable. CAM in / Front CAM IN cable. 2 x USB cables / Bluetooth mic input cable. Polaris Reverse Camera with RCA adaptor. Power Harness 4 pin plug— Rear Speakers: plugs into OEM Harness 8 pin plug—... - Page 5 Wiring Diagram ToyotaLUXX wiring diagram Please see installation notes on page 6.
-
Page 6: Installation Notes
When pulling the dash apart, please use quality trim tools to avoid damaging your dash. Please do NOT cut any plugs off of any Polaris cameras. Doing so will void your warranty! If you need to blend other brand cameras into our system, please call Polaris on 1300 555 514 so we can refer you to a recommended dealer who has the skill and experience in performing this type of work. -
Page 7: Reverse Camera Wiring Diagram
Reverse Camera wiring Back of ToyotaLUXX Reversing wire (orange wire with Cam In black stripe) needs to be wired to Reverse Light positive to trigger the camera when the vehicle is in reverse. Red = 12 Volt positive Black = Ground 2 cam operation (e.g., car and caravan setup or front... -
Page 8: Camera Operation (Control Box With Toggle Switch)
Use the control box setup to plug an additional 2 cameras into the head unit when the front camera input Is already being used Figure 1 Figure 2 ToyotaLUXX Loom Connect to CAM IN on the back of ToyotaLUXX Reverse in... -
Page 9: Mounting The Unit & Installing 3Rd Party Apps
* Some OEM brackets may have to be modified in order to line the brackets up on the Toyotaluxx. For example, in some of the 79 series you will need to grind the front of the bracket off to line them up with the holes on the Toyotaluxx. -
Page 10: Steering Wheel Controls
Steering Wheel Controls Installation Even though the ToyotaLUXX is plug and play, you may still have to programme in your steering wheel controls, please see below on how to do this. Programming in your steering wheel controls Select Wheel Key study from the main menu Select and press one of your steering wheel controls. - Page 11 Steering Wheel Controls Once you have programmed all your steering wheel controls in, your screen should look similar to the one below: Short Long click click If you have made a mistake or you wish to change the functions you can press reset and start the process again.
-
Page 12: Dimensions
Dimensions 10.5cm 20.5cm 10 cm 15cm 17.5cm... -
Page 13: Returns Procedure
Thank you for purchasing a Polaris product. If you have any enquires or queries, please call Polaris on 1300 555 514. Returns Procedure The warranty on this unit is 3 years from the date of purchase. If you are having problems with this unit, please follow these steps: Please contact us on 1300 555 514 or email technical@poron.com.au as there may...
