WI - UM - T Series - 0002 2018 V3.0_EN
User Manual
T series
Solar Battery Hybrid System
Advertisement
Table of Contents
Related Manuals for Trinabess Trinahome T Series
Summary of Contents for Trinabess Trinahome T Series
- Page 1 Add: No. 2 Tianhe Road, Trina PV Park, New District, Add: Unit 60, 20 - 28 Maddox Street, Alexandria, Changzhou, Jiangsu, 213031 NSW 2015, Australia Tel: +86 519 8517 6686 Tel: +61 2 8034 6313 E-Mail: trinabess@trinasolar.com E-Mail: australia.sales@trinabess.com Japan Singapore トリナ·エナジー·ストレジー·ジャパン株式会社 Trina Energy Storage Solutions (Singapore) PTE. Ltd.
- Page 2 Preface Published by Trina Energy Storage Solutions (Jiangsu) Co., Ltd. (Trinabess) NO. 2 Tianhe Road, Trina PV Park, New District, Changzhou, Jiangsu, P.R.China. Tel: +86 519 8517 6686 Trinabess@trinasolar.com Legal Disclaimer All information in this documentation has been compiled and checked with most care. Despite of this, errors or deviations cannot be completely excluded.
-
Page 3: Table Of Contents
Content Safety Important Safety Information Safety Rules Exclusion of Liability System Description LCD Description LCD Interface and Indication Lights LCD Display Definition LCD Display Menu Definition Cloud Platform User Account Registration 4.1.1 Create New User 4.1.2 Recovery of Password 4.1.3 Logout 4.1.4 Modify Personal Password... -
Page 4: Safety
1. Safety 1.1 Important Safety Information The following operating and maintenance instructions must be read before performing system installation, operation and maintenance acitivities. 1.1.1 Before Installation Check for damage on the device and package. If you are in doubt, please contact us or the distributor before installing the device. -
Page 5: Safety Rules
1.2 Safety Rules The following warning notices are adopted in safety related guidelines to describe the various risk grade: Death or severe personal injury will occur. Electric shock! Do not open the device! Dangerous voltage may still be applied DANGER inside the device even after it has been switched off. -
Page 6: Exclusion Of Liability
1.3 Exclusion of Liability Trinabess will not be liable for any direct, indirect or consequential damages, losses or costs including without restriction any economic losses of any kind, any loss or damage to property, any personal injury, any damage or injury arising from or as a result of misuse or abuse, or the incorrect installation, integration or operation of the product. -
Page 7: System Description

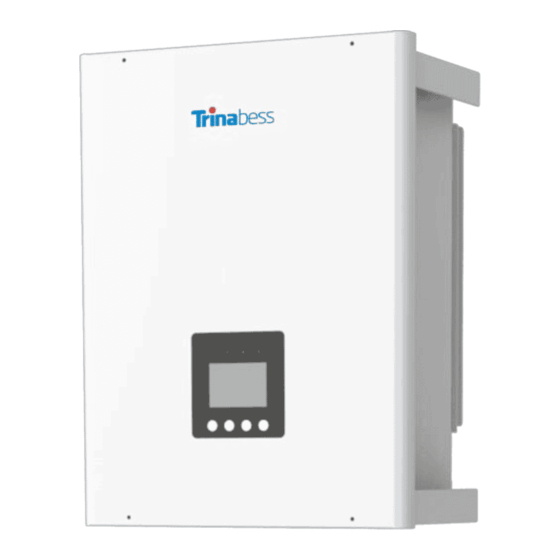

2. System Description The system includes three main parts: hybrid inverter (with integrated EMS), battery packs and energy meter. Figure 2.1 System main parts A) Hybrid inverter The hybrid inverter converts the DC power generated by PV modules to AC power. During the daytime, the PV power will be first used by the household load, then the surplus be charged into battery packs for later use. -
Page 8: Lcd Description
3. LCD Description 3.1 LCD Interface and Indication Lights All information related to the inverter can be obtained from the LCD display. There are 4 navigation keys on the LCD display panel. The functions of these navigation keys and indication lights on the LCD screen are illustrated below: Figure 3.1 LCD screen Symbol Definition... -
Page 9: Lcd Display Definition
3.2 LCD Display Definition Figure 3.2 LCD display Item Definition Time Current date and time Operating status of the inverter (Wait/Start/Normal System status /Warning/Fault/Off-grid) EIN/EOUT/EPV/ELD EIN: battery charging energy Energy EOUT: battery discharging energy EPV: PV generated energy ELD: load energy PV1 power Power of PV1 PV2 power... -
Page 10: Lcd Display Menu Definition
3.3 LCD Display Menu Definition Figure 3.3 LCD display of menu data The LCD menu includes display and setting menus. The display menu shows system parameters and their values. Users can change menu by pressing buttons to check information on the display menu. -
Page 11: Cloud Platform
User account registration should be done on the computer. The browser NOTE： must be one of the following: IE/EDGE/Firefox/Chrome 4.1.1 Create New User Visit the website portal http://cloud.trinabess.com and click “register”, then the user register interface will be displayed. Username: free to create (with 5-15 letters/figures) . -
Page 12: Recovery Of Password
4.1.2 Recovery of Password If you forgot your password, please click “Forgot password” on the login page, following windows will pop up to reset your password; Fill out your “Username” and “Email Address” and send it by clicking the button “OK”, you will now receive an email in your mailbox with your “Username”. -
Page 13: Modify Personal Password
4.1.4 Modify Personal Password Click the link , you can change your password by inputting your email. Figure 4.4 User logout User Manual Solar Battery Hybrid System (T Series) -
Page 14: Online Overview
4.2 Online Overview Figure 4.5 Online overview Item Definition Menu Bar Basic Information of Device Basic Energy Statistics Real-time System Diagram PV Power Battery Data Grid Power Load Power Inverter Data Location Language Please read for detailed information the following Chapter 4.2.1 to 4.2.5. User Manual Solar Battery Hybrid System (T Series) -
Page 15: Menu Bar
4.2.1 Menu Bar If you click these links, you can enter “System Overview”, “System Monitor” and “History” pages. Figure 4.6 Menu bar 4.2.2 Basic Information of Device Device Serial Number: serial number of the device; Capacity: maximal power of the device; Network: the connecting status of the device (Offline/Online);... -
Page 16: System Diagram
4.2.4 System Diagram It shows the current power consumption value of PV, load, battery, feed-in and grid. In addition, the detailed data of the battery and inverter is showed. Figure 4.9 Real-time system diagram 4.2.4.1 PV Power It shows the current power of the PV system. Figure 4.10 PV power 4.2.4.2 Battery Data Click the picture you will see the detail information of the... - Page 17 SOC: State of Charge; Status: Charge, Discharge, Standby; Bat Voltage: total voltage of the battery packs; Bat Current: current of the battery packs; Bat Power: total power of the battery packs; Max Cell Voltage: maximal voltage in all cells; Min Cell Voltage: minimal voltage in all cells;...
- Page 18 4.2.4.4 Load Power Display the power of all loads, including the system loss. Figure 4.14 Power of load 4.2.4.5 Inverter Data Click the picture you will see the detailed information of the inverter. Figure 4.15 Inverter data PV1 Current: current of No.1 PV system; PV1 Voltage: voltage of No.1 PV system;...
-
Page 19: Language
4.2.5 Language Click the link “Language”, you can switch among 4 languages including Chinese, English, Japanese and German. Figure 4.17 Language 4.3 Online Monitoring 4.3.1 Power Diagram Figure 4.18 Power diagram It shows the power value of PV, load, battery, feed-in and grid consumption. When the battery power is positive number, the battery is in the state of charging, otherwise, discharging. -
Page 20: History Data
4.3.2 History Data 4.3.2.1 Statistical Diagram Figure 4.19 Statistical diagram It shows the total energy of PV, Load, Battery, Feed-in and Grid consumption; Click the icon “Statistical Diagram”, to display the energy of total battery charging and discharging; In addition, when you click the button of “Export CSV” or “Export PDF” you can export data in the format of CSV or PDF;... - Page 21 4.3.2.2 Energy Diagram Figure 4.20 Energy diagram It shows the energy of PV, Load, Feed-in, Grid consumption, ESS Supply in the range of selected period. 4.3.2.3 Efficiency Diagram It shows self-consumption (Load-Consumption efficiency). It displays how much PV generation supplied for the load of the total load consumption.
-
Page 22: Download And Use App
4.4 Download and Use APP 4.4.1 IOS Search “trinabess” in the “App Store” of IOS, find and download it. Figure 4.23 Search APP in appstore Input the username and password which you have set in Chapter 4.1. Then you can enter into this APP. -
Page 23: Android
4.4.2 Android Input http://cloud.trinabess.com/TrinabestAgent/resources/app/trinabess.apk in the phone browser, or scan QR code as shown in Figure 4.25, to download the program. Figure 4.25 QR code of APP You may be prompted for security hints during the installation process, NOTE： you can click “Yes”. -
Page 24: Troubleshooting
5. Troubleshooting 5.1 Safety During Troubleshooting High electric voltage! Risk of death or personal injury by electric shock! Never work with live wires! It is prior to all connection and maintenance work. ELECTRIC Make sure that the AC and DC wires are not damaged. SHOCK! The connection area should only be opened by a licensed electrician. - Page 25 Error code Explanation Action The DC injection of grid Contact Trinabess if the error occurs current is out of range repeatedly Different value between Wait until the controller has master and slave CPU re-stabilized Different value between Wait until the controller has...
- Page 26 BMS boost current warning Restart BMS PV inverter fan locked Check fan BMS fan locked Check fan Restart PV inverter, contact Trinabess if PV inverter GFCI fault continue occur Restart PV inverter, contact Trinabess if PV inverter current-sensor fault continue occur...
- Page 27 Trinabess for service Switch off the breaker of the control SOC is lower than the warning box and contact Trinabess if the system value doesn't forced-charge the battery Cell voltage difference is larger Switch off the breaker of the control...
- Page 28 Action Charge current is larger than Switch off the breaker of the control the protection value box and contact Trinabess for service Discharge current is larger Switch off the breaker of the control than the protection value box and contact Trinabess for service...
-
Page 29: Fault Acknowledgement
The fault can only be acknowledged after the cause of the fault has been eliminated. To acknowledge the fault messages, press the “ESC” key or turn the Trinabess inverter off with the DC switch. Wait for a while and turn the device on again.
