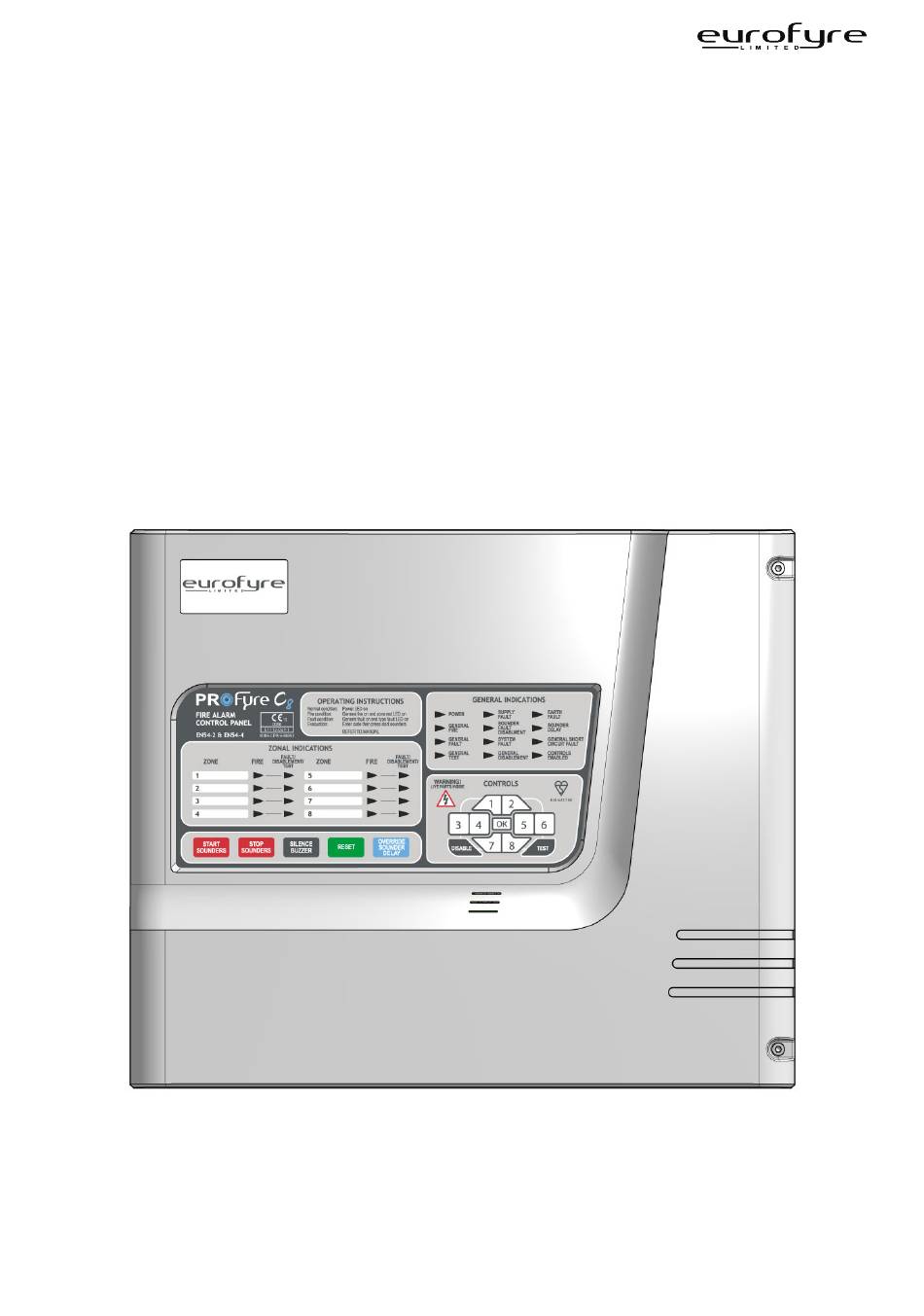

- Page 1 ProFyre C8 User & Maintenance Guide + Log Book Date: April 2019 www.eurofyre.co.uk Document: EF.C8UG Issue: 2.0...
- Page 2 This page is intentionally left blank.
- Page 3 Eurofyre or its representatives. Total Liability To the fullest extent permitted by law that any limitation or exclusion cannot apply, the total liability of Eurofyre in relation to the products is limited •...
-
Page 4: Table Of Contents
This guide is for anyone involved with the use and maintenance of a ProFyre C8 system. It is assumed that anyone using this product has the knowledge and appropriate certification from local fire and electrical authorities. - Page 5 ProFyre C8 User & Maintenance Guide + Log Book Fire Condition ............................ 11 How the ProFyre C8 Indicates an Alarm ................... 11 6.2 To Turn Off the Alarm Sounders ....................11 6.3 A Second Alarm Signal from a New Detection Zone ............... 11 6.4 Turning on the Alarm Sounders from the FACP i.e.
-
Page 6: Fire Alarm Control Panel Safety Issues
2.4 Power Supply Equipment - General Description The Profyre C8 FACP has an integral linear power supply capable of supplying 1.2 amps in total. It contains a current limited output for charging sealed lead acid batteries (7.0Ah maximum). The PSE is monitored for main supply failure, the battery not taking a charge, low battery voltage and resistance. -
Page 7: Product Approval
Product Approval The ProFyre C8 is fully approved by BSI for safe use and installation in any European Union country and bears the CE mark to show that it complies with all the applicable Directives including the CPR, EMC and the Low Voltage Directive (LVD). Please refer to Kitemark certificate KM 631788 and Certificate of Constancy or Performance 0086-CPR-644893 for further information. -
Page 8: User Responsibilities & Maintenance Of The Fire Alarm System, Including The ........................ Facp & Integral Pse
In the event of a pre-alarm, determine the cause & take appropriate action (pre-determined fire routine if the cause is the start of a fire, arrange maintenance if the cause is a contaminated detector head) (47.3). With the ProFyre C8 fire alarm panel, we recommend the following tests are carried out: Daily Inspection •... -
Page 9: Panel Indications & Controls
. To exit accessed state press three times. If the wrong code is entered three times, then the LED display will light a combination of LED’s. If this happens you will need to contact Eurofyre Limited for the code. Changing the access code... -
Page 10: Checking The Panels Indication Leds
ProFyre C8 User & Maintenance Guide + Log Book GENERAL FAULT Flashing Yellow There is a short circuit fault in the wiring of the zone indicated. ZONE FAULT Flashing Yellow GENERAL SHORT Flashing Yellow CIRCUIT FAULT GENERAL FAULT Flashing Yellow... -
Page 11: Fire Condition
How the ProFyre C8 Indicates an Alarm Figure 2: Alarm indication When the ProFyre C8 Fire Alarm Panel is set into alarm by a Detector or Manual Call Point located in a zone that is not already in alarm it will: •... -
Page 12: Fault Condition
ProFyre C8 User & Maintenance Guide + Log Book Fault Condition Different Types of Fault The fire alarm monitors itself, and any equipment connected to it, for any faults that can occur. If a fault occurs, the panel responds by activating its Internal buzzer and lighting the General Fault light and any other Fault light(s) relevant to the particular fault. - Page 13 ProFyre C8 User & Maintenance Guide + Log Book Short Circuit Fault If the fault is a short circuit fault, then the S/C LED will be flashing. This S/C LED will be flashing for S/C faults on the zone and sounder circuits. It can take up to 60 seconds from repairing a fault for the display to clear.
-
Page 14: What To Do If A Fault Condition Occurs
On the ProFyre C8 panel, the fault indications (except system fault) are non latching. That is, when the fault has been cleared, the fault indication will turn off. When all faults have been cleared, the panel will return to its quiescent (normal) condition. -
Page 15: Disablements
ProFyre C8 User & Maintenance Guide + Log Book Disablements Reasons for Disabling Certain Parts of a Fire Alarm System Certain parts of this Fire Alarm Panel can be temporarily disabled (i.e. switched off) to suit prevailing conditions. For example, if there is a risk of a false alarm in a zone, for example, from vehicle exhaust smoke in a loading bay, it is possible for the user to disable that zone during the risk period and then enable it again afterwards. -
Page 16: Sounder Delays
9.2 Sounder Delay Setting On the ProFyre C8 panel, the sounder delay can be programmed on zones 2 – 8 (zone 1 cannot have a delay). That is, all zones will be delayed by the same amount. The delay can be set between 1 minute and 10 minutes, or the delay can be left off (sounders activate immediately). Changing the delay time should only be done by the engineer responsible for setting up the system. -
Page 17: Zone Test
ProFyre C8 User & Maintenance Guide + Log Book 10 Zone Test 10.1 Why use Zone Test To aid commissioning and assist routine maintenance checks, a non-latching ‘One Man Test’ facility is available. When a detector or manual call point is triggered on any zone in test, the alarm sounders operate for approximately 5 seconds on and 5 seconds off. -
Page 18: System Description
ProFyre C8 User & Maintenance Guide + Log Book System Description Fire Alarm System Summary Fire Zone Summary Zone Description Zone No. Sounder Qty MCP Qty Detector Qty A brief description of all the rooms and areas contained in each zone. -
Page 19: Fire Alarm Log Book
ProFyre C8 User & Maintenance Guide + Log Book 12 Fire Alarm Log Book It is recommended that this log book section of the Use Guide be maintained by the responsible person(s) on site, who should ensure every event is properly recorded (including fire alarm conditions, failures, tests, temporary disconnections, disablements, enablements, dates of installing engineers visits together with a note of any outstanding work or panel conditions). - Page 20 ProFyre C8 User & Maintenance Guide + Log Book Date Time Zone / Location Reason for Work Works Carried Out Additional Work Required Signed Unwanted (False) Alarms Cause (if Maintenance Known) or Maintenance Category of Further Action Date Time Zone / Location...
- Page 21 ProFyre C8 User & Maintenance Guide + Log Book Cause (if Maintenance Known) or Maintenance Category of Further Action Date Time Zone / Location Visit Needed Signed Activities in Findings False Alarms Required (Yes/No) Alarm Area All other events other than maintenance works or unwanted alarms...
- Page 22 ProFyre C8 User & Maintenance Guide + Log Book Details of Event (Including Cause Date Date Time Zone / Location Action Required Initials if Known) Completed Page 22 www.eurofyre.co.uk...
-
Page 23: Commissioning The System, Including Power Supply Equipment
ProFyre C8 User & Maintenance Guide + Log Book Commissioning the System, Including Power Supply Equipment • The commissioning of this fire alarm system should be performed by a qualified commissioning engineer, who has an understanding of sections 2, 3, & 4 of BS 5839 Pt 1:2017 (i.e. design considerations, limitations of false alarms and installation recommendations). -
Page 24: Design Certificate
ProFyre C8 User & Maintenance Guide + Log Book Design Certificate Certificate of design for the ProFyre C8 fire alarm system installed at: Address I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the design of the fire alarm system, particulars of... - Page 25 ProFyre C8 User & Maintenance Guide + Log Book A time-related system has been specified. Details: Fire signals from automatic fire detectors result initially in a staff alarm, which delays a general alarm / transmission of signals to an alarm receiving centre (delete as applicable) for minutes.
-
Page 26: Installation Certificate
ProFyre C8 User & Maintenance Guide + Log Book Installation Certificate Certificate of installation for the ProFyre C8 fire alarm system installed at: Address I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the installation of the fire alarm system, particulars... -
Page 27: Commissioning Certificate
ProFyre C8 User & Maintenance Guide + Log Book Commissioning Certificate Certificate of commissioning for the ProFyre C8 fire alarm system installed at: Address I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the commissioning of the fire alarm system, particulars of which are set out below, certify that the said work for which I/we have been responsible complies to the best of my/our knowledge and belief with the recommendations of Clause 39 of BS 5839-1:2017, except for the variations, if any, stated in this certificate. - Page 28 ProFyre C8 User & Maintenance Guide + Log Book The following potential causes of false alarms should be considered at the time of the next service visit: Before the system becomes operational, it should be soak tested in accordance with the recommendations of Clause 35.2.6 of BS 5839-1:2017 for...
-
Page 29: Acceptance Certificate
ProFyre C8 User & Maintenance Guide + Log Book Acceptance Certificate Certificate of acceptance for the ProFyre C8 fire alarm system installed at: Address I/we being the competent person(s) responsible (as indicated by my/our signatures below) for the acceptance of the fire alarm system,... - Page 30 Back Page...
