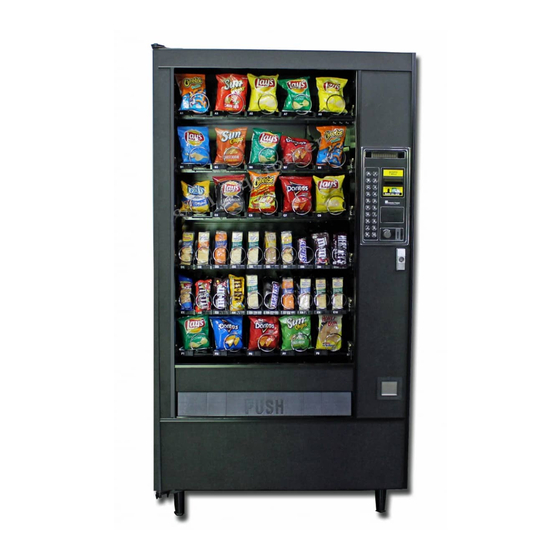

  • Page 1 SNACKSHOP 113 SNACKSHOP 113 SNACKSHOP 113 instruction manual for SNACKSHOP 75 WEST PLATO BOULEVARD • ST. PAUL, MINNESOTA 55107-2095...
  • Page 2 APi. Snackshop 113 has been designed from superior engineering and with quality throughout. It has been built of rugged construction for many years of reliable trouble-free operation. (Note: For indoor use only.) To achieve the most economical trouble-free operation from your Snackshop 113, it is recommended that this service manual be thoroughly read and instructions followed pertaining to all loading and servicing, etc., of the...

  • Page 3: Table Of Contents

    table of contents Page WARRANTY ....................................i AP 110 SERIES TRAINING ..............................iii CAPACITIES ..................................1-2 UNPACKING ..................................3 INSTALLATION ..................................3-6 COMPONENTS 1. Power Supply ................................7 2. Changers ..................................7 3. Coin Mech Inventory ..............................7 4. Mode Switch ................................7 5. Operate Mode ................................7 6. Control-Service Mode ............................7-10 7.

  • Page 5: Capacities

    capacities...

  • Page 6: Capacities

    capacities...

  • Page 7: Unpacking

    The Snackshop 113 is assembled and packed so that a mini- located just behind the front legs, then open the door on the mum amount of time is necessary for preparation to install it on vendor and remove the hold down bracket at the front center location.
  • Page 8 installation 4. L OADING SNACK SHELV E S : Open door to full open REMOVAL OF SPIRAL: Grasp the front of the spiral and turn it position, push down on white plastic lock lever (Figure 1)to clockwise. Lift the spiral up and off of the spiral lock.When replac- unlock shelf, holding both levers down.
  • Page 9 installation PRODUCT SPACERS—5 SELECTION SHELF: A product spac- These spirals are removed and installed the same as the large er is used to reduce the width of the product area and should be spiral (see Figure 3), except that the front end position is different used on any 5-selection snack shelf where the product width is (approximately 5 o’clock) (see Figure 5) and the front left side of 41/2'' or less.

  • Page 10: Installation

    installation Figure 7. LOCATION OF PRODUCT PUSHER ON SPIRAL. Figure 8. FOLD BAGGED ITEMS BOTTOM 10. BAGGED OR BOXED ITEMS in the 10-selection shelves EDGE FORWARD AND UP. if not loaded properly could be a problem. The sealed edge of the bag may get under the spiral wire causing the product to hang up after it has been vended.

  • Page 11: Components 1. Power Supply

    2.CHANGERS This switch will allow three modes of operation – operate (normal The Snackshop 113 can use a variety of either Mars or Coinco mode), control & service mode, and price setting mode. changers. The machine is wired for either 24 volt or 115 volt mod- 5.OPERATE MODE...
  • Page 12 components selection is made the amount on the digital display will deduct the English #4 #10 #1 French #4 #10 #6 price of that selection.At this time the total cash will be displayed German #4 #10 #2 Danish #4 #10 #7 of the amount left of that dollar so that another selection may be Spanish #4 #10 #3...
  • Page 13 components components (Example: for U.S. Dollars, the value is 100.) Note that the credit price per selection to occur. The start time is set on a 24 hour is incremented by the entered value for each pulse coming from (military) basis starting with 00:00 as midnight (Example: 1:00 the bill acceptor.

  • Page 14: Price Set Mode

    components clearing the time periods, press “K”to return to the service mode Display Shows: and lock in the information. “0” meaning “OFF” “1” meaning “ON” Step #2 – Press mode switch once (control board) to access the price set mode. The display will show “PR”. Press the button “K” which will access you into the product code setting.

  • Page 15: Selection Panel

    B etc.If no discount has been set, then the normal vend price will be displayed. 9.SELECTION PANEL The selection panel (see figure 10) on the Snackshop 113 incor- porates that use of a self enclosed membrane switch panel.This eliminates the need for individual switches and wiring.The mem- brane switch panel is housed in a stainless steel panel with indi- vidual buttons protecting the switch face.

  • Page 16: Chilled Air Machine

    #4 position. cleaning The Snackshop 113 will do the best merchandising job for you The main product shelves can be best cleaned with the spirals if it is kept clean.The display window can be cleaned with any and product spacers removed.

  • Page 17: Door-Outside Front

    door - outside front...

  • Page 18: Door-Outside Front

    door – outside front Item Item Part No. Description Part No. Description 340044-9 Top Trim Vantage. 202061-42 Panel, Right Side Vertical.Lower. Sterling Royce 201690-2 Top Trim Insert. True Grit Black. 202061-38 Panel, Right Side Vertical. Lower. White. 201690-15 Top Trim Insert. Dark Gray 202061-40 Panel, Right Side Vertical.
  • Page 19 door - inside front...
  • Page 20 door – inside front Item Item Part No. Description Part No. Description 600600 Door Only. Specify Color. 600600-1 Door Only. European Style. Specify Color. 201384 Bottom Window Clamp. 600600-2 Door Only. With Validator Hole And Debit 202118 Window Clamp. Lock Side. Card Use.

  • Page 21: Cabinet

    cabinet...
  • Page 22 cabinet Item Item Part No. Description Part No. Description 750100-4 Cabinet Assembly Complete. With Legs. 404-6 Nut, Hex Hd. (6-32) Specify Color. (113) 380303 Assembly, Line Filter. 750100-5 Cabinet Assembly Complete With Legs 660492 Assembly Complete. Light Ballast & Filter. Specify Color.
  • Page 23 cabinet...

  • Page 24: Cabinet

    cabinet Item Item Part No. Description Part No. Description 750100-4 Cabinet Assembly Complete. With Legs. 600648 Assembly Cash Box Mounting. (113) Specify Color. 600179-1 Cash Box. 750100-5 Assembly Complete. With Legs 201453 Gum & Mint Tray Catch. (113 M) Specify Color. 437-41 Nut, Keps (1/4 - 28).

  • Page 25: Swing-Out Panel Assembly

    swing out – panel assembly...

  • Page 26: Swing-Out Panel Assembly

    swing out – panel assembly Item Item Part No. Description Part No. Description 660446 Assembly Complete, Swing Out Panel. 202708 Adaptor Bracket CBV (Not Shown). 660371 Debit Card Filler Assembly. Black. 600614 Panel Only. 680310 Door Operate Switch Harness. 460425 Debit Card Decal Only.

  • Page 27: Snack Shelf

    snack shelf...

  • Page 28: Snack Shelf

    snack shelf Item Item Part No. Description Part No. Description 750121-3 Assembly Complete Snack Shelf w/o Spirals 600601 Shelf Plug.Bracket Only. 750162 Assembly Complete. Dual Snack Shelf w/o Spirals. 420142-2 Pin Drive. 600240-3 Snack Shelf Only. 660435-2 Assembly Complete. Harness and Plug Bracket. 750159 Kit, Dual Spiral Add-On.

  • Page 29: Candy Shelf

    candy shelf...

  • Page 30: Candy Shelf

    candy shelf Item Item Part No. Description Part No. Description 750122-3 Assembly Complete. Candy Shelf w/o Coils. 660178 Assembly, Candy Spacer. 750122-6 Assembly Complete. Candy Shelf w/o Coils. 276-8R6 Screw Pan Hd.Self Tap (8-32 x 3/8). 9 Selections. 600601 Shelf Plug, Bracket Only. 600239-2 Candy Shelf Only.

  • Page 31: Convertible Shelf

    convertible shelf...

  • Page 32: Convertible Shelf

    convertable shelf Item Item Part No. Description Part No. Description 750147-6 Assembly Complete. Convertible Shelf. 460347-12 Price Tabs. All $1.40 - $1.45. (5 Snack Selections).W/o spirals. 460347-13 Price Tabs. All $1.50 - $1.55. 750147-7 Assembly Complete. Convertible Shelf. 460347-14 Price Tabs. All $1.60 - $1.65. (4 Snack Selections and 2 Candy).W/o spirals.

  • Page 33: Gum & Mint Shelf

    gum & mint shelf...

  • Page 34: Gum & Mint Shelf

    gum & mint shelf Item Item Part No. Description Part No. Description 660316 Assembly Complete. Gum & Mint Shelf. 305-7R22 Screw, Pan Hd.Plastite (#7 x 1-3/8). 660316-3 Assembly Complete. Gum & Mint Shelf, 680305 Harness, Gum and Mint Shelf. Export Only. 660340 Harness, Gum and Mint Shelf.

  • Page 35: Delivery Bin

    delivery bin...

  • Page 36: Delivery Bin

    swing out – panel assembly delivery bin Item Item Part No. Description Part No. Description 660558 Delivery Bin Assembly. Complete. Black. 440129 Door Bearing. 660558-2 Delivery Bin Assembly. Complete. Gray. 420282 Bin Door Washer (Not Shown). 600704 Delivery Bin. 200763 Inner Door.

  • Page 37: Main Junction Box

    main junction box...

  • Page 38: Main Junction Box

    main junction box Item Item Part No. Description Part No. Description 660489 Assembly Complete, Junction Box. 680452 Changer Harness. U.S. 110 Volts. 680516 Changer Harness (L+). 660489-2 Assembly Complete, Junction Box. 276-6R6 Screw Pan Hd.Phil. Type 23 (6-32 x 3/8). 220 Volts.

  • Page 39: Chill Machine Supplement

    chill machine supplement...
  • Page 40 chill machine supplement Item Item Part No. Description Part No. Description 660451 Assembly Complete. Cabinet & Insulation Only. 460468 Gasket. Order by Inches. Model 113. Specify Color. 202145 Right Retainer. 276-8R6 Screw, Pan Hd.Phillips (8-32 x 3/8). 202144 Left Retainer. 202404 Air Duct Top Support -113.
  • Page 41 chill machine supplement...

  • Page 42: Chill Machine Supplement

    chill machine supplement Item Item Part No. Description Part No. Description 660447-1 Assembly Complete. Power Interconnect Box. 360182 Cold Control Switch. Export & U.S. 380252 Receptacle W/Ground. Snap In. 660486 Assembly Complete. Power Interconnect Box. Export. 276-8R6 Screw, Pan Hd., Type A, Phillips (8-32 x 3/8). 660514 Assembly Complete.
  • Page 43 AP II style Item Part No. Description 340044-5 Trim, Top, For use wNinyl Insert. 440258-2 Insert Top Trim “Snacks”. 440285-3 Insert Top Trim “Cigarettes”. 340057 Trim, Outside Vertical (Right or Left). 340058-2 Trim, Inside Vertical.(Right or Left). PANEL, LEFT SIDE VERTICAL. 202059 Presidential Walnut, Vinyl.

  • Page 44: Cover-Up Plate 3

    Cover-up plate 3 Item Item Part No. Description Part No. Description 660231-3 Trim, Horizontal w/Black Stripe. PANEL, COVERPLATE 3". 201417 Presidential Walnut, Vinyl. 201417-4 Regency Walnut, vinyl. 201417-5 Honeytone Teak, Vinyl. 201417-6 Painted, Specify color. 201417-21 Dove Gray. 340057 Trim, Outside Vertical (Right or Left). 340058-4 Trim, Inside Vertical (Right or Left).

  • Page 45: High Tech Style

    high techstyle Item Part No. Description 340042-3 Trim, Top Only. Use only Vinyl Insert. 201260 Vinyl Insert, Top Trim, Sterling Royce Vinyl. 340057-2 Trim, Outside Vertical (Right or Left). 340058-7 Trim, Inside Vertical (Right or Left). PANEL, LEFT SIDE VERTICAL. 202059-9 Sterling Royce Vinyl.

  • Page 46: Tron Ii Style

    tron II style 113 Item Item Part No. Description Part No. Description 340055-9 Trim Horizontal, Top & Bottom, Black. 201417-2 Cover Up Plate, Galvanized. 440312-1 Top Insert, Black. 660231-3 Trim, Horizontal w/Black Stripe. 340057-2 Trim, Outside Vertical, Left or Right, Black. 340058-8 Trim, Inside Vertical, Left or Right, Black.
  • Page 47 genesis styling 113 Item Item Part No. Description Part No. Description 340042-8 Top Trim Only. 200526-1 Panel, Top Trim. Black Hyde. 340057 Trim, Outside Vertical.Silver. 202059-42 Panel, Left Side Vertical.Black Hyde. 340058-6 Trim, Inside Vertical. Black. 340058-5 Trim, Horizontal Window. Black. 201356-3 Panel, Delivery Tray.

  • Page 48: Connectors

    Connectors 4 PIN INTERNATIONAL MOLEX 4 PIN INTERNATIONAL MOLEX PLUG R E C E P TAC L E 3 8 0 2 9 6 3 8 0 2 9 3 3 PIN INTERNATIONAL MOLEX PLUG 3 PIN INTERNATIONAL MOLEX FREE HANGING - 380286 R E C E P TAC L E PANEL MOUNT - 380286-1 3 8 0 2 8 8...

  • Page 49: Mis Printouts For 110 Series Snack

    mis printout for 110 series snack COMMENTS REPORT DATE 09/23/94 Special notes or Service Mode For Access in BOLD REPORT TIME 09:05 Eight digit machine ID number - Mode Service 0300 ID101 12345678 Number of electronic audits EA301 Number of Audit Resets EA203 Cash Meter, all vends - Mode Service 8 VA101...

  • Page 50: Troubleshooting

    trouble shooting chart Problem Cause Remedy No power No lights Check wall outlet for correct wiring, and line cord. See page 3. Lights work - no power Check transformer outputs to board & circuit breakers No power to the board Check wiring connections Defective power board Replace power board...
  • Page 51 trouble shooting chart Problem Cause Remedy Says make another selection Motor ⁄ cycled Home motor and retry /LCM do mode 5 test vend Selection lost its price Reset prices Motor won't turn Swap shelves with another shelf and retry Check shelf harness connection to board Check 24VAC to logic board (blue wires 110) /white wires...

  • Page 52: Troubleshooting

    trouble shooting chart Problem Cause Remedy Unable to enter service mode Check plugs on control board Power down and remove and install connectors Defective changer Replace changer Defective main board Replace board Coin mechanism jackpots Incorrect voltage Check voltages± 10% Defective coin mechanism Replace coin mechanism Defective board...

  • Page 53: Connector Pinouts

    connector pinouts P1 POWER IN P6 - BILL VALIDATOR 1 24 VAC HOT 1 ESCRCW HIGH 2 KEY 2 $1 HIGH 3 24 VAC NEUTRAL 3 $2 HIGH 4 7.0 VAC HOT 4 $5 HIGH 5 7.0 VAC NEUTRAL 5 ESCROW ENABLE (LOW) 6 4.7 VAC HOT 6 $ ENABLE 7 4.7 VAC NEUTRAL...
