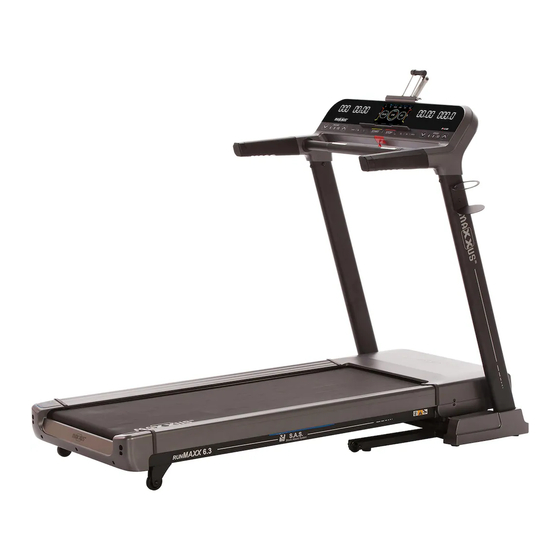

Maxxus RunMaxx 6.3 Installation & Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Treadmill
MAXX 6.3
RUN
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RunMaxx 6.3 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxxus RunMaxx 6.3

Summary of Contents for Maxxus RunMaxx 6.3

  • Page 1 Treadmill MAXX 6.3...
  • Page 2 Maxxus Group GmbH & Co. KG. Errors, colour and technical modification subject to change, reproduction as well as electronic duplication only with written permission of MAXXUS Group GmbH & Co. KG.

  • Page 3: Safety Instructions

    Safety Instructions Before you start exercising, be sure to read the entire user guide, especially the safety information, the maintenance & cleaning infor- mation and the training information. Take care too that everyone who uses this training device is also familiar with this information and observes it.

  • Page 4: Scope Of Delivery

    Overall View of the Device Cockpit Tablet PC holder Handrail Drink holder Hand pulse sensors Side frame Motor housing Running deck Tread Scope of Delivery Part Description Quantity Part Description Quantity Main Frame Handrail, right Cockpit Safety Key Tablet PC Holder Frame Cover, left Drink Holder Frame Cover, right...
  • Page 5 Assembly Carefully unpack all components. Two people are required, because some parts of your exercise machine are bulky and heavy. Check that you have all of the fastening material (screws, nuts, etc.) and the components be- fore starting the assembly steps. Take great care with the installation as damage or defects caused by assembly errors are not covered by the warranty or guarantee under any circumstances.
  • Page 6 Assembly Step 2 - Mounting the cockpit frame: Connect the cable (D04) protruding from the top of the right side frame to the cable (D03) protruding from the right of the cockpit frame (B). Then place the cockpit frame (B) in the side frames from the top (A06 / A07). ATTENTION: Make sure that you do not squeeze or damage the cables.
  • Page 7 Assembly Step 4 - Assembly of the handrails Insert the left handrail (C05) on the left side of the cockpit frame (B) and secure it from below using two M5x12 pan head screws (E22) and two Ø5xØ13T1.0 washers (E39). Now do the same with the right handrail (C06). Step 5 - Mounting the side covers Insert the left side cover (C14) into the main frame (A) and press firmly.
  • Page 8 Assembly Step 7 - Inserting the Safety Key Insert the safety key in the cockpit (B). Cut and remove the transport strap (P). Step 8 - Remove the second transport lock Loosen and remove the hexagon socket screw M8x15 (E13) with the steel cable (E) on the main frame (Located as shown).

  • Page 9: Hydraulic Cylinder

    Folding Mechanism Hydraulic Cylinders The folding mechanism relies on a hydraulic cylinder. This is filled with oil under high pressure. Should a cylin- der be damaged, the safe folding of the tread is no longer guaranteed. If damaged, the hydraulic cylinder must be replaced before raising the tread again.
  • Page 10 Folding Mechanism Fold down the tread Step 1: Hold the back of the tread firmly with both hands. Press the safety lever of the lock system down with your foot to release the lock. Pull the tread gently down. Step 2: The tread is equipped with a soft-fold system.

  • Page 11: Mains Cable

    Mains Cable Mains cable Connect the plus of the mains cable to the corresponding coupling on the treadmill. Then connect the power cord to a power outlet. The device may only be connected to an earthed socket installed by professional installers.

  • Page 12: Safety Key

    Safety Key Safety Key The operation of the treadmill is only possible when the safety key is correctly in the contact point in the cockpit. If the safety key is removed from the contact point the treadmill stops automatically. Before every training, make sure that the safety key is firmly attached to your clothing by the string and clip.
  • Page 13 Care, Cleaning & Maintenance WARNING Before you perform any care, cleaning, maintenance, repair or similar work on your training device, turn off your exerciser and remove the power cord. Check before starting the planned work that your exerciser is completely disconnected and switched off.

  • Page 14: Lubricating The Treadmill Belt

    To lubricate the belt optimally take the MAXXUS care oil bottle, remove the regular screw cap (Fig 1) and then insert the screw cap with tube (Fig 2). Before you lubricate the belt, make sure that the treadmill is off and the running belt has stopped.

  • Page 15: Adjusting The Treadmill Belt

    If the belt is centred again, the adjustment is correct. If not, repeat the steps described under 2.1 and 2.2 until the belt runs in the middle. If the belt can not be adjusted, please contact the Maxxus service department. If the alignment of the running belt has shifted so far that it rubs on one of the two side treads malfunctions and defects to the treadmill occur.
  • Page 16 Cockpit Tablet PC support Incline/Calories Time Distance Speed/Pulse TFT Colour Screen Display of the current slope Display of energy consumption in calories * Note on calorie measurement The calculation of the energy consumption is done by means of a general formula. It is not possible to determine an individual energy consumption exactly because this requires a lot of personal data.

  • Page 17: Stop Function

    Cockpit Button to select training presets and to select the manual training programs and the competition MODE programs. START Button to start the selected program or the Quick Start function Pause function Pressing the STOP button once while exercising will stop the treadmill. The cockpit switches to pause mode and the display shows “PAU”.
  • Page 18 This chest strap must be on the 5 KHz frequency and uncoded. MAXXUS® recommends the use of a POLAR® T34 transmitter chest strap. The use of Bluetooth chest straps is not possible. Please also read the chapters “Heart Rate Monitoring using a Chest Belt” and “Warning about Pulse &...
  • Page 19 Cockpit Manual training In this type of training, the user sets a goal before training. The chosen value shows when the count- down starts to run backwards at the beginning of training. Step 1: Program selection. Turn on the treadmill and press the MODE button once. Step 2: Selection and specification of the training goal Step 2.1: Specification of the training time The value “15:00”...
  • Page 20 Cockpit Training profiles P01 - P24 With this type of training, the user has 24 preset, permanently installed training profiles. Each profile consists of 10 segments. The total training time set by the user determines on the duration of the segments (training time:= 10 x time per segment).
  • Page 21 Cockpit Segment Programm SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
  • Page 22 Cockpit Free Memory Slots User 1 to 3 There are three free memory spaces available in which the user can create their own training profiles and save them permanently Step 1: Program selection. Switch on the treadmill and select the desired program User 1 to User 3 by pressing the PROG button. Step 2: Specification of the training time The value “10:00”...
  • Page 23 Cockpit Heart rate controlled programme - Heart programme 1 & 2 These programmes are heart rate controlled exercise programmes. The user specifies a target heart rate. This is continuously compared with the actual heart rate of the user from the cockpit. If the actual heart rate is slower than the target heart rate, the treadmill automatically increases the speed.
  • Page 24 Cockpit Determination of body mass index Step 1: Program Selection Switch on the treadmill and press the PROG button as often as necessary until the following graphic appears in the TFT display: Step 2: Gender Input The value for the user sex is highlighted in blue. Enter the user gender Male / Female by pressing the SPEED or INCLINE buttons.
  • Page 25 Password max_mustermann max@mustermann.de RunMAXX 6.3 Note: Please note that we provide only general instructions for using the device with an APP. For specific advice on the App and / or the Smartphone or tablet PC you are using, please contact your supplier directly Playback of an audio source This exercise device has two options to play back an audio source over the built-in cockpit speaker.
  • Page 26 Cockpit 1. Connecting a USB stick with audio files via the USB port USB sticks up including USB 2.0 can be directly connected to the exercise device using the USB port located on the cockpit top. To start this type of audio playback, press the button at any time before or during a training session.

  • Page 27: Heart Rate Monitoring

    Heart Rate Monitoring 100% of maximum heart rate of maximum heart rate of maximum heart rate of maximum heart rate Calculating your personal heart rate when training Calculate your personal heart rate when training as follows: 220 - Age = maximum heart rate This value represents your maximum heart rate and serves as a basis from which to calculate your personal training heart rate.
  • Page 28 Heart Rate Monitoring using a Chest Belt A large number of MAXXUS® training devices are fitted with a wireless receiver as standard. The use of a chest belt (we recommend the exclusive use of an uncoded POLAR® chest belt) allows you to wirelessly measure heart rate.

  • Page 29: Training Recommendations

    Training Recommendations Preparation Before Training Before you start training make sure that not only your training device is in perfect condition, your body must also be prepared for training. Therefore, if you have not done any endurance training for some time, you should con- sult your GP and undergo a fitness check-up.
  • Page 30 Training Recommendations Hydration Adequate hydration is essential before and during exercise. During a training session of 30 minutes it is possible to lose up to 1 litre of liquid. To compensate for this fluid loss apple spritzer mixed in the ratio of one-third apple juice to two-thirds mineral water is ideal since it contains electrolytes and minerals to replace those that the body loses through sweat.

  • Page 31: Technical Details

    Only dispose of batteries when they are empty. Recommended accessories These accessories are the perfect supplement for your training device. All products are available in our online shop at www.maxxus.de or directly in our showroom in Gross-Gerau. POLAR® Transmitter chest strap T34 Chest strap for determining the heart rate with optimized transmission rang- es.

  • Page 32: Exploded Drawing

    Exploded Drawing...
  • Page 33 Exploded Drawing...

  • Page 34: Part List

    Part List Part Description Type Part Description Type Part Description Type Right side rail cap Bottom frame Foam Main frame Running belt Incline frame Top cover of the pulse Monitor frame Bottom cover of the pulse Handlebar pulse frame Motor belt Left column Black cushion f20*f6.5*30...
  • Page 35 Part List Part Description Type Part Description Type Magnet core Lock washer Power cable Lock washer Non-locked nut Spring washer Lock nut Flat washer Lock nut Big washer ϕ10*ϕ26*2.0 Bolt M10*90 Wave washer Φ15*ϕ8.2*0.5 Bolt M10*45 Bolt M8*45 Bolt M10*30 Big flat washer ϕ5*ϕ13*1.0 Bolt...

  • Page 36: Warranty

    The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased direct- ly from the MAXXUS Group GmbH & Co KG or one of the MAXXUS Group GmbH & Co KG direct and authorised distribution partners.
  • Page 37 Notes...
  • Page 38 Notes...

  • Page 39: Repairs Contract / Notification Of A Damage Claim

    I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled immediately.
  • Page 40 Maxxus Group GmbH & Co. KG Zeppelinstr. 2 D-64331 Weiterstadt Germany E-Mail: info@maxxus.de www.maxxus.de...
