KING H30 Series Instructions

H30 & HP30 Series
2 Circuit Control
DANGER
!
ELECTRIC SHOCK OR FIRE HAZARD
READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND SAFETY
DATA TO AVOID PROPERTY DAMAGE AND PERSONAL INJURY
GENERAL INFORMATION:
This thermostat is designed to provide the best room temperature control for residential heating. For use on 120 / 208 / 240 Volt AC or up to 30 Volts DC and a
total of 16 Amps per pole and controls two electrical circuits at the same time.
Be safe and smart! Electricity can cause severe injury or death if not treated with respect and caution.
This thermostat will provide years of comfort control for your family in use with electric heaters that need a two circuit control.
OPERATION:
This precision electronic thermostat uses a very sensitive thermistor near the bottom to sense room air temperature, sending the information on to the
microprocessor. As the temperature drops, the information sent will indicate if heat is needed. To reduce any undesirable fast on/off cycles, the processor has a
built-in delay, up to 3 minutes. This saves energy and provides the best temperature control of an area. The thermostat will control two circuits of heaters until
the room reaches temperature, then shutting off waiting for the room temperature to drop again.
This thermostat requires batteries and will have a one minute back-up when replacing old batteries. HP only: The default program setting is 62°F set back,
70°F set up and a standard work week timing when powered up. The day and time of day can be adjusted by selecting the TIME position and using the
arrow keys. For temperature override, the
programming.
The thermostat may take a few hours to stabilize to the room temperature; Do not be alarmed when the thermostat does not show the correct temperature
immediately after installation.
INSTALLATION:
This line voltage device should be installed and serviced by a qualified electrician. The thermostat has been designed to mount to a standard 2" x 4" electrical
outlet box. Leveling of the thermostat is not required. #6-32 Phillips head mounting screws are provided and captive ready to install.
Mount the thermostat in an open area about 5 feet above the floor, avoiding outside walls as they are too cold and will inhibit the thermostat's performance. A
good rule of thumb is to place the thermostat above the wall switch for that room. This works well for most bedrooms, making it very convenient to turn the heat
lower upon leaving. Avoid mounting the thermostat where there may be plumbing pipes in the wall, or placing a lamp or TV too close to the thermostat. Heat
from such items negatively effects the thermostat's performance.
DIFFERENTIAL:
This thermostat has a user adjustable differential between 1° and 4°. Press HOLD and the temperature
seconds. Then press the up or down to adjust the differential. You can experiment with different settings until you find the one that best controls your space.
Suggested settings are in the programming instructions.
CAUTION: More than one circuit breaker feeds this device. Turn off both before installing or sevicing.
KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: 206.763.7738 · www.king-electric.com
SAVE THESE INSTRUCTIONS
GENERAL INFORMATION
CAUTION: More than one circuit breaker
feeds this device. Turn both off before servicing.
!
Up arrow increases temperature and the

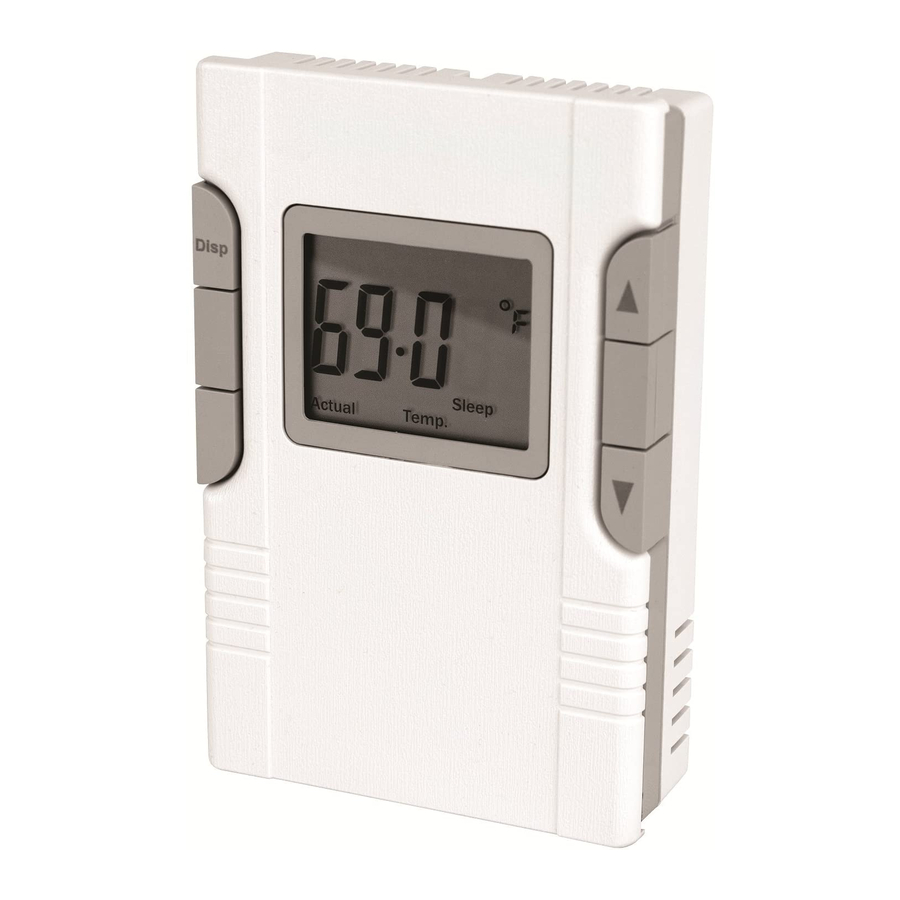

HP SHOWN
HEAT ON INDICATOR
Heater On
LOW BATTERY INDICATOR
RESET: BACK TO PRESETS
+
LO
RUN: DAY AND TIME
*HOLD BUTTON:
RUN PROGRAM /
HOLD TEMPERATURE
TAMPERPROOF
KEY LOCK
BATTERIES
COVER FOR BATTERIES
*HP model only
Down arrow reduces temperature without any need to readjust the
SPECIFICATIONS:
Temperature range: 40° to 93°F
Temperature Default: Program
Display Format: Liquid Crystal Display (LCD)
Display size: Large Format
Sample Rate: Every 60 seconds
Delay on: 1 second for relay 2
Heat indicator: LCD "heater on"
Relay Rating: 16 Amps per relay
Relay: AA battery powered
Accuracy: ± .9°F
Maximum Amps: 16 resistive or inductive
Maximum Watts: 7700 @ 240V
6656 @ 208V
3840 @ 120V
Minimum Watts: 0
Power Supply: 1 to 240 Volts AC
1 to 30 Volts DC
Up and Down arrows at the same time for 5
H30-HP30 information.ai : 5/07
