INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS
Y-FILTER
83700
Original Manual
11.106.30.02EN
(0) 2019/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 83700 and is the answer not in the manual?

Questions and answers

Summary of Contents for INOXPA 83700

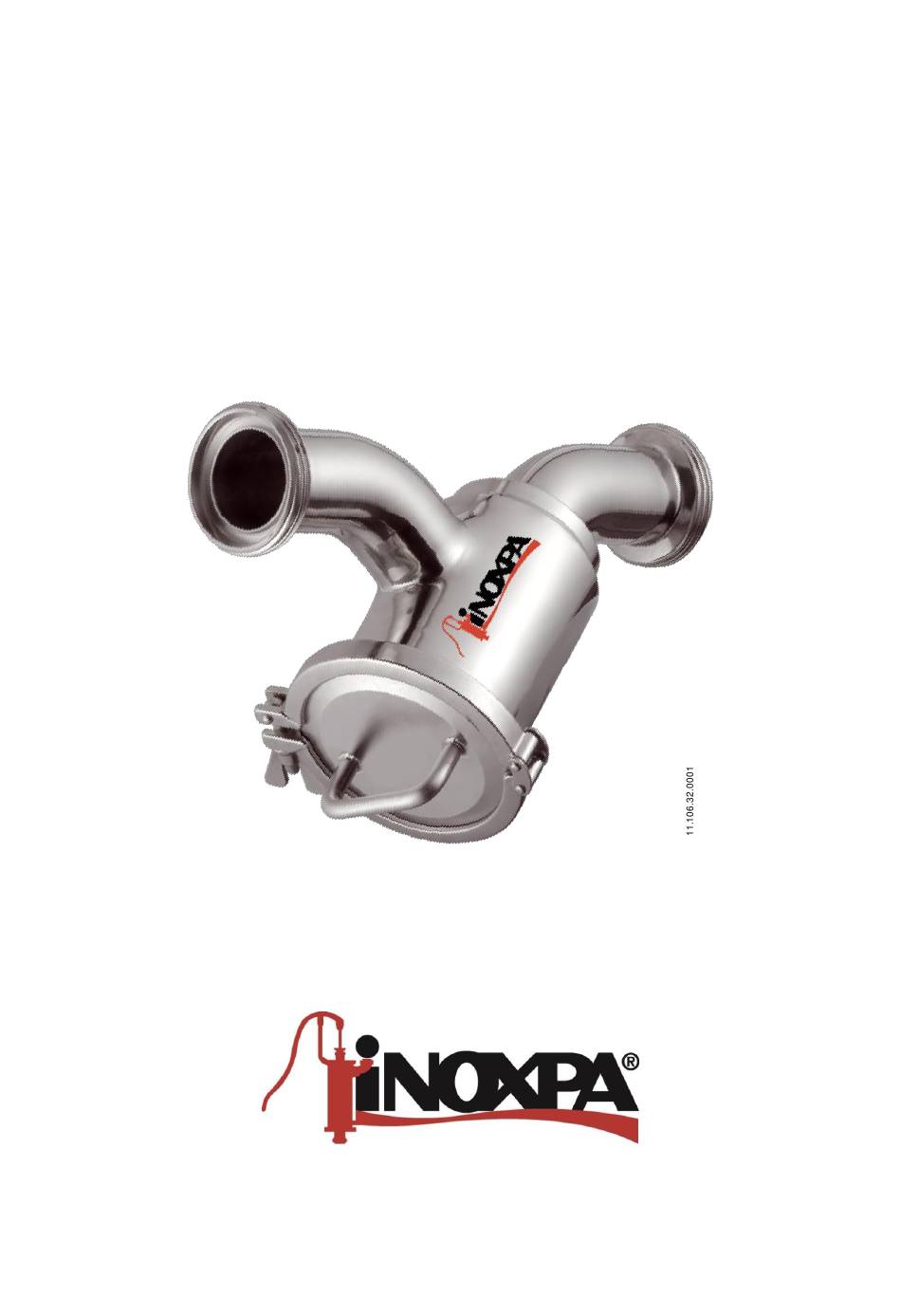

  • Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS Y-FILTER 83700 Original Manual 11.106.30.02EN (0) 2019/02...
  • Page 2 INOXPA, S.A.U Telers, 60 17820 - Banyoles (Girona) We hereby declare that the following products: FILTER Y - FILTER - 83700 Name Type Conform with the provisions of the Council Directive: Pressure Equipment Directive 2014/68/UE, the abovementioned equipment has been designed and manufactured in accordance with the requirements of this Directive DN - 25/1”...

  • Page 3: Table Of Contents

    8.4. Disassembly and assembly of the filter ...................... 14 9. Technical Specifications 9.1. Materials ..............................15 9.2. Other features ............................. 15 9.3. Dimenstions and weights ..........................16 9.4. Exploded drawing and parts list ........................17 INOXPA S.A.U. 11.106.30.02EN · (0) 2019/02...

  • Page 4: Generalities

     risk to the environment due to the type of substances released. 2.3. WARRANTY Any warranty will be void immediately and lawfully and, additionally, INOXPA will be compensated for any civil liability claims submitted by third parties, in the following cases: ...

  • Page 5: Security

    Important instruction to prevent damage to the equipment and its functions ATTENTION 3.2. GENERAL SAFETY INSTRUCTIONS Read the instruction manual carefully before installing and using the filter for the first time. Contact INOXPA in case of doubt. 3.2.1. During the installation Technical Specifications chapter 9 should always be observed.

  • Page 6: General Information

    Filters have a wide range of applications in the food-processing, cosmetics and some chemical industries as well as in auxiliary services of the pharmaceutical industry. ATTENTION Do not modify the operating parameters for which the filter has been designed without prior written authorisation from INOXPA. INOXPA S.A.U . 11.106.30.02EN · (0) 2019/02...

  • Page 7: Installation

    Visually check that the packaging has not been damaged. The first thing to do on receiving the filter is to check it and verify that it matches the delivery note. INOXPA will inspect all the equipment before packing, although it cannot guarantee that the merchandise will arrive intact to the user.

  • Page 8: Identification Of The Filter

    Filter type Straight filter Y-filter Right angle filter Connection type DIN 11851 OD ASME SMS FRANCE GAS DIN 259 ASEPTICO DIN 11864 ASEPTICO DIN 11864 PULGADAS RJT UK MACON FRANCE Product family Filters INOXPA S.A.U . 11.106.30.02EN · (0) 2019/02...

  • Page 9: Location

    Disassemble the filter before starting the welding work.  Disassemble the filter as indicate in the chapter 8. Maintenance.  Weld the filter body to the pipework. INOXPA S.A.U. 11.106.30.02EN · (0) 2019/02...

  • Page 10: Start-Up

    Visually check that no leaks are present in the sealed area. Do not modify the operating parameters for which the filter has been designed without prior written authorisation from INOXPA. ¡Burn hazard! Do not touch the filter or pipes when hot liquids are circulating or when cleaning and/or sterilisation procedures are being carried out.

  • Page 11: Troubleshooting

    The attached table lists solutions to problems that may arise while operating the filter. It is assumed that the filter has been properly installed and that is has been selected correctly for the specific application. Contact INOXPA if technical assistance is required. External product leak...

  • Page 12: Maintenance

    8.2.3. Spare parts To request spare parts, it is necessary to indicate the type of filter, the position and the description of the part which can be found in the chapter 9. Technical Specifications. INOXPA S.A.U . 11.106.30.02EN · (0) 2019/02...

  • Page 13: Cleaning

    Maximum conditions during the SIP process with steam or overheated water: a) Maxim temperature: 140ºC / 284ºF b) Maximum time: 30 min c) Cooling: sterile air or inert gas d) Materials: EPDM / FPM / NBR INOXPA S.A.U. 11.106.30.02EN · (0) 2019/02...

  • Page 14: Disassembly And Assembly Of The Filter

     Insert the assembly in the filter body (01).  Place the clamp seal (61) on the filter body (01).  Tighten the sealing clamp (34) joining the strainer screen (29) and the filter body (01). INOXPA S.A.U . 11.106.30.02EN · (0) 2019/02...

  • Page 15: Technical Specifications

    121ºC (250ºF) standard EPDM seals (other seal materials supplied for higher temperatures) STRAINER SCREEN: WEDGE WIRE Eq. mesh C Useful surf. (%) 0,40 0,30 0,20 0,10 0,05 STRAINER SCREEN: PERFORATED PLATE A (mm) Useful surf. (%) 10 x 1 INOXPA S.A.U. 11.106.30.02EN · (0) 2019/02...

  • Page 16: Dimenstions And Weights

    219,1 18,4 WELD / WELD OD d1(ØID) 1’’ 22,1 25,4 76,2 1 ½’’ 34,8 38,1 101,6 2’’ 47,5 50,8 101,6 2 ½’’ 60,2 63,5 114,3 3’’ 72,9 76,2 114,3 4’’ 97,4 101,6 154,0 INOXPA S.A.U . 11.106.30.02EN · (0) 2019/02...

  • Page 17: Exploded Drawing And Parts List

    Technical Specifications 9.4. EXPLODED DRAWING AND PARTS LIST Description Position Quantity Material Filter body AISI 316L Filter cover AISI 316L O-ring seal EPDM Strainer screen AISI 316L Sealing clamp AISI 304 Clamp seal EPDM INOXPA S.A.U. 11.106.30.02EN · (0) 2019/02...
  • Page 18 NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
  • Page 19 NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
  • Page 20 How to contact INOXPA S.A.U.: contact details for all countries are continually updated on our website. Please visit www.inoxpa.com to access the information. INOXPA S.A.U. Telers, 60 – 17820 – Banyoles – Spain Tel.: +34 972 575 200 – Fax.: +34 972 575 502...
