Rip fence with DIGIT X

7.10 Rip fence with DIGIT X

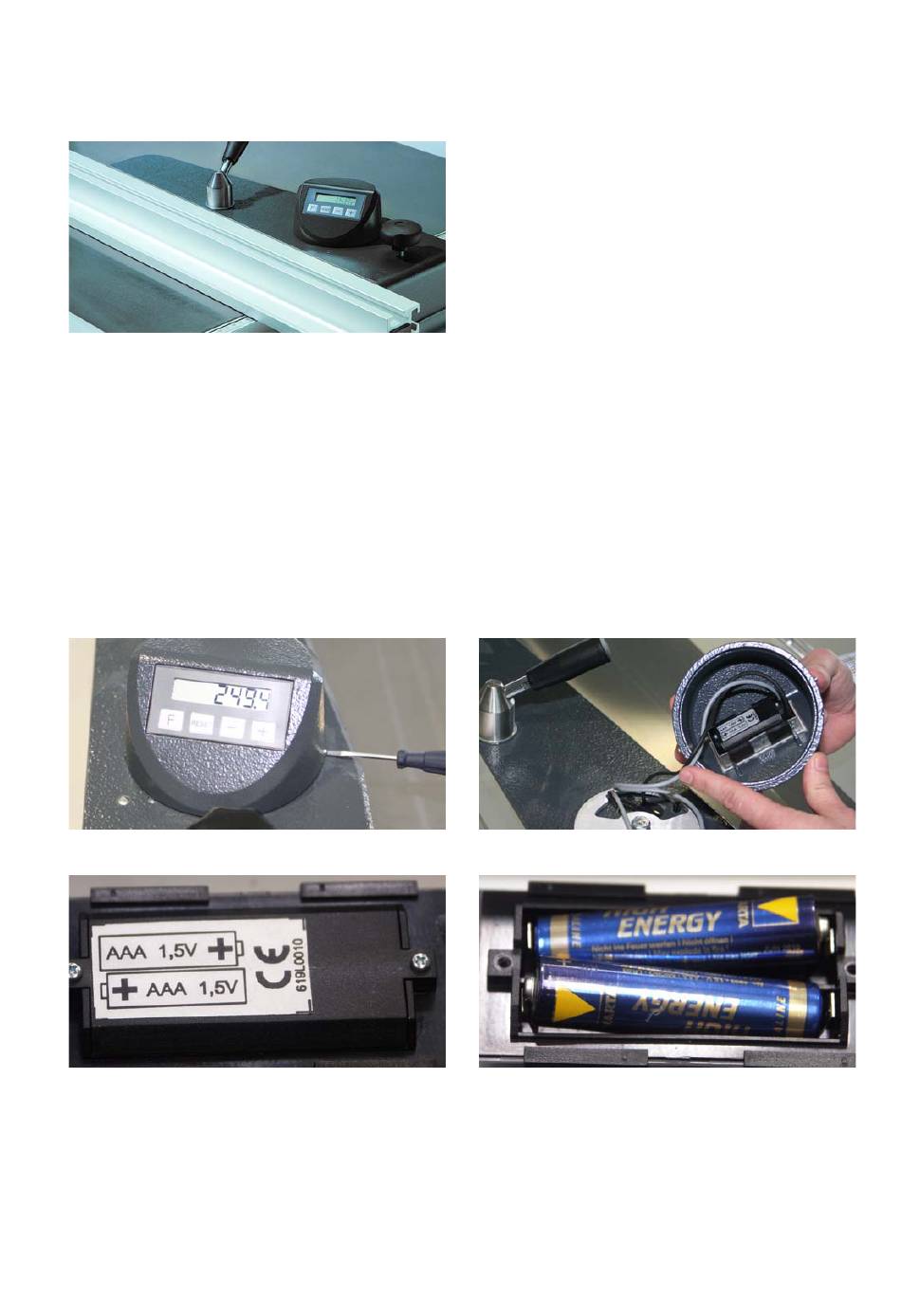

Fig. 7-9: DIGIT X
The electronic measuring system with digital dis-
play and precision setting guarantees for a precise
and fast rip fence setting. The display with its large
luminous digits is visible from every point of the ma-
chine. The system functions wear free and is saw
dust resistant. System calibration is easily and quic-
kly done by means of the keypad. A particularly
practical feature: when changing the stop fence
from 90 to 15 mm stop height, the dimensional cor-
rection in the measuring system is automatic.
Battery change
Fig. 7-10: Loosen clamping screws Fig. 7-12: Detach the display housing
Fig. 7-11: Loosen and withdraw screws and remove co- Fig. 7-13: Insert/replace batteries, ensuring correct
ver polarity!
