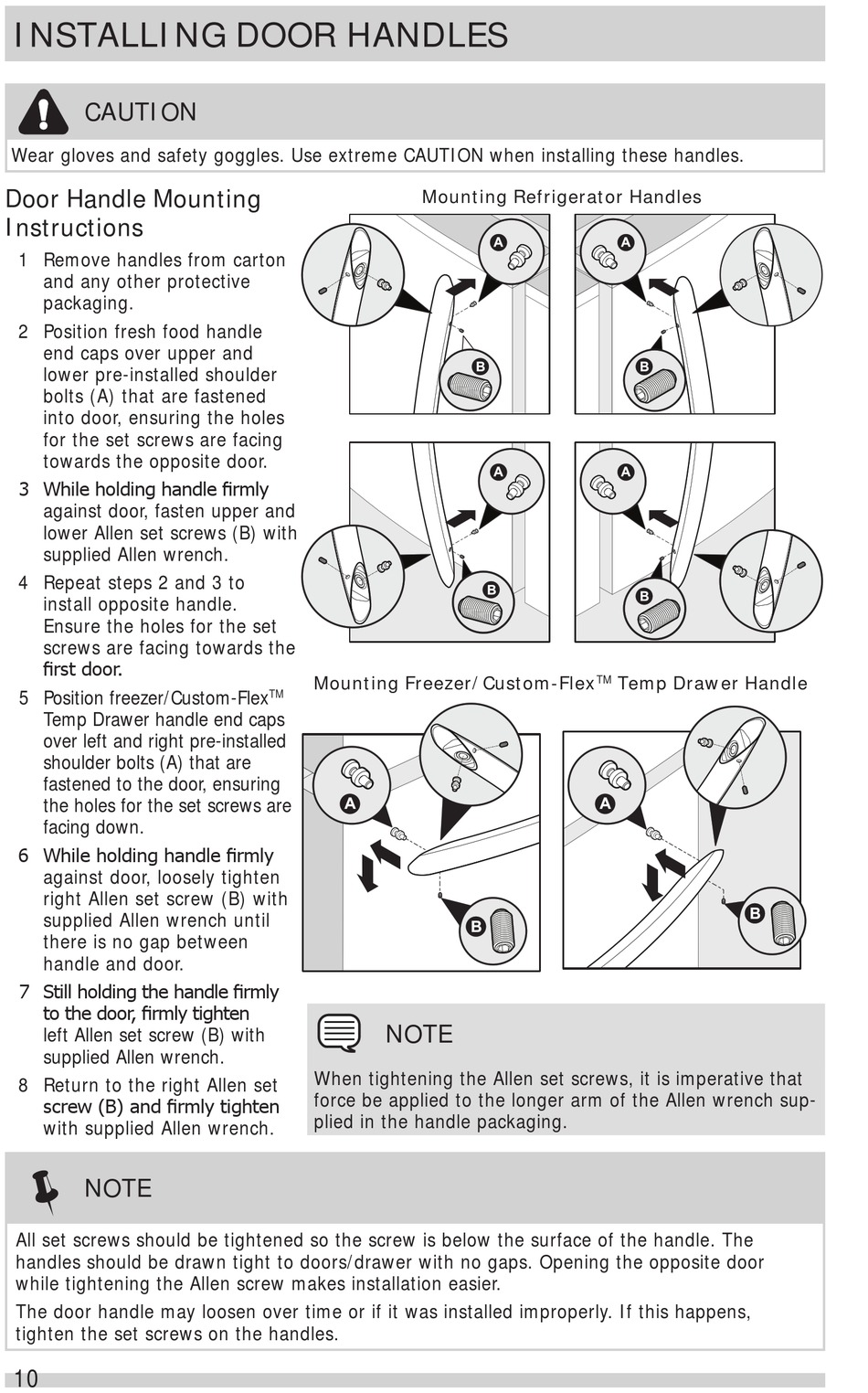

INSTALLING DOOR HANDLES
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
Door Handle Mounting
Instructions
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end caps over upper and
lower pre-installed shoulder
bolts (A) that are fastened
into door, ensuring the holes
for the set screws are facing
towards the opposite door.
3 While holding handle firmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4 Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards the
first door.
5 Position freezer/Custom-Flex
Temp Drawer handle end caps
over left and right pre-installed
shoulder bolts (A) that are
fastened to the door, ensuring
the holes for the set screws are
facing down.
6 While holding handle firmly
against door, loosely tighten
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between
handle and door.
7 Still holding the handle firmly
to the door, firmly tighten
left Allen set screw (B) with
supplied Allen wrench.
8 Return to the right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to doors/drawer with no gaps. Opening the opposite door
while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
tighten the set screws on the handles.
10
Mounting Refrigerator Handles
Mounting Freezer/Custom-Flex
TM
NOTE
When tightening the Allen set screws, it is imperative that
force be applied to the longer arm of the Allen wrench sup-
plied in the handle packaging.
Temp Drawer Handle
TM
