18V
Pole Hedge
Trimmer
S18EHP
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your pole hedge trimmer, ensuring it is
assembled correctly and safely. If you need help or have damaged or
missing parts, call the Customer Helpline on 0345 605 2069
ORIGINAL
INSTRUCTION
MANUAL
AFTER SALES SUPPORT
0345 605 2069
Advertisement
Table of Contents
Related Manuals for Spear & Jackson S18EHP
Summary of Contents for Spear & Jackson S18EHP
- Page 1 ORIGINAL INSTRUCTION MANUAL Pole Hedge Trimmer S18EHP Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2069 These instructions contain important information that will help you get the best from your pole hedge trimmer, ensuring it is assembled correctly and safely.
- Page 2 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance,comfort and durability firmly in mind,which has earned Spear &...
-
Page 3: Table Of Contents
CONTENTS Safety information -------------------------------------------------------------------------04 Box content / parts -----------------------------------------------------------------------14 Assemble ----------------------------------------------------------------------------------15 Prepare -------------------------------------------------------------------------------------17 Operate ------------------------------------------------------------------------------------18 Maintenance------------------------------------------------------------------------19 Technical data ----------------------------------------------------------------------------20 Troubleshooting ---------------------------------------------------------------------------22 Environmental protection ---------------------------------------------------------------22 Warranty -----------------------------------------------------------------------------------23 AFTER SALES SUPPORT 0345 605 2069... -
Page 4: Safety Information
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine DESCRIPTION OF SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the Pole Hedge Trimmer. Keep sufficient Read instruction distance away from... - Page 5 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine GENERAL SAFETY Batteries may enter WARNING: water cycle if disposed improperly, which can be hazardous Read all safety warnings for ecosystem. Do and all instructions. Failure to follow the warnings and not dispose of waste instructions may result in electric batteries as unsorted...
- Page 6 SAFETY INFORMATION e) When operating a power operating a power tool. tool outdoors, use an Distractions can cause you to extension cord suitable lose control. for outdoor use. Use of a cord suitable for outdoor use 2) Electrical safety reduces the risk of electric a) Power tool plugs must shock.
- Page 7 SAFETY INFORMATION used. Use of dust collection injuries. can reduce dust-related c) Prevent unintentional hazards. starting. Ensure the switch is in the off-position before 4) Power tool use and care connecting to power a) Do not force the power tool. source and/or battery pack, Use the correct power tool picking up or carrying the...
- Page 8 SAFETY INFORMATION Check for misalignment or battery pack. binding of moving parts, b) Use power tools only with breakage of parts and any specifically designated other condition that may battery packs. Use of any affect the power tool’s other battery packs may create operation.
- Page 9 SAFETY INFORMATION ADDITIONAL SAFETY WARNINGS IMPORTANT READ CAREFULLY BEFORE USE 1.Keep all parts of the body KEEP FOR FUTURE REFERENCE away from the cutter blade. Do not remove cut material Safe operating practices or hold material to be cut 1) Training when blades are moving.
- Page 10 SAFETY INFORMATION e) Always ensure that all handles hedge trimmer starts making any unusual noise or vibration, and guards are fitted when shut off the power source and using the hedge trimmer. Never allow the hedge trimmer to stop. attempt to use an incomplete hedge trimmer or one fitted with Take the following steps: - inspect for damage;...
- Page 11 SAFETY INFORMATION SAFETY WARNINGS FOR f) Seek medical advice BATTERY PACK immediately if a cell or battery pack has been a)Do not dismantle, open or swallowed. shred cells or battery pack. g)Keep battery pack clean b)Do not short-circuit a and dry. battery pack.
- Page 12 SAFETY INFORMATION use any charger other than that physical, sensory or mental specifically provided for use capabilities or lack of experience with the equipment. A charger and knowledge if they have been that is suitable for one type of given supervision or instruction concerning use of the appliance battery pack may create a risk of fire when used with another...
- Page 13 SAFETY INFORMATION between 18 when charging. C and 24 C. Do 10.Do not open the unit and not charge the battery pack keep out of the reach of in air temperatures below children. C, or above 40.5 C. This 11.Do not charge the batteries is important as it can prevent of other manufactures or ill- serious damage to the battery...
-
Page 14: Box Content / Parts

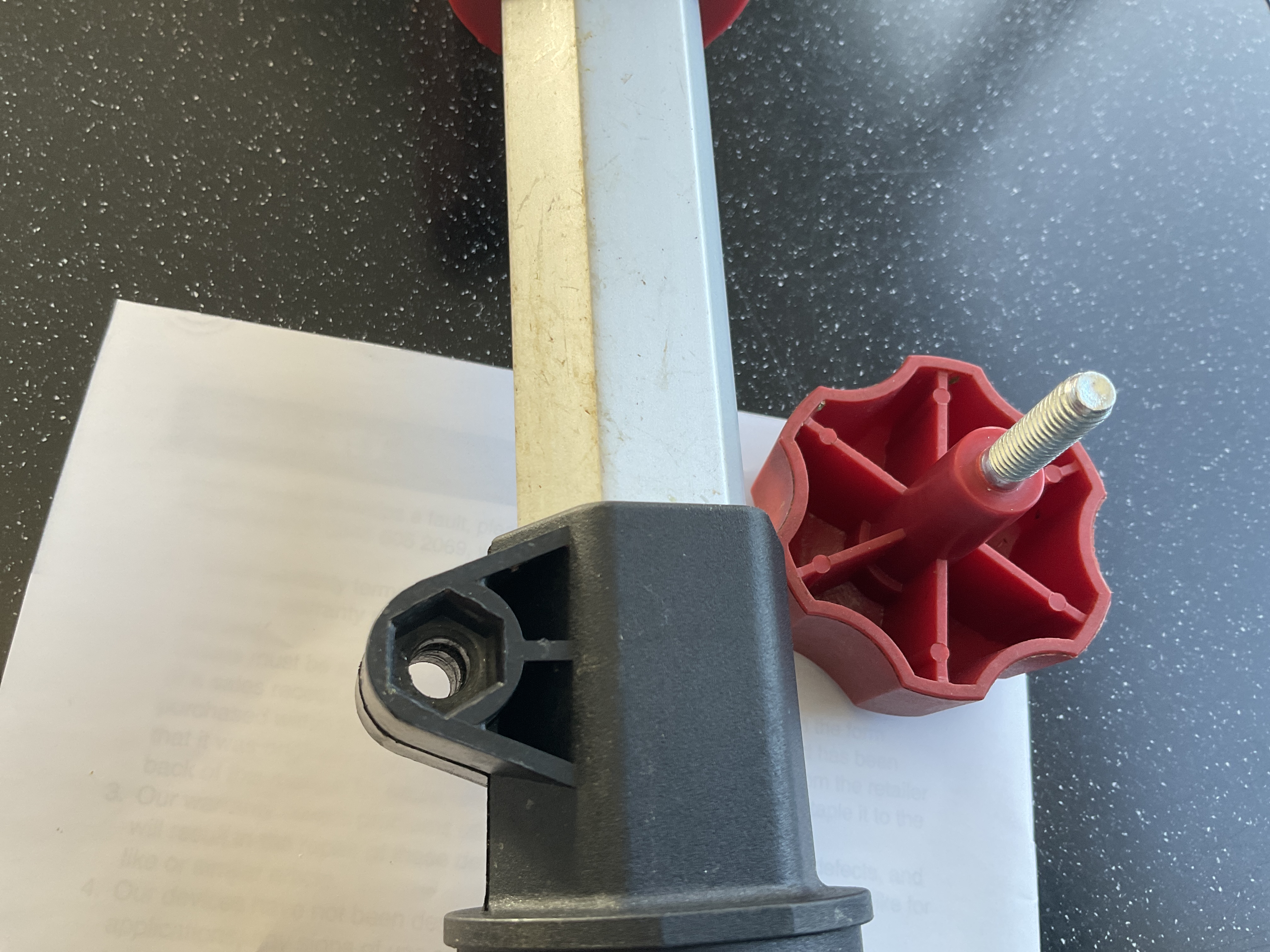

BOX CONTENT PARTS Blade Battery pack release button Motor housing On/off switch Lock button Lock-off switch Blade sheath Battery charger Clamp knob Shoulder belt Battery pack If there are any parts missing, please call the customer helpline on 0345 605 2069 AFTER SALES SUPPORT 0345 605 2069... -
Page 15: Assemble
ASSEMBLE Preparing To Assemble The Pole Hedge Trimmer Always take care when removing the packaging to prevent damage to you or to the pole hedge trimmer. IMPORTANT! Before assembling the pole hedge trimmer, check all the parts indicated in the manual are in the box. Inspect all the parts for signs of damage. - Page 16 ASSEMBLE TO ASSEMBLE THE SHOULDER BELT (See Fig B ) Your pole hedge trimmer is supplied with a shoulder belt. The shoulder belt is supplied with a quick release hook. Connect the hook to the bracket of machine body located before the handle.
-
Page 17: Prepare
PREPARE BEFORE PUT INTO OPERATION CHARGING THE BATTERY PACK (See Fig. C1, C2, C3) WARNING! The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur. -
Page 18: Operate
OPERATION BEFORE STARTING YOUR POLE HEDGE TRIMMER Remove the blade sheath as shown in Fig. E. START OR STOP YOUR HEDGE TRIMMER (See Fig F) Your trimmer is equipped with a lock-off switch. Push the Lock-off button backwards; at the same time, press the Lock-off on/off switch to start you trimmer. -
Page 19: Maintenance
OPERATION OPERATING THE POLE HEDGE TRIMMER (See Fig I1, I2, I3) Always hold the trimmer with both hands and with the blade away from you before turning it on. When trimming new growth, use a wide sweeping action so that the stems are fed directly into the blade. -
Page 20: Technical Data
TECHNICAL DATA Pole hedge trimmer S18EHP Rated voltage No load speed 2800 /min Cutting width 16 mm Cutting length 450 mm Telescopic tube range 85-125cm Machine weight 3.5kg Charger ACG18G25 Charger input 100-240V~50/60Hz 70W Charger output 2.5A Charging time 1 hr... - Page 21 TECHNICAL DATA Noise Information A weighted sound pressure =74.5dB(A) K =3.0dB(A) A weighted sound power =83.04dB(A) K =3.0dB(A) Wear ear protection. Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value: a =2.2m/s Uncertainty K =1.5m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.
-
Page 22: Troubleshooting
TROUBLESHOOTING The following chart lists problem symptoms, possible causes and corrective action, if your pole hedge trimmer does not operate properly. If these do not identify and correct the problem, contact your service agent. WARNING: Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work! Problem Possible cause... -
Page 23: Warranty
WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2069, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
