Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.

Tools Needed

• Phillips head screwdriver
• Drill and 1/4" bit
• 1/4" and 5/16" Nut drivers • Gloves
Parts Included
• Transition duct assembly
• Metal seal strip
• Metal clips (2)
• Thumb screws (2)

Important Notes

• This instruction describes how to modify an
existing GE duct adapter to be used with the
new AZ45 and AZ65 Series.
STEP 1
Removal of the chassis from the
case
1. Disconnect the power to the unit.
2. For AZC or AZR series:
a. Remove room cabinet front.
b. Remove the three screws securing the
transition duct to the bottom of the lateral
duct adapter.
c. Carefully slide the transition duct forward
and remove (see illustration in next step).
GE is a trademark of the General Electric Company. Manufactured under trademark license.
• Center punch
• Hammer

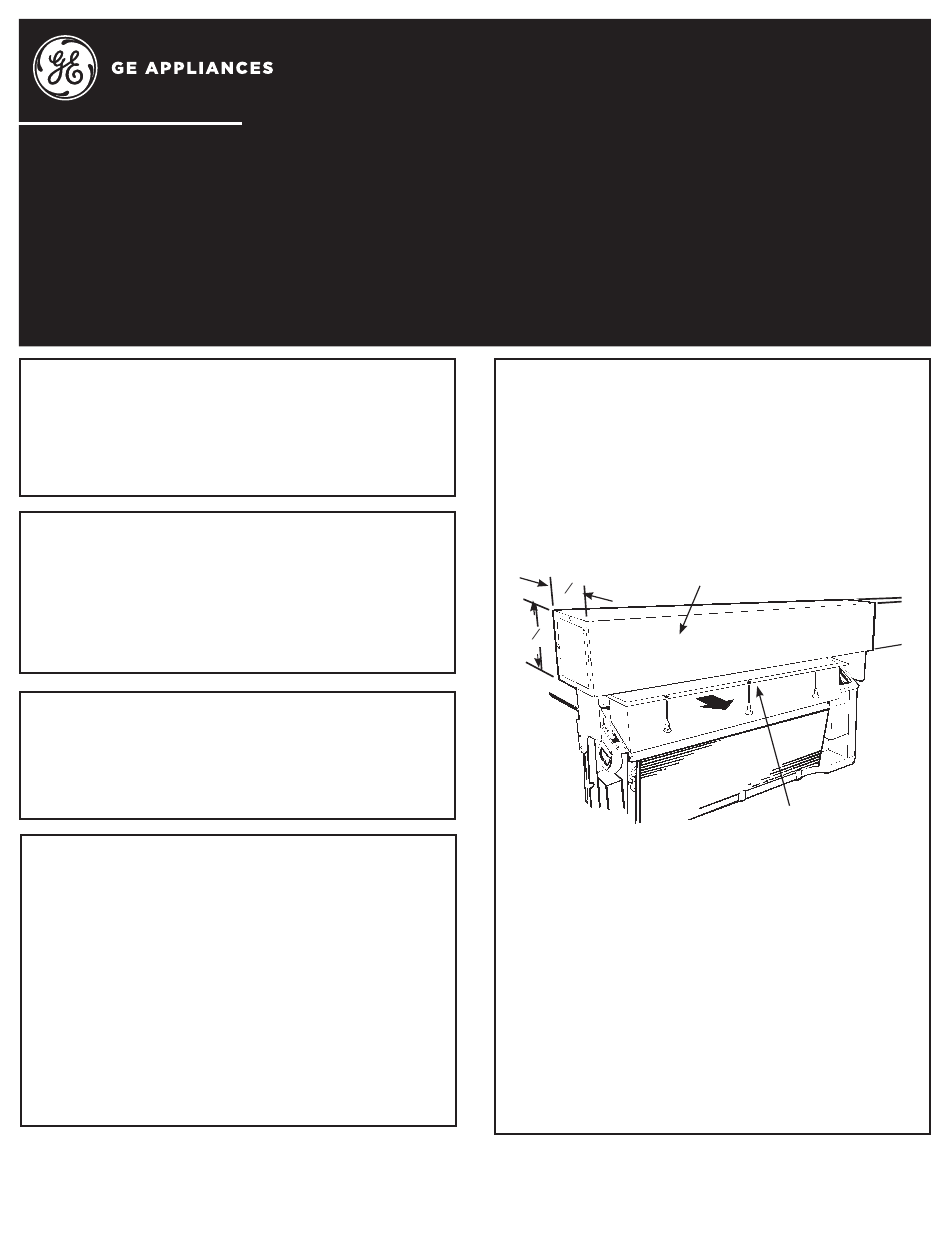

Installation Instructions
for your new
RAK7023
Transitional duct adapter
3. For AZ21 or AZ31 series:
a. Remove the two thumb screws securing the
transition duct to the bottom of the lateral
duct adapter.
b. Carefully slide the transition duct forward
and remove.
c. Remove room cabinet front.
Lateral duct adapter
6
"
1 2
7
3 32
"
4. The old transition duct, the three screws
(if used) and any gaskets used to seal the
old transition duct to the chassis will not be
needed for the new installation but should be
kept for possible reuse of the old chassis in
this installation location.
5. Remove the chassis-to-case screw (two on
each end of the chassis) and carefully slide it
from the case.
Pub No. 31-30808-1
Transition duct
07-16 GEA
