Bobrick B-3574 Technical Data

Technical Data
MATERIALS:
Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin finish.
Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin finish. Drawn and beveled, one-piece, seamless
construc tion.
Doors (2) — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin finish. One-piece, seamless construction. Secured to
cabinet with a full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom
accessories.
Toilet Tissue Dispensers (2) — .100" (2.5mm) thick ABS. Equipped with two theft-resistant, heavy-duty, one-piece molded
ABS spindles.
Disposal Panel — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with hemmed edges; exposed surface has satin finish.
Secured to cabinet with a spring-loaded, full-length stainless steel piano-hinge. Equipped with an international graphic symbols
identifying napkin disposal.
Waste Receptacle — Leak-proof molded polyethylene. Removable for servicing. Capacity: 0.8-gal. (3.0-L).
OPERATION:
Doors unlock with key provided and swing open for filling. Toilet seat-cover dispenser holds 500 single- or half-fold paper
covers. Spindles may be removed from cabinet only when door is open. Receptacle is removable for servicing. Unit holds two
standard-core toilet tissue rolls up to 5-1/4'' (135mm) diameter (1800 sheets).
Designer's Note: It is recommended that one full toilet tissue roll remain wrapped until the other roll has been depleted to avoid
wasting ends of both rolls.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.

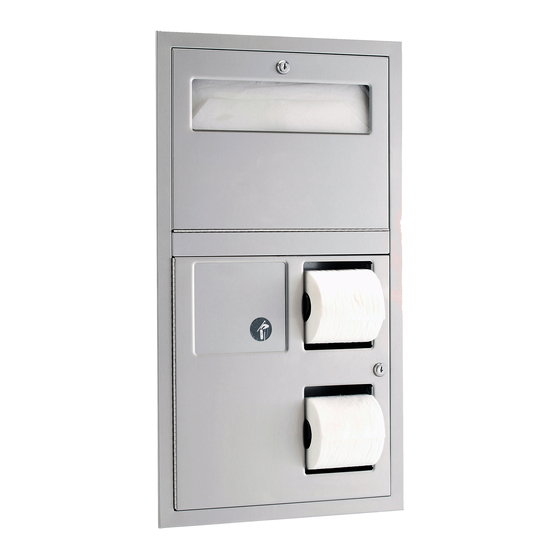

ClassicSeries
RECESSED
TOILET SEAT-COVER DISPENSER,
SANITARY NAPKIN DISPOSAL,
AND TOILET TISSUE DISPENSER
17-3/16''
435mm
S
30-5/8''
780mm
27-13/16''
705mm
Sanitary
Napkin
Disposal
Panel
S
Removable
Waste
15-3/16''
Receptacle
385mm
11-7/16''
290mm
Centerline of Toilet Tissue
Dispenser shall be 7'' to 9''
(180 to 230mm) in Front of Toilet.
®
Finish Face of Wall
Toilet-Seat-Cover
Dispenser
Upper
Door
S
Grab Bar
Shelf
(Not Furnished)
33''
Lock
840mm
& Key (2)
to
Floor
Toilet Tissue
Dispenser (2)
S
5-5/8''
Lower
140
mm Door
3/16''
5mm
1''
25mm
Typ.
3-3/4''
95mm
C L
C L
Outlet of Toilet Tissue Roll
shall be 18'' (460mm) ICC/ANSI
or 15'' (380mm) ADA Above Floor
Rough Wall Opening
16'' (405mm) wide
29-1/4'' (745mm) high
4'' (102mm) minimum recessed depth
See Designer's Notes under Installation for
Rough Wall Opening Location Information
B-3574
3''
75mm
S
16-3/8''
28-3/4''
415mm
730mm
3-15/16''
100mm
continued . . .
Rev. 10/4/16 Printed in U.S.A.
R/A, S/C
© 2016 by Bobrick Washroom Equipment, Inc.
