Panasonic TC-L37U22 Service Manual

Panasonic TC-L37U22 Service Manual

37 inch class 1080p lcd hdtv
Hide thumbs Also See for TC-L37U22:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual , Operating Instructions

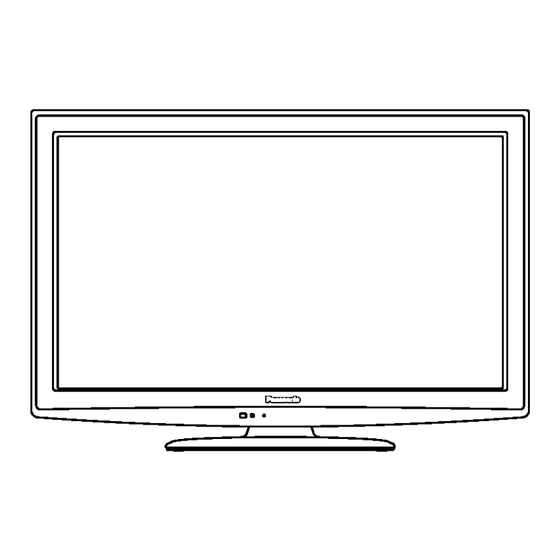

37 inch Class 1080p LCD HDTV
TC-L37U22
Model No.
LA03 Chassis
© Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC100209CE
B01 Canada: B61

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TC-L37U22

Summary of Contents for Panasonic TC-L37U22

  • Page 1 ORDER NO.MTNC100209CE B01 Canada: B61 37 inch Class 1080p LCD HDTV TC-L37U22 Model No. LA03 Chassis © Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.11. A-Board (8/13) Schematic Diagram----------------- 43 1.1. General Guidelines ----------------------------------------3 11.12. A-Board (9/13) Schematic Diagram----------------- 44 2 Warning --------------------------------------------------------------4 11.13. A-Board (10/13) Schematic Diagram --------------- 45 2.1. Prevention of Electrostatic Discharge (ESD) 11.14.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi- tive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. Service Hint Board Name Function A-Board Speaker out, AV Terminal, HDMI in, SD Card, PC in, Digital Signal Processor, Nile-Tcon, Tuner V-Board Remote Receiver, LED P-Board Power (AC/DC), DC-DC Control Panel Assy Control Button, Power switch Non serviceable Control Panel Assy should be exchanged for service.

  • Page 7: Specifications

    4 Specifications Power Source AC 110-127 V, 60 Hz Power Consumption Maximum 151 W Standby Condition 0.3 W Display panel Aspect Ratio 16:9 Visible screen size 37 inch class (37.0 inches measured diagonally) (W × H × Diagonal) 32.2 inch × 18.1 inch × 37.0 inch (819 mm × 460 mm × 940 mm) 2,073,600 (1,920 (W) ×...

  • Page 8: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...
  • Page 9 Contents of adjustment mode 5.1.2. • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 10: Srv-Tool

    5.2. SRV-TOOL 5.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory ship- ment setting].

  • Page 11: Hotel Mode

    5.3. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Mode Select hotel mode off/on In order to display the Hotel mode setup menu, please Input Select input signal modes. enter the following command (within 2 second).

  • Page 12: Data Copy By Sd Card

    5.4. Data Copy by SD Card 5.4.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 13 5.4.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 14 5.4.4. Data copy from to SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 15: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 16: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

  • Page 17: No Power

    6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

  • Page 18: Disassembly And Assembly Instructions

    7 Disassembly and Assembly Instructions 7.1. Pedestal 7.3. AC cord 1. Lay down the unit so that the rear cover faces upward. 1. Remove the screw and Remove the AC cord bracket. 2. Remove the 4 screws. 2. Remove the bushing of the AC cord from the AC cord 3.

  • Page 19: Side Av Bracket

    7.5. Side AV bracket 7.7. Control panel 1. Remove the 1 screw (D). 1. Disconnect the connector (K1). 2. Remove the 1 screw (E). 2. Remove the 2 screws. 3. Remove the side AV bracket. 3. Remove the control panel. 7.6.

  • Page 20: Metal Bracket A-Board

    7.9. Metal bracket A-Board 3. Remove the Metal bracket P-Board-S. 4. Remove the clampers. 1. Remove the 4 screws. 2. Remove the Metal bracket A-Board L/S. 7.10. Bracket IP 1. Remove the 3 screws. 2. Remove the Bracket IP. 7.11. VESA metal 1.

  • Page 21: Metal Support

    7.12. Metal support 7.14. LCD Panel 1. Remove the 6 screws. 1. Remove the 6 screws. 2. Remove the Metal supports (L, R). 2. Remove the LCD panel. 7.13. Metal bracket 1. Remove the 4 screws (F). 2. Remove the 3 screws (G). 3.

  • Page 22: Emi Processing

    7.16. EMI processing...

  • Page 25: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Voltage chart of P-board VOLTAGE TEST POINT SPECIFICATION (Reception state) TP7952, TP7953 18 ± 2 V DTV12V TP7954, TP7955 12.2 ± 0.6 V TUNER6V TP7956 6.1 ± 0.3 V 8.2. Voltage chart of A-board VOLTAGE TEST POINT SPECIFICATION (Reception state)

  • Page 27: Block Diagram

    9 Block Diagram 9.1. Main Block Diagram DIGITAL SIGNAL PROCESSOR TMDS DATA HDMI1 TMDS DATA HDMI I/F HDMI2 RECEIVER SD CARD DATA TMDS DATA SD CARD SD CARD DATA (SIDE) HDMI3 SLOT IFD_OUT FRONT END Nile-TCON SIF_OUT PROCESSOR DDR2 TUNER EEPROM STB5V STB3.3V...

  • Page 28: Block (1/2) Diagram

    9.2. Block (1/2) Diagram DIGITAL SIGNAL PROCESSOR POWER LED REMOTE RECEIVER C.A.T.S. SENSOR D2500 SN2501 POWER LED C.A.T.S. R_LED_ON POWER LED(R) SENSOR C.A.T.S. C.A.T.S. RM2501 REMOTE IN REMOTE IN SUB5V REMOTE SUB+5V RECEIVER STB3.3V STB+3.3V SOUND15V KEYSCAN1 KEYSCAN1 CONTROL PANEL ASSY KEYSCAN3 KEYSCAN3 POWER SUPPLY...

  • Page 29: Block (2/2) Diagram

    9.3. Block (2/2) Diagram JK2102B SPEAKER_L SPEAKER_R D2142 JK2101A JK4500 JK2108A OPTICAL VIDEO2 JK8502 JK4502 JK4501 AUDIO TU8302 HDMI IN 3 (SIDE) COMP1 VIDEO1 SD CARD HDMI IN 1 HDMI IN 2 ANT IN (SIDE) TUNER SUB3.3V_SD IIC0_TU IC5613 3.3V IIC0_TU FACTORY IIC1...

  • Page 31: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring...

  • Page 33: Schematic Diagram

    11 Schematic Diagram 11.1. Schematic Diagram Notes...

  • Page 34: P-Board (1/2) Schematic Diagram

    11.2. P-Board (1/2) Schematic Diagram COLD RL7101 K6B1AYY00060 C7004 250V 470p D7040 B0ACCJ000048 RL7102 K6B1AYY00060 TP7001 TP7002 TP7003 Q7032 LF7001 LF7002 LF7003 G0B103H00009 G0B103H00009 G0B103H00009 B1ABGF000019 R7031 F7001 K5D502BNA005 RL7103 K6B1AYY00061 C7003 D7001 C7001 R7001 FILTER 0.22u D4EAC6210002 0.22u C7032 R7030 AC CORD CF7101...

  • Page 35: P-Board (2/2) Schematic Diagram

    11.3. P-Board (2/2) Schematic Diagram INV390V TP7803 TP7804 TP7801 TP7802 F7801 L7804 K5D502BNA005 EXCELDR35V IC7801 C0DBZYY00321 INV VOLTAGE SUPPLY/FET DRIVER COLD COLD INV16V D7801 TP7808 TP7809 B0JCKG000002 Q7801 C7807 R7801 R7802 INVERTER B1CERQ000056 220p TP7805 LDRV1 R7813 OUT1 4.7k L7805 L7801 C7809 EXCELDR35V...

  • Page 36: A-Board (1/13) Schematic Diagram

    11.4. A-Board (1/13) Schematic Diagram A-BOARD TXN/A10QGMS (1/13) IC8001 C1AB00003249 Nile-TCON DVSS/AVSS GPIO/IRQ_MCU R8050 IC8001 IC8001 AC19 STB1.2V SUB1.2V IC8001 P76_CEC_IN P76 CEC_IN DDR_VCC_POST IC8001 IC8001 IC8001 P75_AVLINK1IN P75 CEC_OUT IC8001 IC8001 AD18 R8051 IC8001 AC10 VDD18DDR C8127 IC8001 VDD12MCU IC8001 IC8001 AE19...

  • Page 37: A-Board (2/13) Schematic Diagram

    11.5. A-Board (2/13) Schematic Diagram A-BOARD TXN/A10QGMS (2/13) DDR2IF 84FBGA DDR2 800Mz x 16bit SUB1.8V DDR_VCC_POST L8000 J0JHC0000045 C8097 CH0DM0 DDRDM0 AD10 IC8001 IC8002 CH0DM1 DDRDM1 AD13 IC8001 IC8002 IC8002 CH0DQS0_N IC8002 VDDQ DDRDQSN0 IC8001 IC8002 UDQS CH0DQS0 IC8002 C8105 DDRDQS0 IC8001 IC8002...

  • Page 38: A-Board (3/13) Schematic Diagram

    11.6. A-Board (3/13) Schematic Diagram A-BOARD TXN/A10QGMS (3/13) R8515 EXB2HV680JV AA_ED0 EBDAT0 AA_ED1 EBDAT1 AA_ED2 EBDAT2 AA_XECS0 R8531 AA_ED3 XECS0 TO 1/13 EBDAT3 AA_ED4 EBDAT4 AA_ED5 EBDAT5 AA_ED6 EBDAT6 AA_XERE R8532 AA_ED7 XERE EBDAT7 AA_XEWE0 R8533 TO 1/13 XEWE0 R8516 EXB2HV680JV MCU_XRST AA_ED8...

  • Page 39: A-Board (4/13) Schematic Diagram

    11.7. A-Board (4/13) Schematic Diagram A-BOARD TXN/A10QGMS (4/13) SUB3.3V SUB5V SUB3.3V D5670 B0ACCJ000048 VOUT C5701 C5700 6.3V 6.3V 4.7u 4.7u ON/OFF SUB1.2V IC5606 IC5605 C0DBAYY00755 H:ON C0DBAGF00030 F15V L:OFF L5613 R5705 SUB1.2V C5695 J0JHC0000075 SUB3.3V 0.01u C5692 BOOT C5734 C5733 C5694 0.1u H:ON...

  • Page 40: A-Board (5/13) Schematic Diagram

    11.8. A-Board (5/13) Schematic Diagram C2103 L2123 6.3V A-BOARD TXN/A10QGMS (5/13) RF_V J0JCC0000287 R2307 TO 9/13 RF_V VCVS1IN U_TU_V/A_TU_V TO 1/13 L2125 C2214 US AV1 R2391 J0JCC0000287 R2301 6.3V U_AV1_V/A_AV2_V__TERMINAL VCVS2IN U_AV1_V/A_AV2_V C2211 R2286 2.2u TO 10/13 U_AV1_L/A_AV2_L__TERMINAL ALIN1 U_AV1_L/A_AV2_L TO 1/13 R2288 C2212...

  • Page 41: A-Board (6/13) Schematic Diagram

    11.9. A-Board (6/13) Schematic Diagram A-BOARD TXN/A10QGMS (6/13) I2C/I2S/RESET OPERATE RESET AUDIO_XRST TO 1/13 AUDIO_XRST 24KEC_I2CDATA1_AMP 24KEC_I2CDATA1_AMP TO 13/13 24KEC_I2CCLK1_AMP 24KEC_I2CCLK1_AMP J0JBC0000116 R2300 150 R2342 48KHz LRCLK_POST LRCLK R2303 150 R2343 J0JBC0000116 12.288MHz MCLK_POST MCLK TO 1/13 R2309 150 R2344 J0JBC0000116 3.072MHz BCLK_POST...

  • Page 42: A-Board (7/13) Schematic Diagram

    11.10. A-Board (7/13) Schematic Diagram A-BOARD TXN/A10QGMS (7/13) 1 RSV :3.2V_SUB1.2V STB3.3V 2 SOS8:0.7V_SUB1.8V 3 SOS7:1.4V_POWER(SUB6V/SUB15V) 4 SOS6:1.9V_SUB5V SUB1.2V 5 SOS4:2.6V_FAN IC4700 R4809 STB3.3V C1ZBZ0004161 STB3.3V R4831 ANALOG-ASIC 100k SUB5V SUB1.8V R4748 Q4703 R4821 STB3.3V STB5V SUB5V STB1.2V SC_OHZ DSC2001S0L R4753 P3.3V D_SOS_RSV...

  • Page 43: A-Board (8/13) Schematic Diagram

    11.11. A-Board (8/13) Schematic Diagram A-BOARD TXN/A10QGMS (8/13) *R4520 R4519 R4515 HPLUG_A HPLUG_B HPD1 R4566 HPLUG_C R4504 R4506 *R4565 *R4507 R4567 DDC5V_B DDC5V_C C4539 DDC5V_A 6.3V *C4541 C4540 6.3V 6.3V *R4525 *R4505 TO 1/13 TO 1/13 4.7k *L4511 R4526 R4502 4.7k TO 1/13 J0JYC0000068...

  • Page 44: A-Board (9/13) Schematic Diagram

    11.12. A-Board (9/13) Schematic Diagram A-BOARD TXN/A10QGMS (9/13) SUB5V L8306 SUB5V J0JHC0000045 R8307 AG_RF_AFT RF_AFT TO 1/13 R8335 C8370 R8341 TP8302 0.1u RF_V R8330 R8334 RF_V TO 5/13 R8337 Q8308 Q8305 C8315 2.2k R8302 R8339 DSA2001S0L B1ADCE000022 TO 1/13 1000p TU_SIF SIFIN R8332...

  • Page 45: A-Board (10/13) Schematic Diagram

    11.13. A-Board (10/13) Schematic Diagram A-BOARD TXN/A10QGMS (10/13) PC MODEL TP3106 R3124 R3015 TP3101 PC_R_TERMINAL R3125 JK2108A R3016 TP3102 *JK2101A PC_G_TERMINAL K1FY315A0006 R3126 K1U812A00001 R3017 TO 5/13 PC IN TP3103 PC_B_TERMINAL AV TERMINAL R3026 TP3104 PC_HD_TERMINAL U_AV1_V/A_AV2_V__TERMINAL R3027 TP3105 PC_VD_TERMINAL Sync_GND U_AV1_L/A_AV2_L__TERMINAL TO 5/13...

  • Page 46: A-Board (11/13) Schematic Diagram

    11.14. A-Board (11/13) Schematic Diagram AVDD13.7V *Q4901 *L4804 B1ABNF000006 J0JHC0000046 *C4868 *C4835 *C4839 *R4909 *R4902 0.1u *TP7006 *TP7005 A-BOARD TXN/A10QGMS (11/13) *R4903 *Q4809 *IC8850 *R4916 B1ABNF000006 *TP4252 *R7094 C0DBGYY00203 *Q4811 *R4915 VCOM LVDS 3.3V 2.2k B1ADNF000006 A_OUTPUT *TP7020 VCOM *R8851 2.2k VCOM-S *R4923...

  • Page 47: A-Board (12/13) And V-Board Schematic Diagram

    11.15. A-Board (12/13) and V-Board Schematic Diagram A-BOARD TXN/A10QGMS (12/13) CONNECTER for LCD 2010VERSION LCD COMMON LCD model A-P CONNECTOR to INV INV LED SUB5V SUB5V Q2761 B1ABCF000231 R2769 R2765 TO 1,11/13 P-BOARD R2770 *R2780 PANEL_STBY_ON/PANEL_VCC_ON *TP2786 (P2) TP2758 R2766 ADIM Q2760 TP2759...

  • Page 48: A-Board (13/13) Schematic Diagram

    11.16. A-Board (13/13) Schematic Diagram A-BOARD TXN/A10QGMS (13/13) FACTORY SUB5V FACTORY TP4732 SBO0 STB5V STB5V STB3.3V TP4726 SBI0 STB3.3V R4802 FACTORY IIC_CONT EXB2HV220JV STB5V TP4734 UATXD1 TP4723 TO 1/13 UARXD1 STB5V UARXD0 SRQ1 UATXD0 R4762 UACTS0_N TO 1/13 TP4700 EXB2HV220JV TO 1/13 24KEC_I2CCLK0 (Tuner)

  • Page 49: Printed Circuit Board

    12 Printed Circuit Board 12.1. P-Board P-BOARD (FOIL SIDE) TXN/P10QNM R 7 0 3 0 R L 7 1 0 3 R L 7 1 0 2 Q 7 0 3 2 D 7 0 4 0 R L 7 1 0 1 C 7 9 5 0 C 7 9 5 1 R 7 5 0 2...
  • Page 50 P-BOARD (COMPONENT SIDE) TXN/P10QNM R L 7 1 0 1 R L 7 1 0 2 R L 7 1 0 3 Z A 7 0 0 2 R 7 5 0 2 J 2 1 7 J 3 0 4 Z A 7 0 0 0 Z A 7 0 0 1 C 7 5 1 4...

  • Page 51: A-Board

    12.2. A-Board A-BOARD (FOIL SIDE) TXN/A10QGMS Q 4 8 0 4 Q 4 8 0 5 R4891 R4889 D4801 TP4603 Q 4 6 2 0 R4887 R4003 R4892 Q4805 R7116 IC7000 TP4602 C4863 R7115 Q4620 R7114 D4820 ZA5415 ZA5409 TP4815 R4883 R4885 I C 7 0 0 0...
  • Page 52 A-BOARD (COMPONENT SIDE) TXN/A10QGMS JS1000 JS1001 JS1002 R4621 JS1003 JS1004 JS1005 A 1 3 JS1006 JS1007JS1008 JS1010 JS1013 JS1022 JS1025 G ( G A ) H ( H A ) J ( J A ) JS1011 JS1014 JS1023 JS1026 L8501 K ( K A ) L ( L A ) M ( M A )

  • Page 53: V-Board

    12.3. V-Board V-BOARD (FOIL SIDE) TXN/V10QMMS T P 2 5 0 7 T P 2 5 0 0 T P 2 5 0 2 TP2507 TP2500 T P 2 5 0 1 TP2502 TP2501 TP2506 T P 2 5 0 4 P b F T P 2 5 0 3 TP2503...

  • Page 55: Exploded View And Replacement Parts List

    13 Exploded View and Replacement Parts List 13.1. Exploded View and Mechanical Replacement Parts List 13.1.1. Exploded View...
  • Page 56 13.1.2. Accessories...
  • Page 57 13.1.3. Mechanical Replacement Parts List...
  • Page 58 Ref. Safety Part No. Part Name & Description Q'ty Remarks 10030-0047500 BATTERY COVER 1 PAVCA EAS16S789A SP UNIT K0RB00700018 CONTROL PANEL COMP 1 CIRCUIT BOARD&PANEL PAVCA K2CB2YY00016 AC CORD 1 PAVCA L5EDD9T00025 LCD PANEL 1 PAVCA N2QAYB000485 REMOTE CONTROLLER 1 PAVCA TBL2AX029SER PEDESTAL ASS'Y 1 PAVCA...

  • Page 59: Electrical Replacement Parts List

    13.2. Electrical Replacement Parts List 13.2.1. Replacement Parts List Notes...
  • Page 60 13.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2502 F1G1C103A116 C 0.010UF, K, Description C2505 F1H1C104A143 C 0.1UF, K, 16V TXN/A10QGMS CIRCUIT BOARD A (RTL) C2514 F1J1A106A087 C 0.010UF, K,...
  • Page 61 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C4851 F1G1C104A077 C 0.10UF, K, 16V C7409 F1J1H471A834 C 470PF, 50V C4852 F1H1H473A970 C 0.47UF, K, 50V C7411,12 F1A2E102A004 E 1000UF, 100V PAVCA C4853...
  • Page 62 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8042 F1G1C104A077 C 0.10UF, K, 16V C8339 F1G1H680A731 C 68UF, 50V C8043-45 F1G1A105A047 C 1UF, K, 10V C8340,41 F1G1H1020008 C 1000UF, 50V C8046 F1J0G2260001 C 0.001UF, 6.3V...
  • Page 63 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D7403,04 B0HAKR000004 DIODE IC7851 C0ZBZ0001729 IC PAVCA D7405 B0JAME000091 DIODE IC8001 C1AB00003249 IC PAVCA D7407 B0EBKT000007 DIODE IC8002 C3ABSY000043 IC IC8004 TVRR296S...
  • Page 64 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q4513 B1ADCE000022 TRANSISTOR R2299 D1BB75R0A055 M 75 OHM, 1/10W Q4515 B1HFCFA00026 TRANSISTOR R2300 ERJ2GEJ151 M 150 OHM, J,0.063W Q4702-04 DSC2001S0L TRANSISTOR...
  • Page 65 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3026,27 D0GAR00Z0001 C 0 OHM, 0.063W R4809 ERJ2GEJ103 M 10KOHM, J,0.063W R3124-26 D0GAR00Z0001 C 0 OHM, 0.063W R4816 D1BA20020005 M 20KOHM, 1/10W PAVCA R4001...
  • Page 66 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4942 D0GA223JA015 M 22K OHM J R5705,06 D0GDR00Z0002 M 0 OHM, 1/10W 0.063W R5707-09 D0GB150JA041 M 15 OHM J 1/10W PAVCA R4943 D0GA473JA015 M 47 OHM,...
  • Page 67 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R7407 D0GD101JA036 M 100 R7867 D0GD473JA036 M 47KOHM,J,1/10W OHM,J,0.25W R7868 D0GD471JA036 M 470 OHM,J R7408,09 ERJ12YJ474 M 470KOHM, 1/2W 0.25W R7410 D0GD474JA036 M 470KOHM,J,1/...
  • Page 68 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8309 D0GA750JA015 M 75 OHM, PAVCA R9901 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R8310 D0GA474JA015 M470KOHM, PAVCA R9902 ERJ2GEJ102X M 1K OHM J 1/4W J,0.063W R9903...
