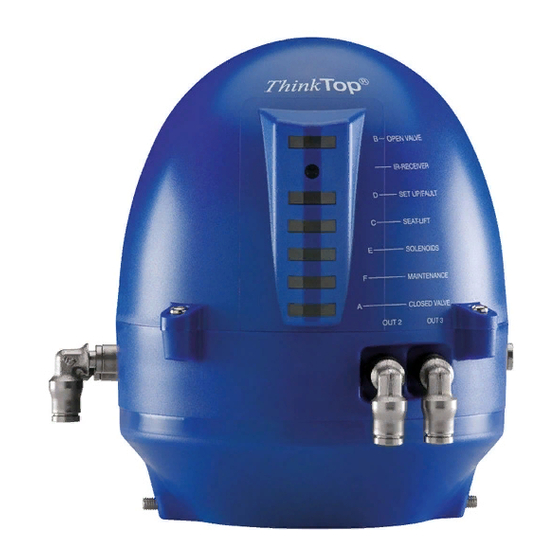

Alfa Laval ThinkTop Basic Instruction Manual
Intrinsically safe
Hide thumbs
Also See for ThinkTop Basic:
- Instruction manual (46 pages) ,
- Installation instruction (2 pages) ,
- Instruction manual (44 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Instruction Manual
Advertisement
Table of Contents
Related Manuals for Alfa Laval ThinkTop Basic
Summary of Contents for Alfa Laval ThinkTop Basic
- Page 1 Instruction Manual ® ThinkTop Basic Intrinsically Safe 2050-0029 Registered Design Registered Trademark ESE00810-EN5 2016-06 Original manual...
-
Page 3: Table Of Contents
2.1. Important information ................2.2. Warning signs ..................2.3. Safety precautions ................3. General information ................... 3.1. ThinkTop Basic Intrinsically Safe at a glance ..........3.2. Recycling information ................4. Technical specifications ................5. Installation ....................5.1. Installation on air actuators .............. -
Page 4: Ec Declaration Of Conformity
1 EC Declaration of Conformity The Designated Company hereby declare that Alfa Laval Kolding A/S Company Name Albuen 31, DK-6000 Kolding, Denmark Top Unit for Valve Control and Indication Address Designation +45 79 32 22 00 ThinkTop® Basic Intrinsically Safe Phone No. -
Page 5: Safety
2 Safety This manual highlights unsafe practices and other important information. Warnings are emphasised by means of special signs. All warnings in the manual are summarised on this page. Pay special attention to the instructions below in order to avoid severe personal injury or damage to the top unit. 2.1 Important information Always read the manual before using the top unit! WARNING... -
Page 6: General Information
The end user is responsible for performing the explosion risk assessment and classifying the group and the corresponding zone (dust or gas) in accordance with the Directive 1999/92/EC. The following table shows the ATEX evaluated Alfa Laval sanitary valves as ThinkTop Basic Intrinsically Safe can be installed on and in accordance with ATEX Directive 94/9/EC. -
Page 7: Technical Specifications
4 Technical specifications This manual highlights unsafe practices and other important information. Warnings are emphasised by means of special signs. All warnings in the manual are summarised on this page. Pay special attention to the instructions below in order to avoid severe personal injury or damage to the top unit. Solenoid valves 0 to 2 solenoid valves in each unit possible. -
Page 8: Installation
1. Fit the air fittings on actuator if not mounted. 2. Fit the activator on the stem and tighten carefully with a spanner. 2050-0015 Step 3 1. Place the ThinkTop Basic Intrinsically Safe on top of the actuator. 2. Make sure X-ring is mounted. 2050-0016... - Page 9 Pay special attention to the instructions below in order to avoid severe personal injury or damage to the top unit. Step 4 1. Ensure that the unit is correctly mounted by pressing down on top of the ThinkTop Basic Intrinsically Safe. 2. Cross-tighten the two Allen screws carefully in the two opposite directions.
-
Page 10: Air Connections
Pay special attention to the instructions below in order to avoid severe personal injury or damage to the top unit. Step 7 1. Install cable (if not present) through the cable gland. 2. Connect the electrics of the ThinkTop Basic Intrinsically Safe (see page11 “Electrical connection, internal”). 2050-0044 Step 8 Make sure the cable gland is fully tightened. -
Page 11: Electrical Connection, Internal
5.3 Electrical connection, internal Electrical connection Hazardous area - Zone 1 Safe area The ThinkTop Basic Intrinsically Safe must always be installed in an intrinsically safe circuit. Sensor The two inductive NAMUR sensors must be connected to a certified intrinsically safe circuit (e.g. Zener barrier) for... -
Page 12: Maintenance
6 Maintenance Read the instructions carefully. Handle scrap correctly. Always have spare X-rings in to hand. 6.1 Dismantling of ThinkTop Basic Intrinsically Safe Step 1 1. Untighten the two Allen screws and remove the ThinkTop from the actuator 2. Remove X-ring and replace it... - Page 13 6 Maintenance Read the instructions carefully. Handle scrap correctly. Always have spare X-rings in to hand. Step 4 1. To dismantle the adapter (the lower part of the ThinkTop bracket from base (the middle part), unscrew the three screws 2. Turn the lower part clockwise slightly and pull 3.
-
Page 14: Assembly Of Thinktop Basic Intrinsically Safe
Read the instructions carefully. Handle scrap correctly. Always have spare X-rings in to hand. 6.2 Assembly of ThinkTop Basic Intrinsically Safe Step 1 Place sensor frame in base on top of the four washers, two under each side, and tighten screws (torque: 1 Nm). - Page 15 Handle scrap correctly. Always have spare X-rings in to hand. Step 4 1. Replace the grey X-ring. 2. Replace cover of ThinkTop Basic Intrinsically Safe and tighten the four screws (0.6 Nm). 2050-0042 Step 5 1. Replace the black X-ring.
-
Page 16: Parts List And Service Kits
7 Parts list and service kits The diagrams illustrate ThinkTop Basic Intrinsically Safe. The items refer to the parts lists in the following sections 7.1 Diagrams for ThinkTop Basic Intrinsically Safe 225 mm (9”) TD 804-034 2053-0000 ø137 mm (5½”) -
Page 18: Thinktop Basic Intrinsically Safe
7 Parts list and service kits The diagrams illustrate ThinkTop Basic Intrinsically Safe. The items refer to the parts lists in the following sections 7.2 ThinkTop Basic Intrinsically Safe... - Page 19 7 Parts list and service kits The diagrams illustrate ThinkTop Basic Intrinsically Safe. The items refer to the parts lists in the following sections Parts list Pos. Denomination Shell, complete Washer Frame cpl. with sensors Solenoid valve (3/2) PT screw...
- Page 20 © Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed permission of Alfa Laval Corporate AB.
