User Manual
John Lewis

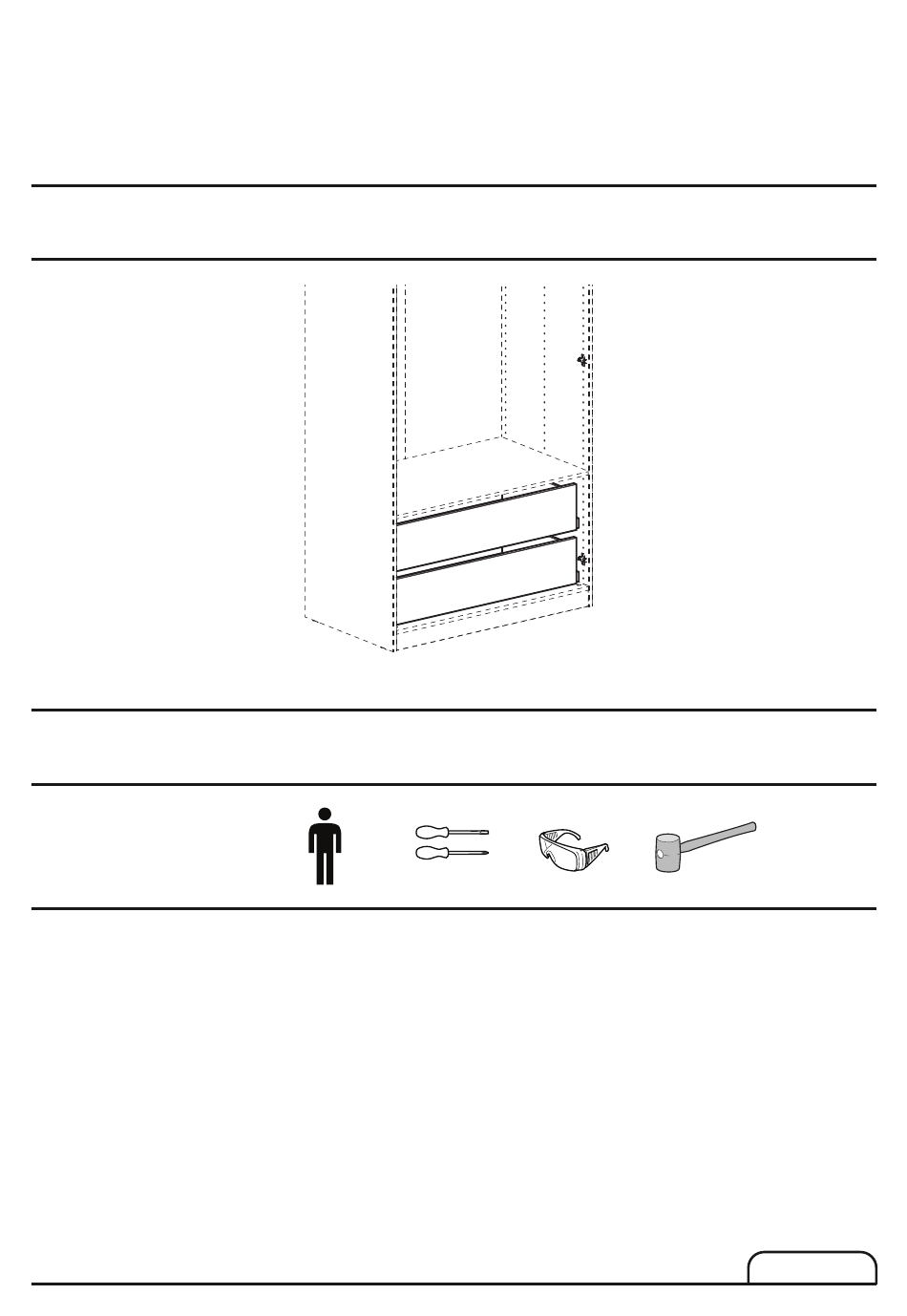

Mixit internal drawers double L.100
Stock Code: 80323104
Thank you for purchasing this Mixit internal drawers. Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product.
PRE-ASSEMBLY PREPARATION
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
Screwdriver
Eye protection
Hammer
Please check the pack contents before attempting to assemble this product.A full checklist of compo-
nents is given in this leaflet. If any components are missing, please contact the John Lewis Helpline.
TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 45 MINUTES to assemble.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
If you are missing some fittings please contact our spare parts helpline on 0330 005 9435.
Opening hours are 9am - 5pm Monday to Friday.
Page 1
MXT 06 rev. 03 - 30/03/16
Advertisement
Related Manuals for John Lewis Mixit
Summary of Contents for John Lewis Mixit
- Page 1 John Lewis Mixit internal drawers double L.100 Stock Code: 80323104 Thank you for purchasing this Mixit internal drawers. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. PRE-ASSEMBLY PREPARATION Please ensure instructions are read in full before attempting to assemble this product.
- Page 2 Fittings checklist 30mm Metal dowel x 8 Short cam lock x 8 Wooden dowel x 8 40mm screw x 12 30mm Screw x 8 Fixing block x 4 Threaded bush x 8 11mm Euroscrew x 12 15mm Screw x 16 Pair of rollers 2 Page 2 MXT 06 rev.
-
Page 3: Parts Checklist
Parts checklist Page 3 MXT 06 rev. 03 - 30/03/16... - Page 4 Step by step assembly instructions Step One Insert 8x threaded bush (G) into the holes on side panels as shown, with the help af a hammer. Page 4 MXT 06 rev. 03 - 30/03/16...
- Page 5 Step by step assembly instructions Step Two Fix 4x spacers (6) to side panels through holes shown in the view using 12x screws (D). Page 5 MXT 06 rev. 03 - 30/03/16...
- Page 6 Step by step assembly instructions Step Three Fix 4x runner parts (Z1) to the spacers (6) through holes shown in the detail view using 12x euroscrews (H) and 4x screws (I). Front side Page 6 MXT 06 rev. 03 - 30/03/16...
- Page 7 Step by step assembly instructions Step Four ttach 4x wooden dowels (C) into the pre-drilled holes on drawer sides (2) (3) as shown, repeat for all drawers. Place the cam lock (B) into the holes on drawer sides (2) (3) as shown, arrow pointing towards the bolt, repeat for all drawers.
- Page 8 Step by step assembly instructions Step Six Slide drawer bottom panel (1) into the drawer box grooves. Position drawer front (5) onto drawer box, turn locking nuts (B) clockwise to lock. repeat for all drawers Step Seven Fix 2x runner part (Z2) onto the drawer using 6x screws (I) repeat for all drawers.
- Page 9 Step by step assembly instructions Step Eight Tilt the drawer as shown. Slide the drawer box along the runner parts until the stop. Wheels and runner parts have to be correctly matched as shown. Recommended loading capacity for drawer: 10 Kgs Page 9 MXT 06 rev.
-
Page 10: Care And Maintenance
It is recommended that before moving a heavy object to a new location it is completely dis-assembled to avoid personal injury or damage to the furniture.Please be careful to retain all fittings when doing this. PLEASE KEEPTHESE INSTRUCTIONS FOR FUTURE REFERENCE John Lewis Partnership 171Victoria Street London SWIE 5NN www.johnlewis.com Page 10...
