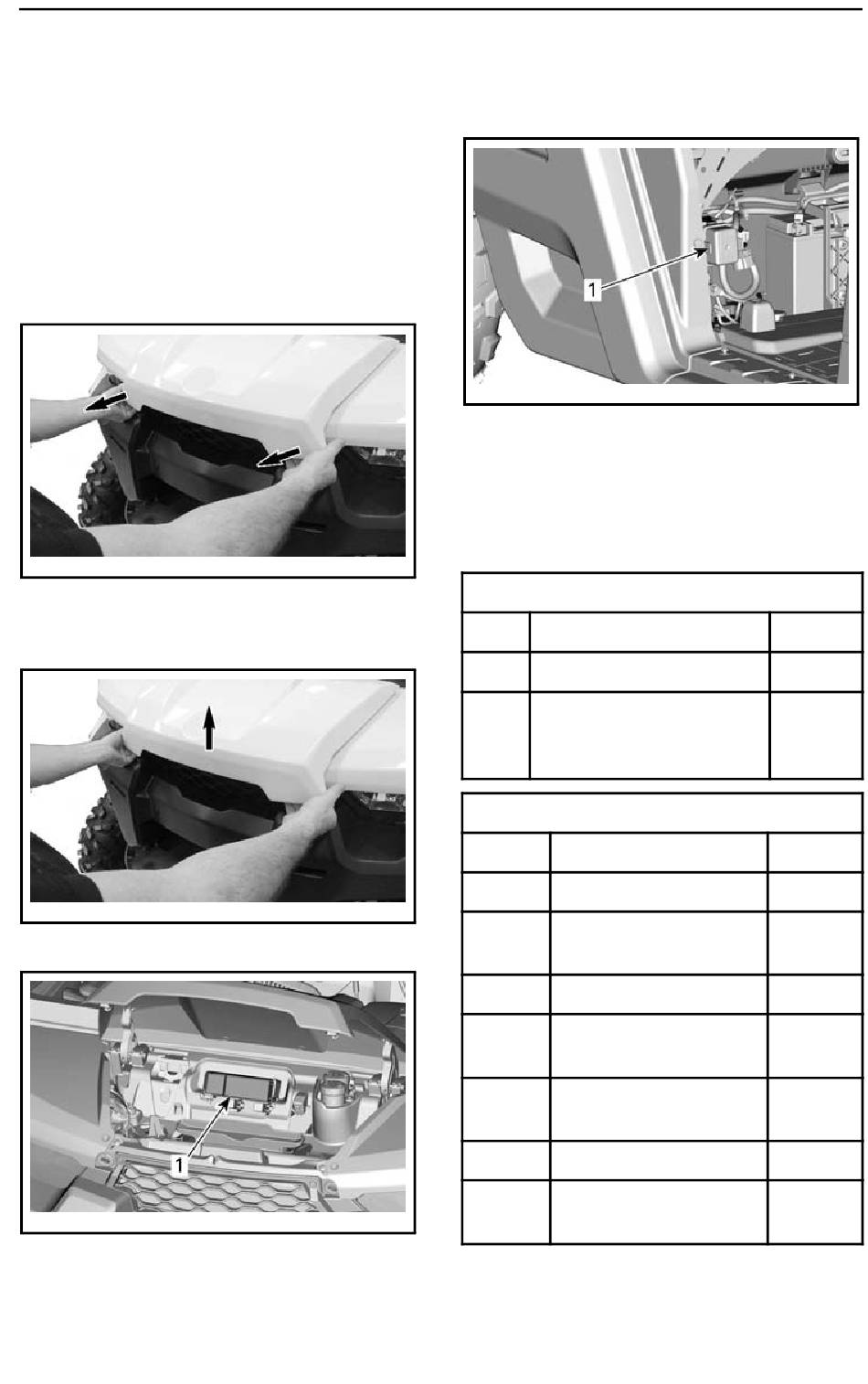

Fuse Box Location
The vehicle is equipped with two fuse
boxes. The front fuse box is located
under the front service cover and the
rear fuse box is located under RH pas-
senger seat near battery.
To open front service cover, pull on
front edges of service cover to unlock
mechanism
tmo2016-010-060_a
PULLING ON FRONT SERVICE COVER EDGE.
Lift service cover.
tmo2016-010-060_b
LIFTING FRONT SERVICE COVER EDGE.
tmo2016-010-083_a
FRONT SERVICE COVER OPENED
1. Front fuse box
NOTE: Use screwdriver to remove
DPS and Accessories fuse cover.
tmo2016-010-084_a
BATTERY COVER REMOVED
1. Rear fuse box
NOTE: Fuse link 1 connected to
starter solenoid.
Fuse Box Description
SINGLE FUSES AT FRONT
NO
PF3
PF4
NO
F7
F10
F11
F12
F14
F16
F18
______________
MAINTENANCE PROCEDURES
DESCRIPTION
DPS
Accessory post
(Under dash terminal
block)
FRONT FUSE BOX
DESCRIPTION
4WD actuator
T vehicle (accessory
post)
Headlamps
DC3/12V accessory
outlet 1
12 V accessory
outlet 2
Tail lamps
Oxygen sensor
Emission control
RATING
40 A
40 A
RATING
10 A
40 A
20 A
10 A
10 A
10 A
10 A
