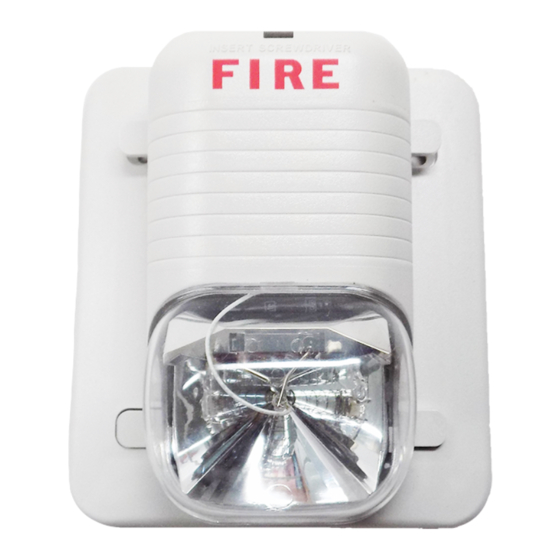

System Sensor SpectrAlert S1224MCW Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
SpectrAlert Selectable Output Strobes,
Horns, and Horn/Strobes
For use with the following models:
Strobes - 12/24 volt: S1224MC, S1224MCW, S1224MCSP, S1224MCSPW, S1224MCP, S1224MCPW
Combo - 12/24 volt: P1224MC, P1224MCW, P1224MCSP, P1224MCSPW, P1224MCP, P1224MCPW
Horns - H12/24, H12/24W
Suffix "W" indicates white housing models. Suffix "SP" indicates "FUEGO" (Spanish word for "FIRE") lettering on housing.
Suffix "P" indicates plain housing (no lettering).
The Products to which this manual applies may be covered by one or more of the
following U.S. Patent numbers: 5,914,665; 5,850,178; 5,598,139; 6,049,446; 5,593,569, 6,133,843; 6,522,261

Specifications

Automatic selection for 12 or 24 volt rated operation (DC or Full-Wave Rectified)
Electrical
For Horns, Strobes, and Horn/Strobes
Voltages:
Operational Voltage Ranges:
Synchronous Applications
with MDL Module:
NOTE: Horn units will operate on walk tests with on-time durations of .25 sec. or greater.
Flash Rate:
Operating Temperature:
Selectable Light Outputs:
12/24 Volt Applications:
24 Volt Application:
Sound Output:
Listings:
Note for Strobes:
The models S1224MC, S1224MCW, S1224MCSP, S1224MCSPW, S1224MCP, S1224MCPW, P1224MC, P1224MCW, P1224MCSP, P1224MCSPW, P1224MCP, and
P1224MCPW incorporate a new patent-pending voltage booster design that has a more consistent flash bulb voltage over the range of candela selections. The
benefit to the customer is a high quality strobe device.
General Description
The SpectrAlert series notification appliances are designed
to meet the requirements of most agencies governing these
devices, including: NFPA, ADA, The National Fire Alarm
Code, UL, ULC, FM, CSFM, MEA. Also, check with your
local Authority Having Jurisdiction for other codes or stan-
dards that may apply.
The SpectrAlert series can be installed in systems using 12-
or 24-volt panels having DC or full-wave rectified (FWR)
power supplies. The series can also be installed in systems
requiring synchronization (module MDL or compatible
equivalent required) or systems that do not require syn-
chronization (no module required).
NOTICE: This manual shall be left with the owner/user of
this equipment.
D900-28-00
Regulated 12 DC/FWR and Regulated 24 DC/FWR
8-17.5 Volts and 16-33 Volts
9-17.5 Volts and 17-33 Volts
1 flash per second
32° F to 120° F (0° C to 49° C)
All candelas are selectable via a manual slide switch.
15 or 15/75 candela
30, 75, 110 candela
15/75 is listed at 15 candela per UL 1971 but will provide 75 candela on axis (straight
ahead). 15, 30, 75, or 110 are rated for that candela.
Sound output levels are established at Underwriters Laboratories in their reverberant
room. Always use the sound output specified as UL Reverberant Room when compar-
ing products.
UL S5512 (Strobe); UL S4011 (Combo)
Do not exceed: 1) 8-17.5 or 16-33 voltage range limit; 2) maximum number of 70
strobe lights when connecting the MDL Sync module with a maximum line imped-
ance of 4 ohms per loop and; 3) maximum line impedance as required by the fire
alarm control manufacturer.
1
3825 Ohio Avenue, St. Charles, Illinois 60174
Fire Alarm System Considerations
Temporal and Non-Temporal Coded Signals:
The American National Standards Institute and the National
Fire Alarm Code require that all horns used for building
evacuation installed after July 1, 1996, must produce
Temporal Coded Signals.
Signals other than those used for evacuation purposes do
not have to produce the Temporal Coded Signal. Temporal
coding is accomplished by interrupting a steady sound in
the following manner:

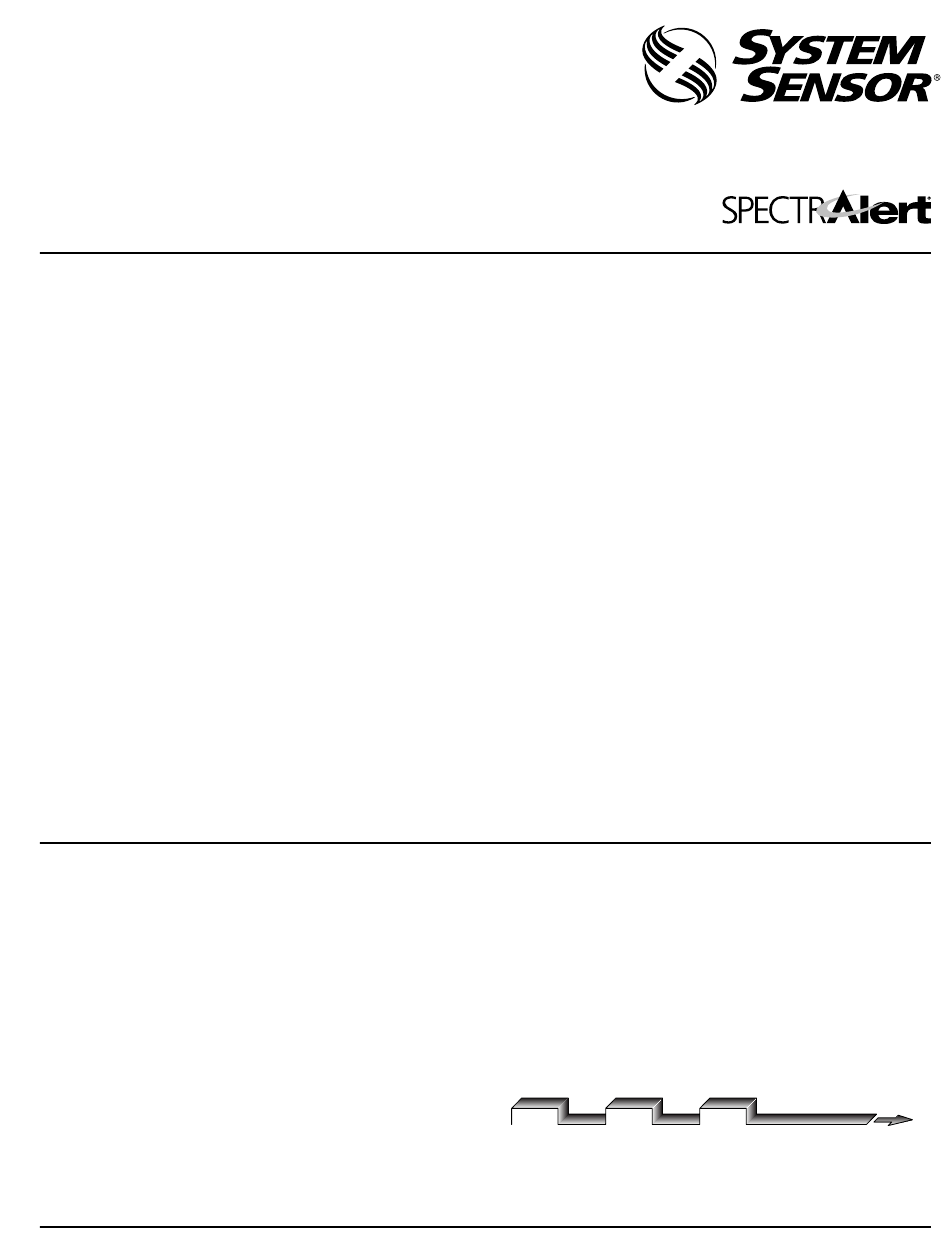

1 / Sec. 1 / Sec. 1 / Sec. 1 / Sec.
2 2 2 2
On Off On Off
1-800-SENSOR2, FAX: 630-377-6495
www.systemsensor.com
1 / Sec. 1 1 / Sec.
Repeats
2 2
On Off
I56-1796-008R
