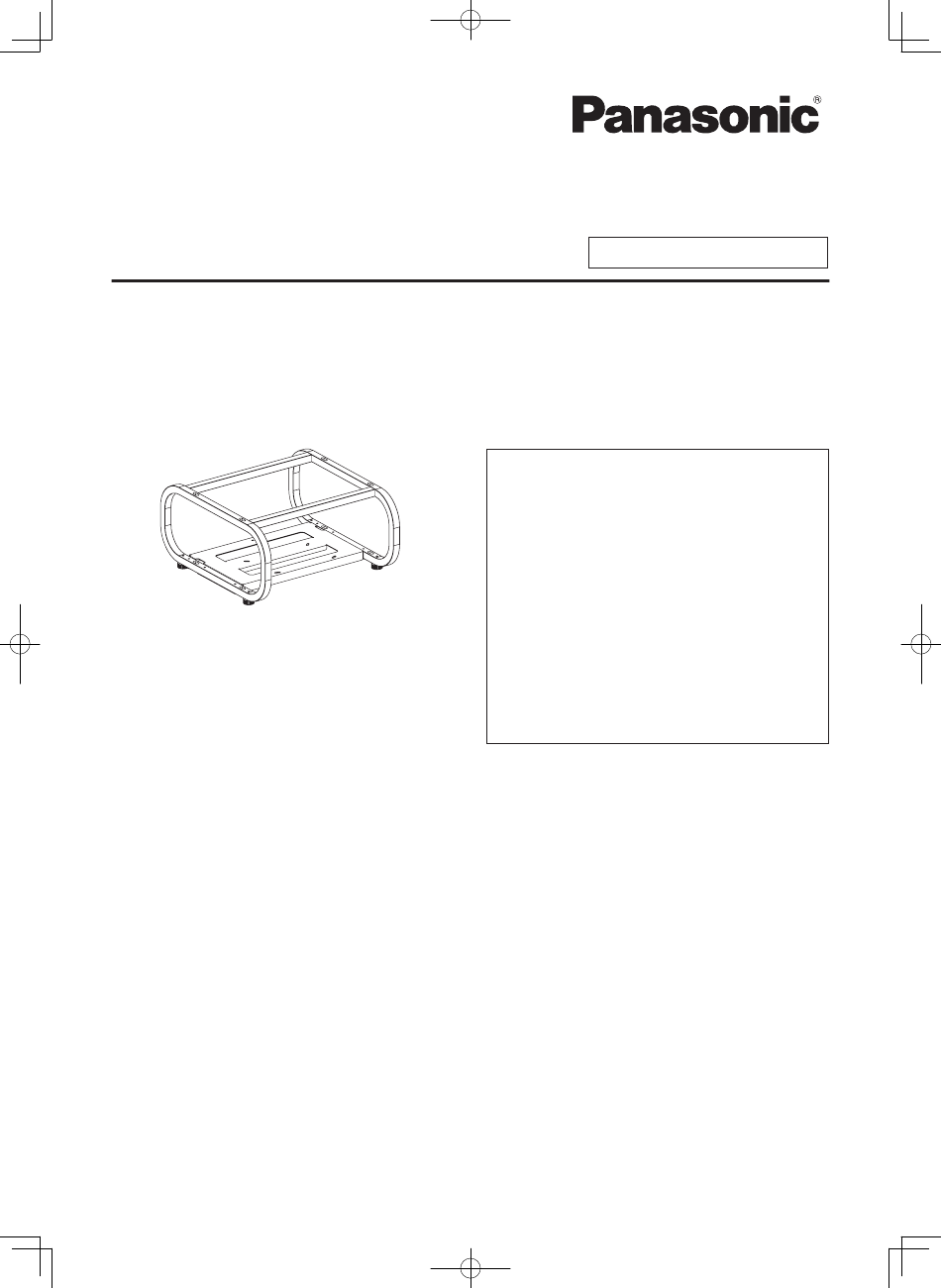

Projector Frame for projectors
Thank you for purchasing a Panasonic product.
■ Read these instructions completely and use this product correctly and safely.
■ Before using this product, be sure to read "Precautions with regard to safety" (page 2).
■ Please save this manual for future use.
SS0710NK3127 -PJ
Printed in Japan
Operating Instructions
Model No.
Contents
Important Safety Notice .............................. 2
Product Description .................................... 3
Finished assembly diagram ........................ 4
Projection distance .................................... 5
Installing the projector ................................. 9
Installing the upper projector ........................ 10
Adjusting the upper projector ........................ 11
Dimensions ............................................. 13
Specifications .......................................... 13
Commercial Use
ET-PFD310
.................. 4
TQZJ296-3
Advertisement
Table of Contents
Related Manuals for Panasonic ET-PFD310
Summary of Contents for Panasonic ET-PFD310
-
Page 1: Table Of Contents
Dimensions ……………………………………… 13 Specifications …………………………………… 13 Thank you for purchasing a Panasonic product. ■ Read these instructions completely and use this product correctly and safely. ■ Before using this product, be sure to read “Precautions with regard to safety” (page 2). -
Page 2: Important Safety Notice
This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most performance out of new product, and that you will be pleased with your Panasonic Projector Frame. The serial number of your product may be found on its back. You should note it in the space provided below and retain this booklet in case service is required. -
Page 3: Product Description
Product description This frame is exclusively for the installation of dual projectors. The frame is made up of the following components. Before assembling the frame, confirm that all components have been provided. ■Structural components Parts name Sub-components (number of parts) Frame Hex-head bolt, captive washer(M6×16) ……………... -
Page 4: Finished Assembly Diagram
Finished assembly diagram Û : Another separate frame is required when stacking two frame together. Upper projector Lower projector Assembly procedure (example of dual installation) z Prepare the tools. Torque wrench 1. Preparation Screwdriver Soft cloth or other soft surface z Check the strength of the setting-up location. -
Page 5: Projection Distance
Projection distances When planning the projector and screen geometry, refer to the following figures and table on the next page for reference. After the projector is roughly positioned, picture size and vertical picture positioning can be finely adjusted with the powered zoom lens and lens shifting mechanism. Side View [Units : mm(")] Screen... - Page 6 Projection distances (Continued) ■Projection distance according to the projector lens. For the projection distances for projection [Lenses (optional)], refer to the operating instructions [Installation] provided with The projector. Or check the diagonal dimension (m) of your screen and calculate the projection distance using the following formula.
- Page 7 Projection distances (Continued) Units : m PT-DS12K series / PT-DS8500U and PT-DS100XE Model number of Aspect projection lens Projection distance (L) formula ratio (Throw ratio) Minimum Maximum ET-D75LE1 L = 1.2087 × Screen diagonal (m) – 0.0760 L = 1.6142 × Screen diagonal (m) – 0.1004 (1.5-2.0:1) 16:9 L = 1.3150 ×...
- Page 8 Projection distances (Continued) Units : m PT-DW11K series / PT-DW8300U and PT-DW90XE Model number of Aspect projection lens Projection distance (L) formula ratio (Throw ratio) Minimum Maximum ET-D75LE1 16:9 L = 1.3504 × Screen diagonal (m) – 0.0760 L = 1.8031 × Screen diagonal (m) – 0.1004 (1.5-2.0:1) (2.0-2.7:1) L = 1.6496 ×...
-
Page 9: Installing The Projector
Installing the projector Installation procedure Remove attachment plate from frame. Adjustment feet Attachment plate Ú Place the frame with its base facing upwards, remove the six hex-head bolts (M6 X 16) and then remove the attachment plate from the frame. Attention z The removed bolts are needed for re-installation so do not lose them. -
Page 10: Installing The Upper Projector
Installing the upper projector Installation procedure z Another separate frame is required when stacking two frames together. Refer to [Installing the projector] for the installation procedure of a frame and a projector. (page 9) Adjust the adjustment feet of the bottom frame so that the lower projector is horizontal. -
Page 11: Adjusting The Upper Projector
Adjusting the upper projector Follow the steps below to adjust the angle of the upper projector so that the image projected on the screen matches that of the lower projector whereby the screen size, position, and focus is already adjusted to the screen. Only the angle of the upper projector is adjustable. - Page 12 Adjusting the upper projector (Continued) Adjusting right-left inclination Turn the four adjustment nuts to adjust the right-left inclination and correct the rotational distortion on the projection screen. Make sure to turn the front and rear adjustment nuts on the right, and the front and rear adjustment nuts on the left, by the same amount.
-
Page 13: Dimensions
Dimensions 656 (25-13/16") (Units : mm(")) 410 (16-5/32") 568 (22-3/8") 123.3 (4-27/32") Specifications Vertical tilt correction angle : ± 1.5 ° Adjustable range Horizontal tilt correction angle : ± 1.5 ° Horizontal swing correction angle : ± 1.5 ° Width 596 mm (23-15/32") Assembled external dimensions Height 322.5 mm (12-11/16") Depth 656 mm (25-13/16") - Page 14 Dispose of the packaging materials properly after taking the product out of it. ■Disposal When discarding this product, please contact your local authorities or dealer and ask for the correct method of disposal. Panasonic Corporation Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2010...
