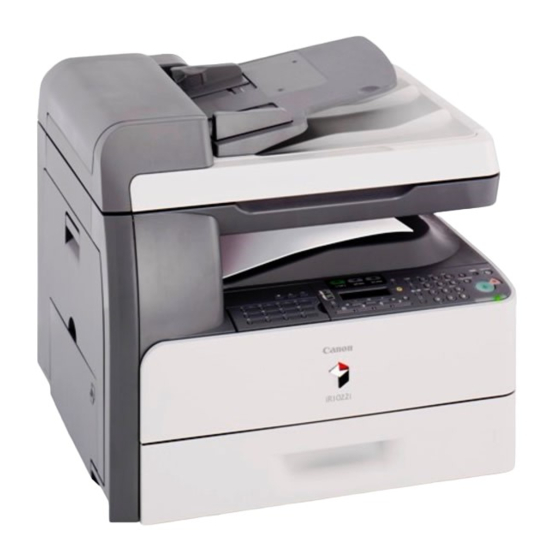

Canon iR1018 Series Installation Procedure

Hide thumbs Also See for iR1018 Series:

Advertisement

Installation Procedure
iR1018/1019/1022/1023 Series
Sep 22 2006

Advertisement

loading

Summary of Contents for Canon iR1018 Series

  • Page 1 Installation Procedure iR1018/1019/1022/1023 Series Sep 22 2006...
  • Page 3 Canon will release technical information as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition of this manual. The following paragraph does not apply to any countries where such provisions are inconsistent with local law.
  • Page 4 Introduction Symbols Used This documentation uses the following symbols to indicate special information: Symbol Description Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning. Indicates an item requiring care to avoid electric shocks. Indicates an item requiring care to avoid combustion (fire). Indicates an item prohibiting disassembly to avoid electric shocks or problems.
  • Page 5 Introduction The following rules apply throughout this Service Manual: 1. Each chapter contains sections explaining the purpose of specific functions and the rela- tionship between electrical and mechanical systems with reference to the timing of operation.  In the diagrams, represents the path of mechanical drive; where a signal name accom- panies the symbol , the arrow indicates the direction of the electric signal.
  • Page 7: Table Of Contents

    Contents Contents Chapter 1 Installation Procedure 1.1 Installing the Card Reader..........................2 1.1.1Points to Note ..............................2 1.1.2Checking the Contents..........................2 1.1.3Installation Procedure ..........................4 1.1.4Registering the Card IDs ........................... 10...
  • Page 8 Contents...
  • Page 9: Chapter 1 Installation Procedure

    Chapter 1 Installation Procedure...
  • Page 10: Installing The Card Reader

    Chapter 1  1.1 Installing the Card Toothed washer 1 pc. Reader Repeating harness A 1 pc. 1.1.1 Points to Note 0013-4619 / / / / iR1018 / iR1018J / / iR1022A / iR1022F / The TP screw (M3x12) and toothed washer are not iR1022i / iR1022iF / used.
  • Page 11 Chapter 1 The haeness cover (base+lid) and repeating haerness , and binding screw (M4x6) are not used.
  • Page 12: 3Installation Procedure

    Chapter 1  6) To release the hooks at the lower right of the ma- chine, float the right side of the machine about 5 cm 1.1.3 Installation Proce- above the edge of the desk and so on. dure 7) Release the two claws [1] at the rear back of the 0013-4622 right cover.
  • Page 13 Chapter 1 ing the three hooks [3] at the bottom. F-1-6 Smooth the edges of the interface cable hole so that the canle is not damaged. F-1-5 12) Attach the right cover. 2. Installation of a card reader 11) Using a nipper, remove the precut portion [1] of 1) Remove the screw [1] from the card reader.
  • Page 14 Chapter 1  MEMO: 3) Insert the card reader [2] harness and ground cable The removed screw will be used later. into the hole in the supplied card reader mount [1]. Using the screw [3] removed in step 1) of "2. Instal- lation of the card reader", secure the card reader to 2) Remove the screw [1] securing the ground cable, the card reader mount.
  • Page 15 Chapter 1 F-1-12 F-1-14 6) Connect the connector [1] of the supplied repeating harness A to the connector [2] on the card reader. 8) Remove the two blind cover [1] from the reader left Using the supplied binding screw (M4x6), secure cover.
  • Page 16 Chapter 1  When tightening the screws, take care not to damage the repeating harness A. 11) Slide the card reader cover [1] to attach it to the card reader mount. F-1-19 13) Connect the connector of the repeating harness A [1] to the connector J317 [2] on the image processor PCB.
  • Page 17 Chapter 1 F-1-22 The shaft of the reader motor [3] is rotating above the repeating harness A. To prevent the relay harness from being damaged, be sure to bind it up. 16) Attach the rear cover.
  • Page 18: 4Registering The Card Ids

    Chapter 1  1.1.4 Registering Card IDs 0013-4623 / / / / iR1018 / iR1018J / / iR1022A / iR1022F / iR1022i / iR1022iF / After installing the card reader-E1, register the card numbers to be used in the service mode of the iR body. If they are not registered, cards will not be recognized when inserted.
  • Page 19 Sep 22 2006...
