- Page 1 Nitro Duet Transport Chair / Rollator Item # RTL10266DT www.drivemedical.com...

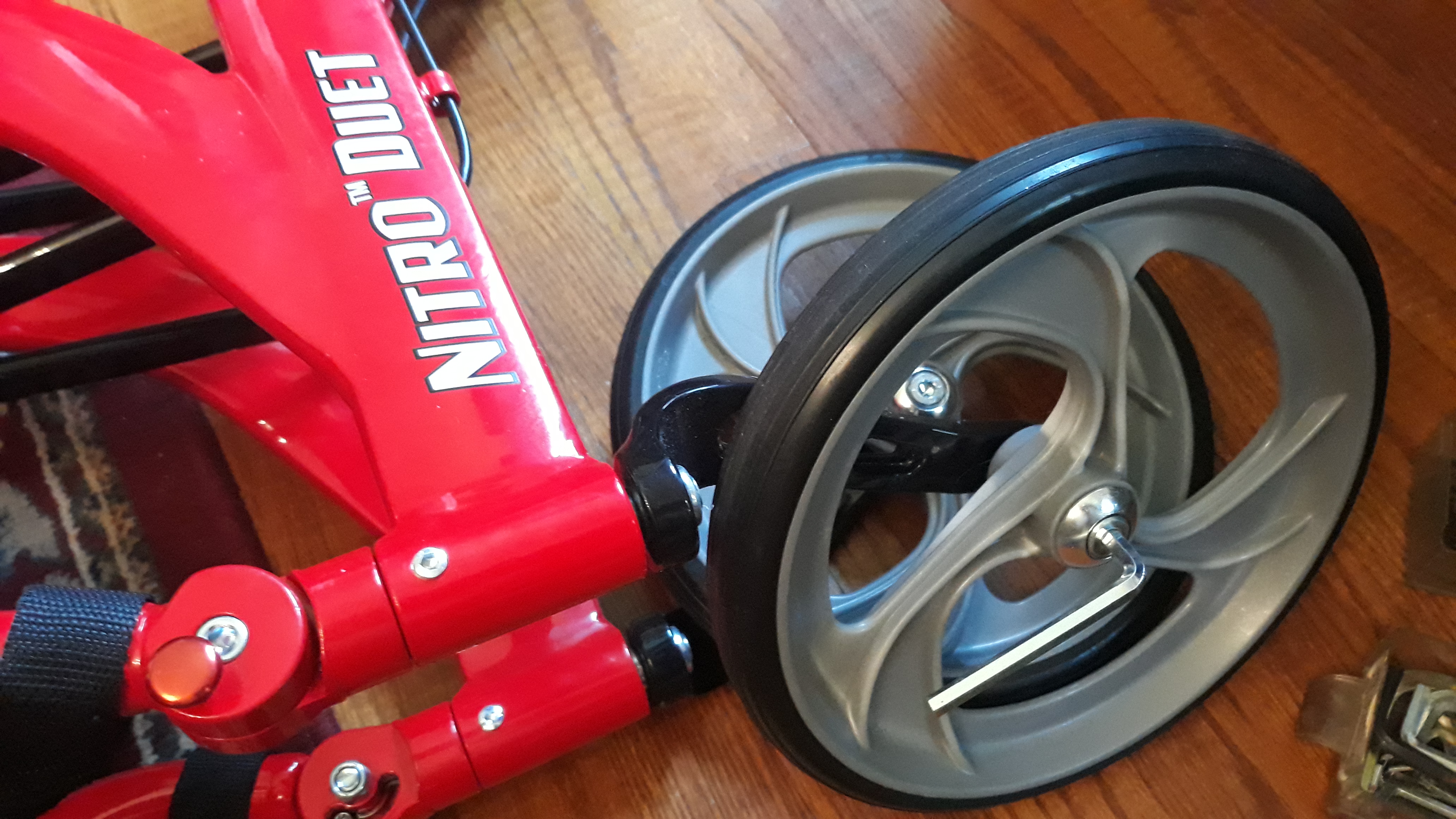

- Page 2 Parts List WEIGHT CAPACITY: 300 LBS (136 KG) 7. Front wheel Handgrip 8. Brake adjust screw 2. Brake lever 9. Rear wheel 3. Handle height adjustment button 10. Armrest 4. Backrest 11. Armrest trigger 5. Seat 12. Folding footrest 6. Bag Introduction Thank you for the purchase of your new Nitro Duet Transport Chair and Rollator.
- Page 3 Unfolding The Nitro Duet Position the Nitro Duet on its wheels. Open the Nitro Duet. Press the tubes attached to the seat downwards until they lock into position (Figure 1). Height Adjustment Press and hold down the red release buttons. Simultaneously move the handgrip up or down.
- Page 4 Adjustment of Brakes The brake system fitted on this rollator complies with the manufacturer’s quality standards. The brake system has been preset (adjusted) to the best performance settings. To better suit you personally, please follow the instructions set out below. You may need to adjust the brake systems from time to time as they will wear out with normal use.
- Page 5 Instructions for use as a Transport Chair Flip the backrest backwards and the armrests up (Figure 9). Press and hold the red button on the footrest and move the footrest down. Repeat for the other side (Figure 10). Transport Chair Seated Position Position the Nitro Duet on a flat surface.
- Page 6 Safety Instructions Please make sure the Nitro Duet is fully opened and the seat is down. 2. Be sure the handgrips are at equal height. 3. Test the brakes before operating the Nitro Duet. When wheels are locked (see illustrations for locking and releasing locks previously in this manual), lock bar on rear wheels should prevent wheels from rotating.
- Page 7 Drive Technical Support at (866) 621-4933. Lifetime Limited Warranty The frame of your Drive Medical product is warranted to be free of defects in material and workmanship for the lifetime of the original consumer purchaser. The brake handle and housing are covered for a period of 5 years of the original consumer purchaser.
- Page 8 Rev2.03.08.18...
