- Page 1 DENTAL VACUUM SYSTEM OPERATION, MAINTENANCE AND USER MANUAL...
-
Page 2: Technical Description

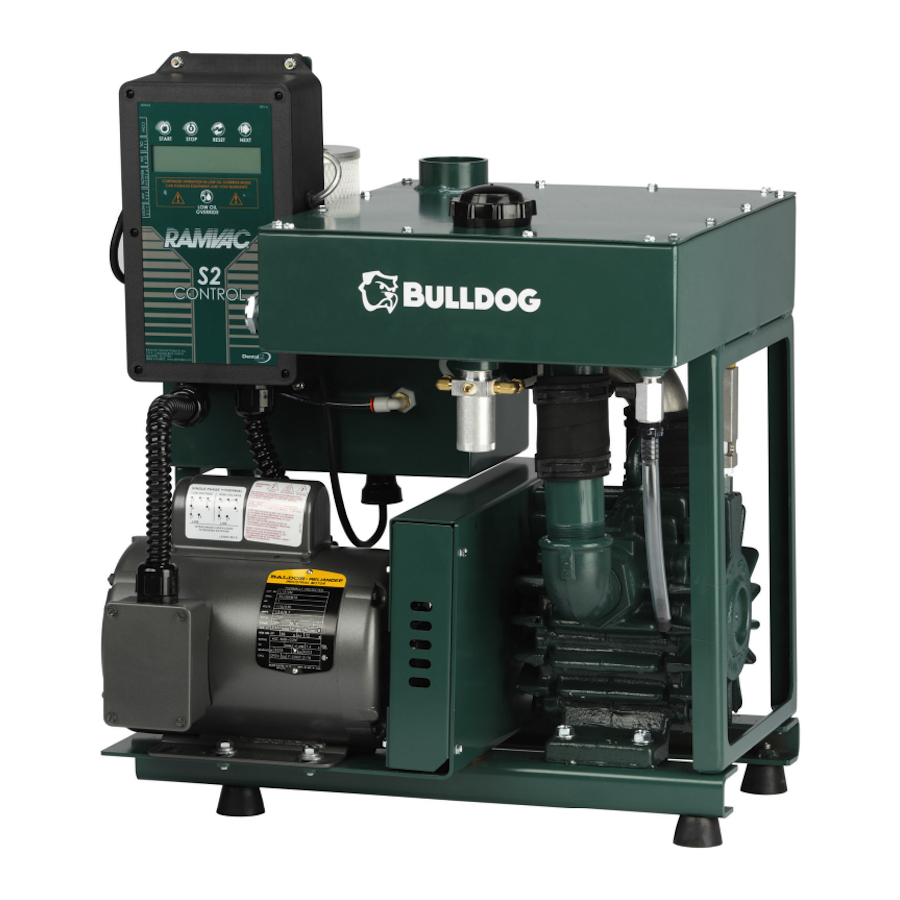

TECHNICAL DESCRIPTION: The RAMVAC Bulldog QT Vacuum System utilizes an oil lubricated, rotary vane, positive displacement pump to provide a reliable vacuum source for the Dental office. This vacuum unit is intended solely for the removal of dental waste material from the oral cavity during dental proce- dures. -
Page 3: Safety And Regulatory Information
RAMVAC Bulldog ® User Guide Safety and Regulatory Information RAMVACs meet the most current and highest safety standards. RAMVAC Vacuum Units are UL 2601-1 Listed, comply with NFPA 99C Level 3 vacuum requirements, and are manufactured in an FDA registered, and ISO 13485:2003 certified facility. Here’s what you need to do to insure the safety potential of this equipment is achieved: •... -
Page 4: Emc Information
User Guide RAMVAC Bulldog ® EMC INFORMATION Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual. Portable and mobile RF communications equipment can affect Medical Electrical Equipment.” The use of Accessories, transducers, and cables other than those specified, with the exception of transducers and cables sold by the Manufacturer of this device as replacement parts for internal components, may result in increased Emissions or decreased Immunity of the Bulldog. -
Page 5: Emc Information
RAMVAC Bulldog ® User Guide EMC INFORMATION Guidance and manufacturer’s declaration –electromagnetic immunity The Bulldog is intended for use in the electromagnetic environment specified below. The customer or the user of the Bulldog should assure that it is used in such an environment. Compliance –... -
Page 6: Table Of Contents
User Guide RAMVAC Bulldog ® Table of Contents Technical Description Page 2 Notifications and Cautions Page 2 Safety and Regulatory Information Page 3 Operating and Shipping Conditions Page 3 EMC Information Page 4-5 Table Of Contents Page 6 Electrical Ratings Page 7 System Schematic Page 8... -
Page 7: Electrical Ratings
RAMVAC Bulldog ® User Guide Electrical Ratings 60 Hz Models MOTOR THHN Wire Size PROTECTION MODEL Hp (kW) Phase Voltage Max Amps 50 ft. 100 ft. Breaker Fusetron 115v 12 ga. 10 ga. 20 amp FRN 25 Bulldog QT 1, 2 (104-127) 1.0 (0.7) 60 Hz... - Page 8 User Guide RAMVAC Bulldog ® Electrical Connection S2 Logic Board LINE IN MOTOR LINE IN MOTOR GROUND Page 8 1062DOC Rev C Effective date: 6-Mar-14...
- Page 9 RAMVAC Bulldog ® User Guide 1062DOC Rev C Page 9 Effective date: 6-Mar-14...
-
Page 10: S2 Features
User Guide S2 Features RAMVAC Bulldog ® S2 Features for Bulldog • Easy to read digital display. • Monitors the vacuum pressure and displays it. Digital pressure sensor accuracy is +/- 0.25% FSS BFSL (Full Scale Span Best Fit Straight Line). Total error band of 2% full scale span maximum. •... -
Page 11: Maintenance
RAMVAC Bulldog ® Maintenance User Guide Maintenance Overview RAMVAC preventive maintenance is simple, clean, and inexpensive, however we recommend that all maintenance and service be provided by a trained dealer service technician. It can help ensure your RAMVAC provides years of predictable performance. Key points for trouble-free operation: •... -
Page 12: Cleaning The Vacuum System
User Guide Maintenance RAMVAC Bulldog ® Cleaning the Vacuum System Clean vacuum lines daily. Just before turning off the RAMVAC, rinse vacuum lines first with hot water -- approximately one quart through each high volume line and a few ounces through each saliva ejector line. Then aspirate a few ounces of a dental vacuum line cleaner through each vacuum line. -
Page 13: Lubrication System Components
RAMVAC Bulldog ® Maintenance User Guide Lubricating System Components One reason your RAMVAC will outlast every other dental vacuum system is its “Lubrication System”. The “Lubrication System” supplies oil drop by drop through “Drippers” to the pump. Used oil is discharged back into the Oil Reservoir as a mist, separated from the exhaust, filtered and recirculated. -
Page 14: Oil Change
User Guide Maintenance RAMVAC Bulldog ® Oil Change “ Change Oil ” is displayed on the S2 Electrols every 2000 hours . Procedure: 1. Drain Used Oil · Place empty oil container (minimum 4 quarts) under oil drain tube · Open oil drain valve. -
Page 15: Low Voltage Remote Switching
RAMVAC Bulldog ® Switching Options User Guide Low Voltage Remote Switching The RAMVAC can be run continuously throughout the workday. To avoid wasting electricity, turn off the RAMVAC if vacuum will not be needed for an hour or more. Note: The tank will drain only when no vacuum is present – Vacuum must be turned off at least once per day! Non-Illuminated remote Illuminated Remote Panel... - Page 16 User Guide RAMVAC Bulldog ® Moisture in Filtrols Moisture in Filtrols Faults Are Not Normal. This Fault occurs if liquid or foam is present in the “Filtrols” (normally a dry location). Operating while there is a Moisture in Filtrols Fault Can Damage Equipment and Void the Warranty. If a Moisture Fault recurs, call your dealer or RAMVAC.
-
Page 17: Troubleshooting
RAMVAC Bulldog ® Troubleshooting User Guide Problem Possible Cause Corrective Action* Tank Drain Valve Blocked Open Clean Tank Drain Valve Clogged Vacuum Line Locate and remove clog Low or No Vacuum Filtrols Check Valve Not Sealing Repair or replace Check Valve (motor running okay) Vacuum Leaks Locate and fix leaks... -
Page 18: Warranty
User Guide RAMVAC Bulldog ® RAMVAC Product Support Services ® The DentalEZ Group and its employees are proud of the products we provide to the dental community. We stand behind these products with a warranty against defects in material and workmanship as provided below. In the event that you experience difficulty with the application or operation of any of our products, please contact our customer service department at our expense at (866) DTE-INFO. - Page 19 RAMVAC Bulldog ® User Guide 1062DOC Rev C Page 19 Effective date: 6-Mar-14...
- Page 20 212 North Main Street Spearfish,SD 57783 (800) 5-RAMVAC FAX (605) 642-3776 www.ramvac.com © 2012 RAMVAC Dental Products All rights reserved. No part of this publication may be copied or distributed, transmitted or transcribed in any form or by any means without the expressed written permission of RAMVAC Dental Products, Spearfish, SD 57783 EXCLUSIVELY FROM...
