ENTERTAINMENT SELECT

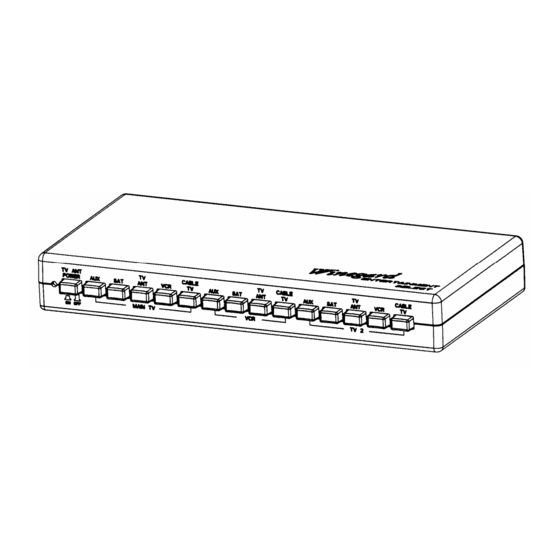

Model shown has five inputs, three outputs.
FEATURES:
Simple push button controls allow you to send signals
•
from any one of 5 different inputs to 2 TVs and VCR.
5 Inputs are Satellite Receiver, TV Antenna, VCR,
•
Cable TV & Auxiliary.
3 Outputs: Main TV, TV 2, VCR.
•
Built-in +12 VDC TV antenna power supply eliminates
•
need for separate wall mounted TV antenna power supply.
Self-resetting fuses used in antenna power supply
•
prevent failure caused by shorted connections.
Video switch allows for independent viewing of
•
signals at different TVs, with a record option from VCR.
WINEGARD
MODEL VS-0503/VS-5312
®
Low profile housing blends
•
nicely with other electronic
components; fits easily in
overhead cabinets.
Shielded circuitry for high
•
isolation and low signal loss.
Oversize, easy-to-read graphics
•
for proper function selection
when mounted in out of the way
locations.
Advertisement
Related Manuals for Winegard Entertainment Select
Summary of Contents for Winegard Entertainment Select
- Page 1 ® WINEGARD ENTERTAINMENT SELECT MODEL VS-0503/VS-5312 Model shown has five inputs, three outputs. FEATURES: Simple push button controls allow you to send signals Low profile housing blends • • from any one of 5 different inputs to 2 TVs and VCR.
- Page 2 Figure A. (BYPASSING THE WALL MOUNTED POWER SUPPLY) When using Winegard or another brand of VHF/UHF “Amplified Antenna”, you must hook up the +12 VDC power to the back of the control box. The Power Indicator LED will only light when the Power button is on.
- Page 3 Cable TV inputs are available at many campgrounds. NOTE: With Winegard’s control box, you can watch different programming on each of your two TV sets while recording another program on your VCR. If your vehicle is equipped with an exterior patio TV set, you may choose the programming source desired for the patio TV by using the buttons above the TV 2 section on the control box.
-
Page 4: Troubleshooting
If a defect in material or workmanship is discovered, Customer may take the product to an authorized Winegard dealer for service. Customer must provide proof of purchase to verify the product is under warranty. If the product is brought to an authorized Winegard dealer for service prior to expiration of year one (1) of the warranty period and a defect in material or workmanship is verified by Winegard Technical Services, Winegard Company will cover the Winegard dealer’s labor...
