2-4-2 To Install M.2 SSD Card

This M.2 Socket 3 connector support compatible type 2242/2260/2280 SATA & PCIE
x4 SSD module.
Nut Location
Card Length
Module Type

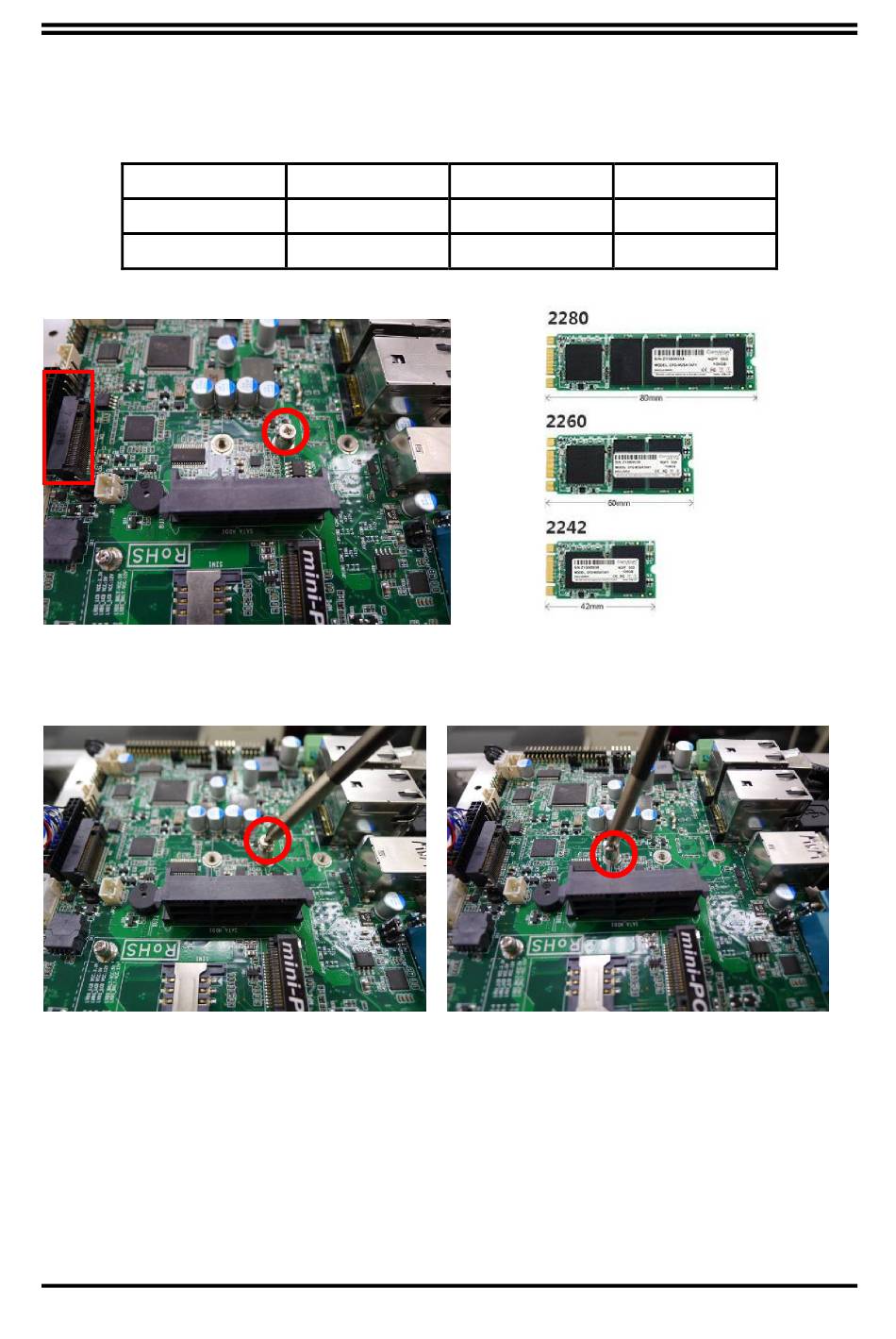

1. Find M.2 Slot on the motherboard.
3. Remove the screw post and nut fixed at
location MH2 by default (Skip step 2 & 3
and go straight to Step 4 if you are going
to use the default nut).
MH1
4.2 cm
Type 2242 Type 2260
2. Prepare compatible M.2 SATA or M.2
PCIe SSD card. Deferent type of cards
has different length. Find corresponding
nut location for further installation.
4. Lock the screw post into the location
corresponding to the length of the module
you wish to install.
15
MH2 MH3
6 cm 8 cm
Type 2280
