3.2 Wiring Description
3.2.3 Door Lock Wiring

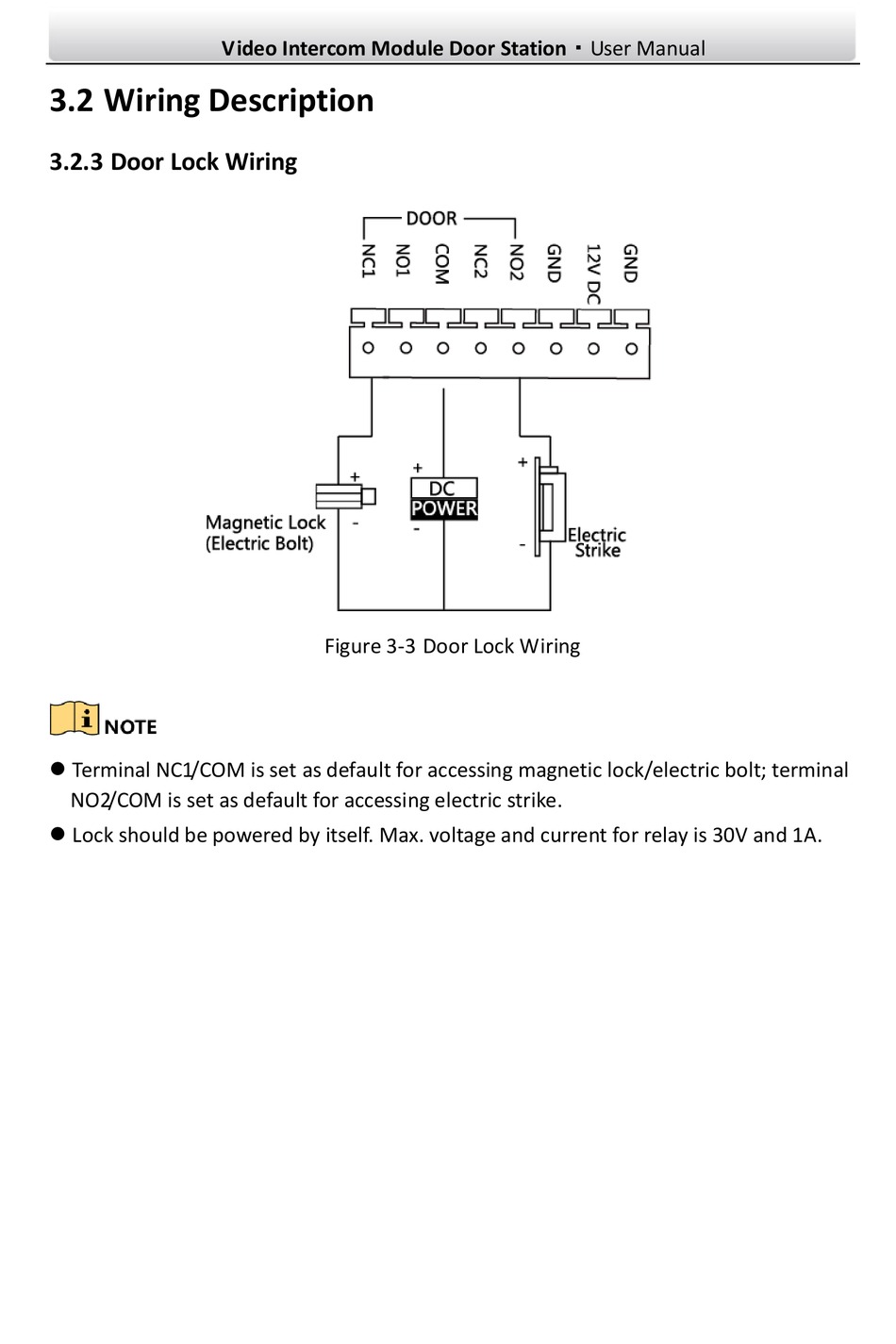

Figure 3-3 Door Lock Wiring
Terminal NC1/COM is set as default for accessing magnetic lock/electric bolt; terminal
NO2/COM is set as default for accessing electric strike.
Lock should be powered by itself. Max. voltage and current for relay is 30V and 1A.
