- Page 1 LTE Outdoor CPE8100/8101 System Manual January 2018...
- Page 2 All other names are or may be the trademarks of their respective owners. Statement of Conditions The information contained in this manual is subject to change without notice. Telrad Networks Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it.
- Page 3 USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Disclaimer (a) The Software is sold on an "AS IS" basis. Telrad Networks, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION.
- Page 4 MAINTENANCE OR USE OF ITS PRODUCTS. Limitation of Liability (a) TELRAD NETWORKS SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES...
- Page 5 FCC USA CBRS Band Category B device The CPE8100 requires installation by a CPI (Certified Professional Installer) as defined in Section 96.39 and 96.45 of FCC part 96 requirements. The Compact is Classified as a Category B CBSD which requires the following info be recorded and uploaded as part of the CPI process per section 96.45...
- Page 6 The CPE8100 (Category B CBSD) must report to a SAS to register and obtain spectrum grants per FCC part 96. Local administration should be executed through the domain proxy and all freq, bandwidth and power adjustments must be handled in coordination with the SAS and grant process. The device is not authorized to transmit without a grant and ships with TX disabled.
-
Page 7: Table Of Contents
RODUCT IGHLIGHTS ....................CPE 8101 E LECTRICAL HYSICAL PECIFICATIONS ..............CPE8101 P DAPTER PECIFICATION ..................GETTING STARTED – CPE8100 ................. 12 EVICE OGIC CONNECTION ......................(ODU) – P NSTALLING UTDOOR OUNT ..............(ODU) – W ... - Page 8 VPN S L2 B ETTING NDER RIDGE ODE ..................L2 S L2 B ERVICE NDER RIDGE ODE ..................VLAN S L3 B ETTING NDER RIDGE ODE .................. ETTING........................... DDNS S ETTING NDER OUTER ODE .....................
-
Page 9: Overview

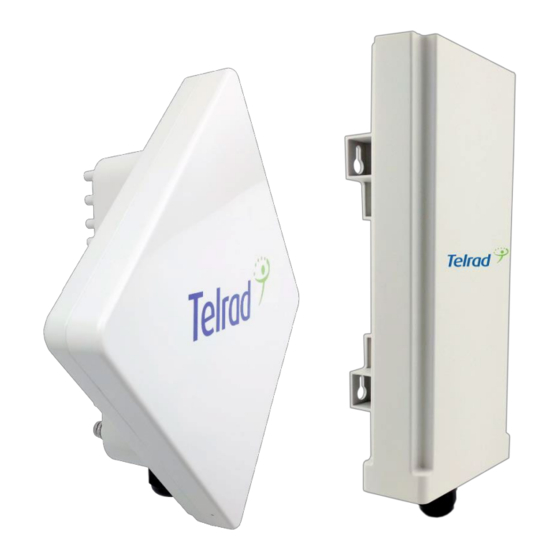

1. Overview CPE8100/CPE8101 is a high performance LTE CPE family (Customer Premises Equipment) product designed to enable quick LTE service deployment to the remote customers. It provides high data throughput and networking features to end users who need both bandwidth and data roaming capabilities in the remote area. -
Page 10: Cpe 8100 Product Highlights
IP67 - withstands harsh weather and outdoor environments Operating Temperature -40° to 55°C Humidity 5% to 95% non-condensing Regulatory Compliance CPE8100 PoE Adapter Specification Power Source 100~240VAC Output Power (PoE) 48V / 0.32A User Interfaces Data only model : 1xLAN RJ45 10/100/1000 Mb... -
Page 11: Cpe 8101 Product Highlights
CPE 8101 Product Highlights Frequency Bands B40 – B41 , B42-B43 * 8101 not certified for use in US Category 4 (Any BS) LTE UE Category Category 5 (Telrad BS Only) LTE Tx Power 23 dBm Peak Antenna Gain 12 dBi... -
Page 12: Getting Started - Cpe8100
2. Getting Started – CPE8100 1) Packing list Upon receiving the product, please unpack the product package carefully. Each product is shipped with the following items: Table 2-1 Packing List Outdoor CPE Products Quantity ODU unit PoE adapter Power cord... -
Page 13: Installing Outdoor Unit (Odu) - Pole Mount
condition. The CPE should be properly grounded for proper protection against lighting or power surge. To power on the device, the outdoor CPE must use a 48V PoE integrated DC power supply adapter. The power adapters can operate in 100-240V AC range and therefore can be used in different country. -
Page 14: Installing Outdoor Unit (Odu) - Wall Mount
In any event, Telrad is not liable for any injury, damage or regulation violations associated with or caused by installation, grounding or lightning protection. - Page 15 The Grounding screw is located on the lower part at the back of the unit (see Figure below). Use 10 AWG cable for grounding. Connect one of a grounding cable to the grounding screw and firmly tighten the grounding screw. Connect the opposite end of the grounding cable to a good ground(earth) connection. Page 15...
-
Page 16: Led Display
LED Display LED Indicator Function Description Power Indicator Green Color – Device is powered on Fast Blinking – Device is rebooting System Run Indicator Slow Blinking – Device is in normal operation Solid Green – LAN port is up LAN port status Blinking Green –... -
Page 17: Getting Started - Cpe8101
3. Getting Started – CPE8101 4) Packing list Upon receiving the product, please unpack the product package carefully. Each product is shipped with the following items: Table 2-1 Packing List Outdoor CPE Products Quantity ODU unit PoE adapter Power cord Clamp PC Ethernet Cable Quick User Guide... -
Page 18: Installing Outdoor Unit (Odu) - Clamp
the system has completed the startup procedure. To connect PC, LAN switch or other type of IP device to the CPE product, the user should use standard CAT5 Ethernet cable and connect to the appropriate LAN port. Once connected, the ETH LED indicator should come on. ... -
Page 19: Led Display
LED Display Type Function Description Fast Blinking – Device is rebooting. System run indicator Solid green – Device is in normal operation. SIM card indicator Light is on – SIM card state is ready. Solid Green – LAN port is up. LAN port status Blinking Green –... - Page 20 Page 20...
-
Page 21: Managing Cpe Device
2 Managing CPE Device CPE8101 is a user-friendly LTE CPE, and very easy to configure and setup. Subscribers can just connect the device to their computer or home switch/router and the device is ready to provide Internet Services. WEB Login ... - Page 22 Page 22...
-
Page 23: Nd&S Configuration
ND&S Configuration The LTE radio can be enabled or disabled via 4G Radio setting. The radio can also be reset via Reconnect. The CPE support both Mobile and Nomadic network selection mode. The Mobile mode will automatically scan the network and attach soon as the system has completed the startup procedure. -
Page 24: Cell Selection
Cell Selection The cell selection menu is used to configure how CPE will select the best cell. User can configure the “Auto Select” mode to select cell based 3GPP standard. When configured with “preferred Listing”, user can add up to 8 desired cell ID to the list and the CPE will attach to the appropriate cell after a full scan. -
Page 25: Pdn Setting
PDN Setting This menu is used to configure the operator APN profile. You can configure single or multiple APNs for the operator network. The below shows an example of two APN configuration. Page 25... -
Page 26: Sim Card
You can view the APN status info in the Status menu. SIM Card The SIM card menu is used to view the SIM card status and perform PIN code management for SIM card. You disable or enable the SIM card PIN check on the CPE to bind the SIM card inserted. -
Page 27: Lan Setting
Note when setting the connection mode as L2 Bridge or L3 Bridge, there will be a warning window pops up. Remember the management IP address 192.168.254.251 and click the “ok” button. When the user wants to manage the home page again, the PC should be configured a static IP as 192.168.254.x manual in order to visit the CPE managing page address... -
Page 28: Router/ Nat Mode
Router/ NAT mode The following parameters should be configured (please, refer to the settings shown in the below screenshot): Connection Mode – defines the CPE networking mode. Should be set to "Router/ NAT" NAT Mode – enables/ disables NAT functionality. Should be checked. MGMT and Data interface –... -
Page 29: Vpn Setting Under Router Mode
(Layer 3 bridge) - PPTP, L2TP and GRE can be selected. Note: This mode is not supported and not recommended to be used. Alternatively, In L2 Bridge mode, L2 GRE can be configured as part of Telrad Layer 2 solution end-to-end solution. The router mode VPN configuration is shown below. -
Page 30: Vpn Setting Under L2 Bridge Mode
When setting the CPE into the "L2 bridge" mode, verify that TSDF flow endpoint is configured correctly – i.e. matching the BreezeWAY EPC virtual IP ("TSDF L2 end point IP Address" value). This should be configured in Network/ VPN tab. Verify that "GRE Destination IP address" is matching the BreezeWAY EPC parameter "TSDF L2 end point IP Address"... -
Page 31: Vlan Setting Under L3 Bridge Mode
VLAN Setting Under L3 Bridge Mode Under the L3 Bridge connection mode, the following VLAN setting can be configured. When multiple APNs are configured, different VLAN LAN packets can be forwarded to different APN. QoS Setting This configuration menu allows user to tag DSCP or TOS value for CPE local data (Management) and LAN port data (Data). -
Page 32: Ddns Setting Under Router Mode
DDNS Setting Under Router Mode This configuration menu allows user to configure use of different DDNS service for router mode operation. Traffic Control Setting Under Router Mode This configuration menu allows user to configure the data priority and allowed bandwidth for LAN data traffic. -
Page 33: Security Configuration
5 Security Configuration Firewall This allows user to configure CPE firewall. ALG This allows user to configure the application level gateways for many common applications. Page 33... -
Page 34: Defense
Defense This allows user to configure defense policy for the LTE and local LAN interface to prevent hostile attack. Page 34... -
Page 35: Access Restrictions
Access Restrictions This allows user to define access policy for LAN devices. It can support URL blocking as well. Page 35... - Page 36 Page 36...
-
Page 37: Applications Configuration
6 Applications Configuration Port Range Forwarding This allows user to configure the port range forwarding rules for the CPE in router mode. Port Forwarding This menu allows user to configure the port forwarding rules for the CPE in router mode. ... -
Page 38: Upnp
UPnP This menu allows user to configure the UPnP application for on-demand “DMZ” support. The current forwarding rules created can be viewed and cleared if required. Port Triggering This menu allows user to configure forward certain port range to different port range for specific protocol. -
Page 39: Management
7 Management Device Management The menu allows user to configure device management mode and various control. Telnet, SSH for Telrad R&D, and HTTPs can be enabled or disabled via configuration. Auto WEB GUI logout can also be configured. Page 39... -
Page 40: Tr069
Note: Telnet is enabled only for development purposes, for normal deployment it shall be disabled. TR069 The menu allows user to configure the necessary setting for TR069 management of the CPE device. Page 40... -
Page 41: Maintenance
8 Maintenance General The menu allows user to configure the WEB GUI login password, time and language setting. Page 41... -
Page 42: Firmware Upgrade
Firmware Upgrade This menu allows user to perform firmware upgrade via WEG GUI with option to reset to factory setting. It can also configure the remote upgrade using FTP, TFTP or HTTP. Page 42... -
Page 43: Config Management
Config Management This menu allows user to backup or restore device configuration file. Ping This menu allows user to perform PING tests using WEB GUI interface. Both IPv4 and IPv6 can be supported. Iperf This menu allows user to configure iPerf testing using WEB GUI interface. Both TCP and UDP tests can be supported. -
Page 44: System Reset
System Reset This menu allows user to reboot the device or restore the device to factory defaults. Special care needs to be taken when restoring factory defaults. Status System The menu shows the general system info of the CPE device. It includes connection, system, CPE and memory usage information. -
Page 45: Network
Network The menu shows the general network status that includes PDN interface info, device routing info, and ARP table. Page 45... -
Page 46: Lan
LAN The menu shows the local LAN network status including the LAN interface and DHCP Server setting and current DHCP clients connected. Page 46... -
Page 47: Faq And Troubleshooting
10 FAQ and Troubleshooting 1) My PC cannot connect to the CPE. Re-plug the PC Ethernet cable and check if the PC LAN connection is up or showing activity. Check if the PoE power adapter LED is on. If it is not, check the power cord and make sure it is connected properly.
