DoorKing 1515 Manual

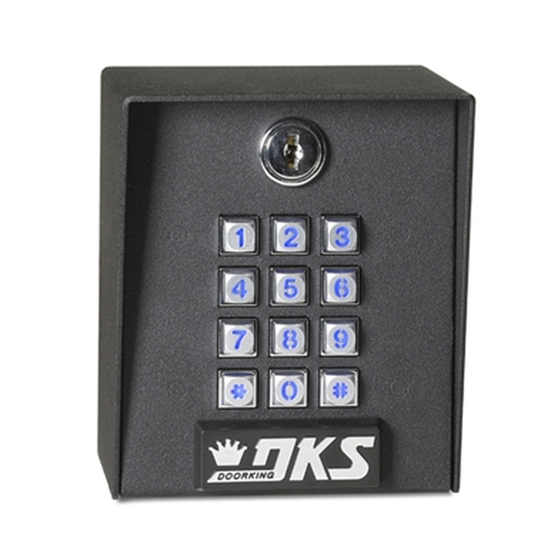

STAND ALONE DIGITAL LOCK
DoorKing's 1515 Digital Lock is designed to manage an access point without needing an access control system. The digital lock can store up to
400 codes in memory for "Momentary" or "Hold Open" entry. It's relay output can control an electric strike, magnetic lock or gate operator.
Request to Exit input (Free exit) allows an exit button to open the door or gate. Program the digital lock with the built-in keypad or an ANDROID
smartphone using the DKS Digital Lock Manager app with NFC - Near Field Communication programming. You can use an Android smartphone
and the DKS Smart Open app (free download at Google Play Store) to open the door or gate that is connected to the 1515. It can be programmed
for low power mode (less than 1 mA current draw) for use with solar applications.

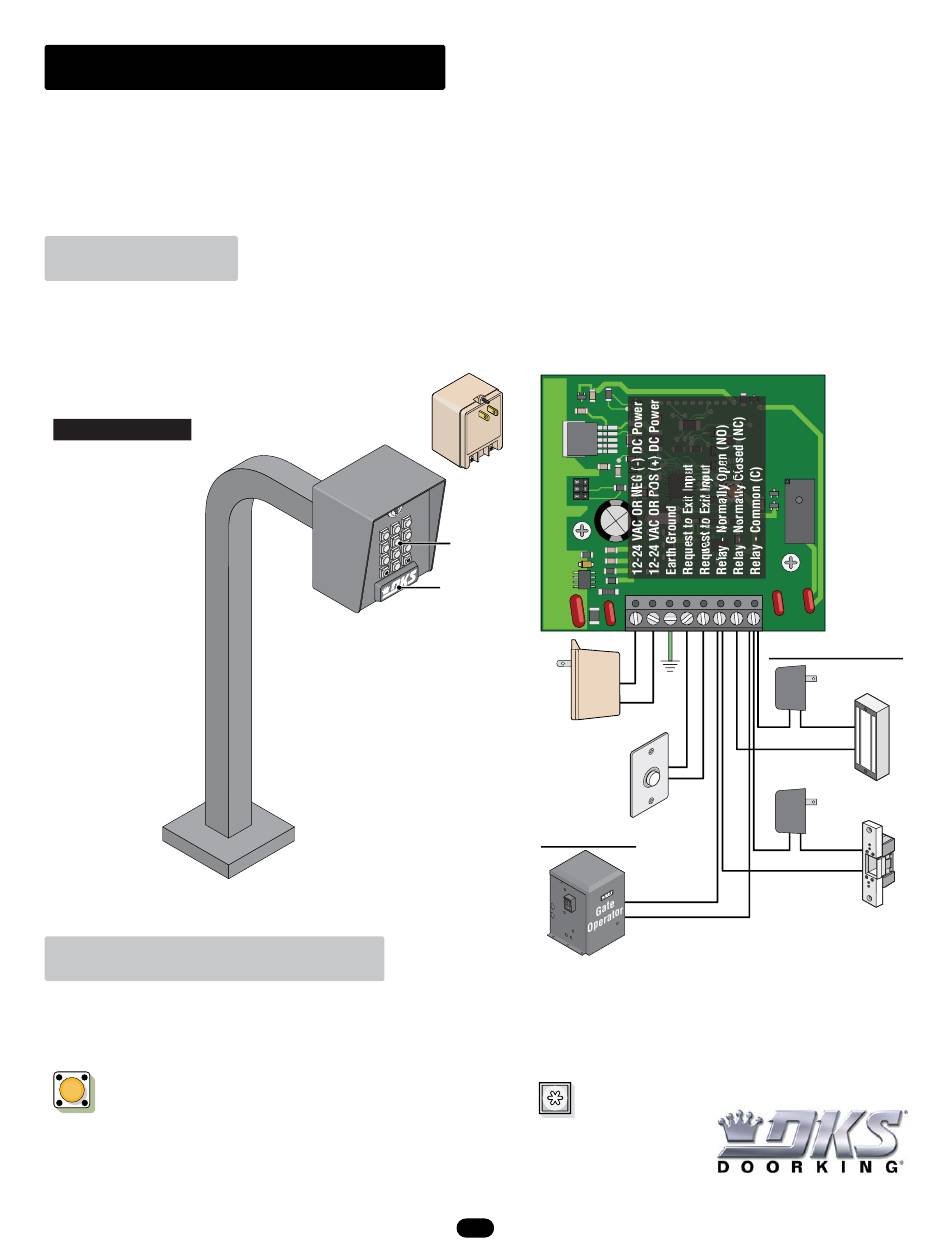

Installation
The 1515 can be mounted indoors/outdoors directly to a wall/pilaster or a DoorKing gooseneck mounting post (Optional). Do not mount the digital
lock to a moving gate, or immediately next to a gate panel or pedestrian gate. Continuous vibration from slamming gates and vibration can cause
damage to the unit over time. WARNING! If the digital lock is used to activate a vehicular gate operator, it must be mounted a minimum of 6 feet
away from the gate and gate operator, or in such a way that the user cannot come into contact with the gate or gate operator while using the digital
lock. Digital Lock MUST be properly grounded.
Important:
After installation, the digital
lock will need to have the
Master Code programmed
in and be programmed for
desired features using the
built-in keypad or android
smart phone (see below
and next page).
Optional Mounting:
Enclosure can be mounted
on a DoorKing gooseneck
mounting post (not
supplied). Run wires inside
gooseneck post.
Note: A gooseneck mounting post anchored in
concrete does NOT make a good ground.
Program Master Code
The master code MUST be programmed in from the built-in keypad AFTER installation is complete and BEFORE any programming takes place. Write down your
master code after it has been programmed in and store it in a safe place. There is NO way to retrieve the master code after it has been programmed in. If you forget it,
you will have to program in a new master code but all other pre-programed information will remain intact.
Step 1. Open the digital lock to access the Master Code push button on the circuit board.
(1515 must have power) Press the Master Code push button ONCE.
MASTER
CODE
Step 2. Enter a four-digit master code using the built-in keypad, then press
Step 3. Close the digital lock. Write down master code and keep it in a secure place.
1515 065-D-5-15
3
2
1 6
5
4 9
8
7
0
NFC Antenna
Mounting: Use the existing holes in the cabinet to
mount digital lock. Run conduit inside or outside
of wall/pilaster if desired. Use appropriate
hardware to mount the cabinet (Not supplied).
Be sure that the mounting hardware does not
protrude into the cabinet where it could cause a
short. Clean any debris out of cabinet that could
cause a short.
Copyright 2015 DoorKing, Inc. All rights reserved.
u t :
I n p H z
6 0
0 V
t :
1 2 t p u
A
0 V
O u
C 2
V A
. 5
1 6
r
w e
P o
l y
p p
)
S u d e d
c l u
( i n
Lighted
Built-In
Keypad
1 2 3 4 5 6 7 8
Power
Supply
Required
Push Button
(Free Exit)
Gate Control
(A short beep will be heard).
1
DoorKing Part Number
1515-010
MASTE MASTER
C CODE CODE
Door Control
Separate
Power
Supply
NC
T O
Maglock
S H
P U
I T
E X
Separate
Power
Supply
NO
NO
120 S. Glasgow Avenue
Inglewood, California 90301
1515-080
Electric
Strike
U.S.A.
