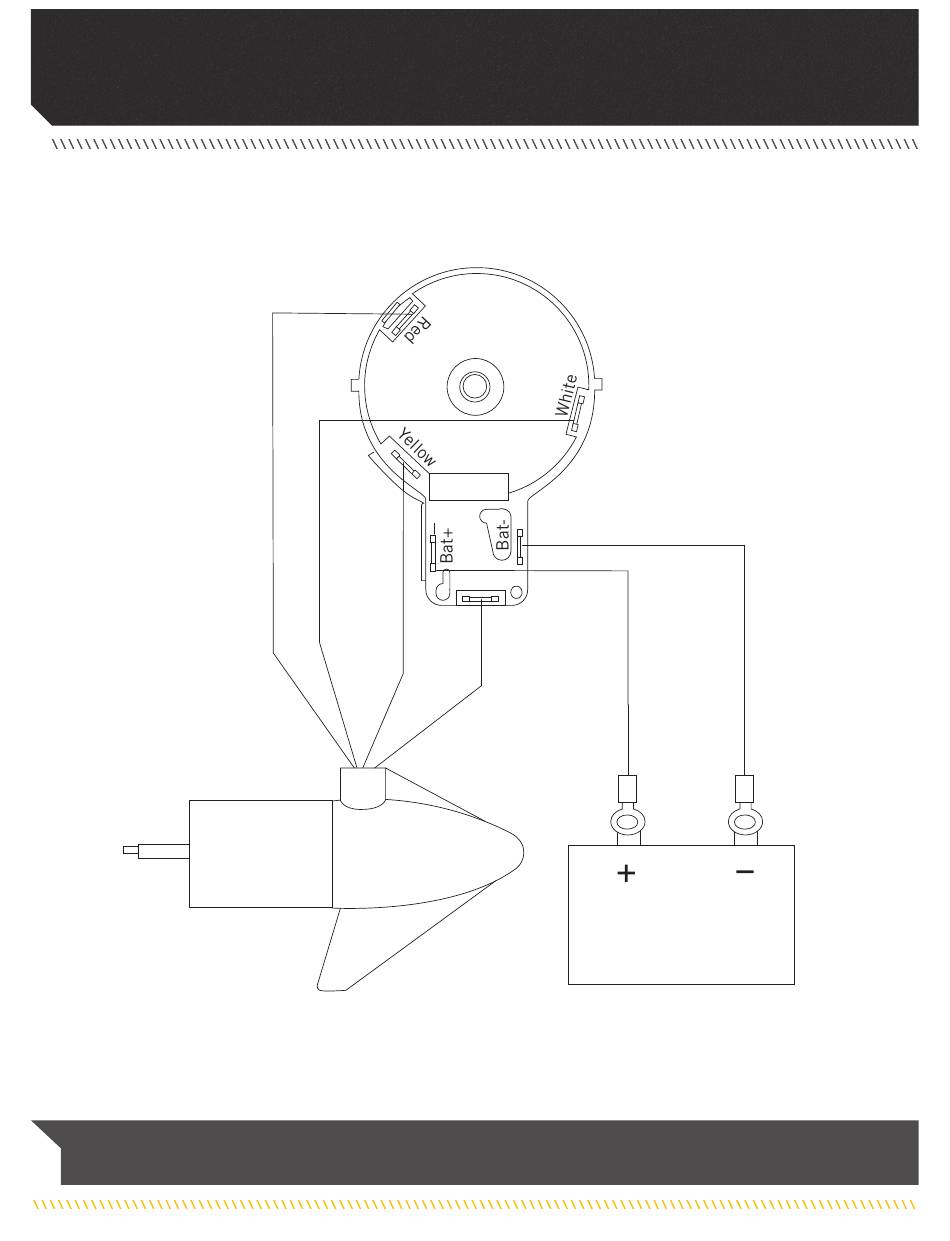

MOTOR WIRING DIaGRaM
ENDURA
Switch
Black
Red+
White
Yellow
Black-
Red B+
Black B-
Motor
12 Volt Deep Cycle
Marine Battery
NOTICE:
This is a multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current Protection
Devices are not shown in this illustration.
minnkotamotors.com | 13
©2018 Johnson Outdoors Marine Electronics, Inc.
