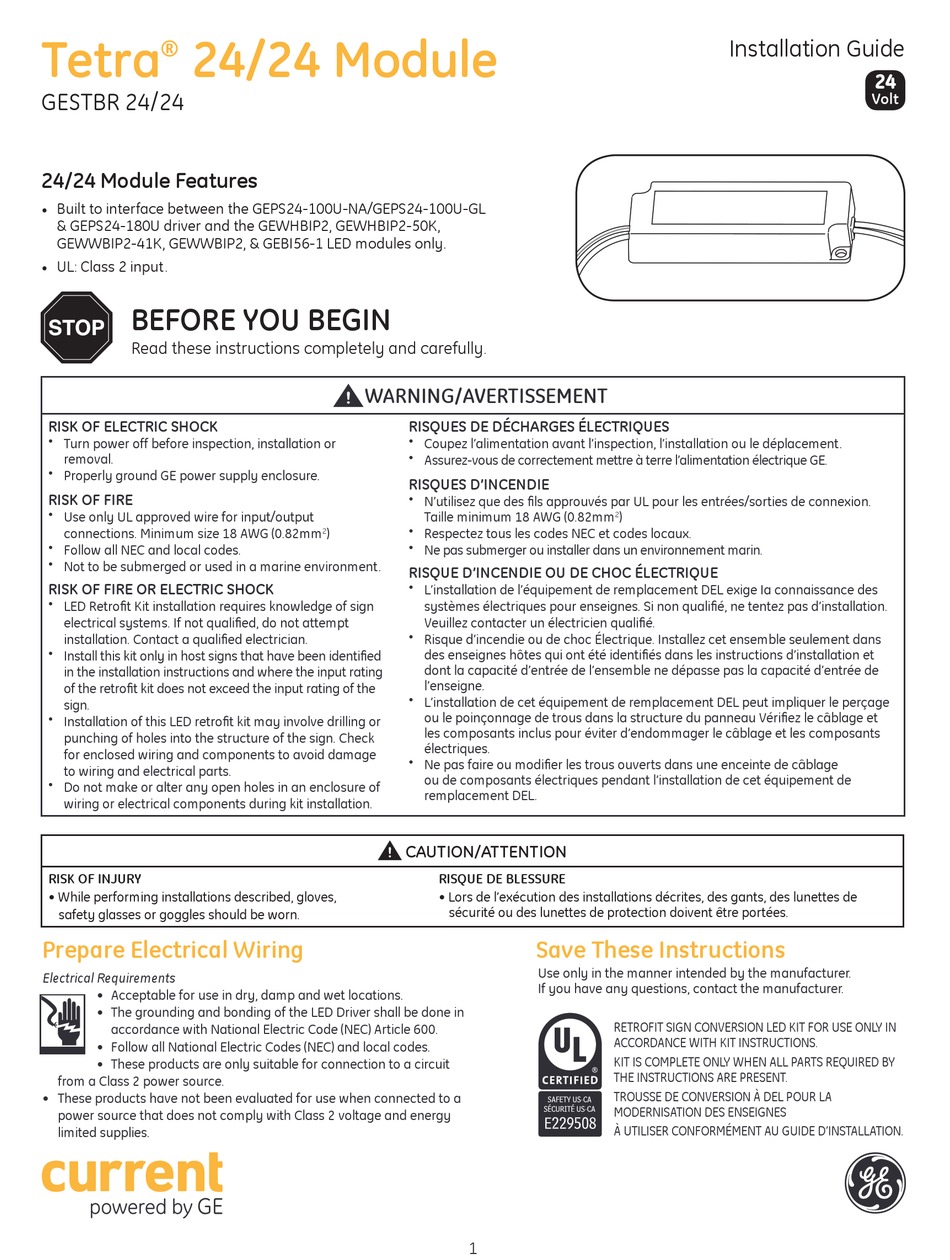

Tetra
24/24 Module
®
GESTBR 24/24
24/24 Module Features
• Built to interface between the GEPS24-100U-NA/GEPS24-100U-GL
& GEPS24-180U driver and the GEWHBIP2, GEWHBIP2-50K,
GEWWBIP2-41K, GEWWBIP2, & GEBI56-1 LED modules only.
• UL: Class 2 input.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
RISK OF ELECTRIC SHOCK
Turn power off before inspection, installation or
removal.
Properly ground GE power supply enclosure.
RISK OF FIRE
Use only UL approved wire for input/output
connections. Minimum size 18 AWG (0.82mm
Follow all NEC and local codes.
Not to be submerged or used in a marine environment.
RISK OF FIRE OR ELECTRIC SHOCK
LED Retrofit Kit installation requires knowledge of sign
electrical systems. If not qualified, do not attempt
installation. Contact a qualified electrician.
Install this kit only in host signs that have been identified
in the installation instructions and where the input rating
of the retrofit kit does not exceed the input rating of the
sign.
Installation of this LED retrofit kit may involve drilling or
punching of holes into the structure of the sign. Check
for enclosed wiring and components to avoid damage
to wiring and electrical parts.
Do not make or alter any open holes in an enclosure of
wiring or electrical components during kit installation.
RISK OF INJURY
• While performing installations described, gloves,
safety glasses or goggles should be worn.
Prepare Electrical Wiring
Electrical Requirements
• Acceptable for use in dry, damp and wet locations.
• The grounding and bonding of the LED Driver shall be done in
accordance with National Electric Code (NEC) Article 600.
• Follow all National Electric Codes (NEC) and local codes.
• These products are only suitable for connection to a circuit
from a Class 2 power source.
• These products have not been evaluated for use when connected to a
power source that does not comply with Class 2 voltage and energy
limited supplies.
WARNING/AVERTISSEMENT
RISQUES DE DÉCHARGES ÉLECTRIQUES
Coupez l'alimentation avant l'inspection, l'installation ou le déplacement.
Assurez-vous de correctement mettre à terre l'alimentation électrique GE.
RISQUES D'INCENDIE
N'utilisez que des fils approuvés par UL pour les entrées/sorties de connexion.
Taille minimum 18 AWG (0.82mm
)
Respectez tous les codes NEC et codes locaux.
2
Ne pas submerger ou installer dans un environnement marin.
RISQUE D'INCENDIE OU DE CHOC ÉLECTRIQUE
L'installation de l'équipement de remplacement DEL exige Ia connaissance des
systèmes électriques pour enseignes. Si non qualifié, ne tentez pas d'installation.
Veuillez contacter un électricien qualifié.
Risque d'incendie ou de choc Électrique. Installez cet ensemble seulement dans
des enseignes hôtes qui ont été identifiés dans les instructions d'installation et
dont la capacité d'entrée de l'ensemble ne dépasse pas la capacité d'entrée de
l'enseigne.
L'installation de cet équipement de remplacement DEL peut impliquer le perçage
ou le poinçonnage de trous dans la structure du panneau Vérifiez le câblage et
les composants inclus pour éviter d'endommager le câblage et les composants
électriques.
Ne pas faire ou modifier les trous ouverts dans une enceinte de câblage
ou de composants électriques pendant l'installation de cet équipement de
remplacement DEL.
CAUTION/ATTENTION
RISQUE DE BLESSURE
• Lors de l'exécution des installations décrites, des gants, des lunettes de
sécurité ou des lunettes de protection doivent être portées.
1
)
2
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
RETROFIT SIGN CONVERSION LED KIT FOR USE ONLY IN
ACCORDANCE WITH KIT INSTRUCTIONS.
KIT IS COMPLETE ONLY WHEN ALL PARTS REQUIRED BY
THE INSTRUCTIONS ARE PRESENT.
TROUSSE DE CONVERSION À DEL POUR LA
MODERNISATION DES ENSEIGNES
À UTILISER CONFORMÉMENT AU GUIDE D'INSTALLATION.
Installation Guide
24
Volt
