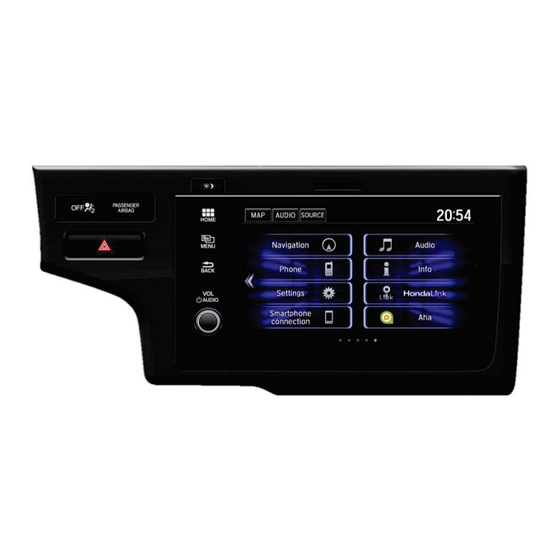

Summary of Contents for Fujitsu Ten Limited FT0091A
- Page 1 FT0091A Operating Manual OEM Part No. 39100-T5R-L51*-M1 Supplier Part No. 139000-752 F F UJITSU TEN Confidential...
-
Page 2: Switch Information
Switch Information Switch Switch name Time BEEP Function Type DAY / NIGHT Brightness setting Hard DAY(100%) Night(50%) OFF Button POWER Audio Power ON (At the time of Audio Power OFF) Below 0.8sec Audio Power OFF PUSH Hard (At the time of Audio Power ON) Button Volume control (rotary) TURN... - Page 3 SOURCE Touch Change of AUDIO source Switch Audio Touch Change to AUDIO screen Switch App List Touch Change to a list of application screen Switch Rating 1.Rated Voltage 12V (10.5~16.0V) - GROUND 2.Rated Current 5.0A Max (+B=13.2V, 1W output) 3.Backup Current 6.5mA Max 4.Load Impedance ×4ch...
- Page 4 ■ ■ FT0091A 操作取扱説明書 Operation manual ①製品-安定化電源を接続 Connect as described in the following connection method. ②製品の電源をON Power up the Unit. ③「H」ロゴ画面で少し待つ Wait a little at "H" logo display. ④"OK"押下 Touch "OK". ⑤左画面へスワイプ、"アプリ一覧" を選択 Move to left page, touch "アプリ一覧". ⑥アプリケーション内の"Version Checker"を実行、走行規制一時解除をON Run "Version Checker", and turn ON "走行規制一時解除".
- Page 5 DISC開口部とEjectボタン(非動作) 輝度調整ボタン < < 操作方法 operation manual > Disc Aperture & Eject button.(NON operating) Illumination button AUDIO Mode NAVI Mode (NON operating) Setting Mode HOMEボタン ： HOME画面へ戻る Home button : Back to the HOME screen MENUボタン ： MENU画面を開く Menu button : Open the MENU screen BACKボタン...
-
Page 6: Fcc Warning
・Other FCC ID ：BABFT0091A FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. - Page 7 IC No：2024B-FT0091A This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 8 This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body.
