DGS-1510 Series Gigabit Ethernet SmartPro Switch Web UI Reference Guide
The fields that can be configured for Safeguard Engine Settings are described below:
Parameter
Safeguard Engine State
Trap State
The fields that can be configured for CPU Utilization Settings are described below:
Parameter
Rising Threshold
Falling Threshold
Click the Apply button to accept the changes made.

CPU Protect Counters

This window is used to view and clear the CPU protection counter information.
To view the following window, click Security > Safeguard Engine > CPU Protect Counters, as shown
below:
The fields that can be configured are described below:
Parameter
Sub Interface

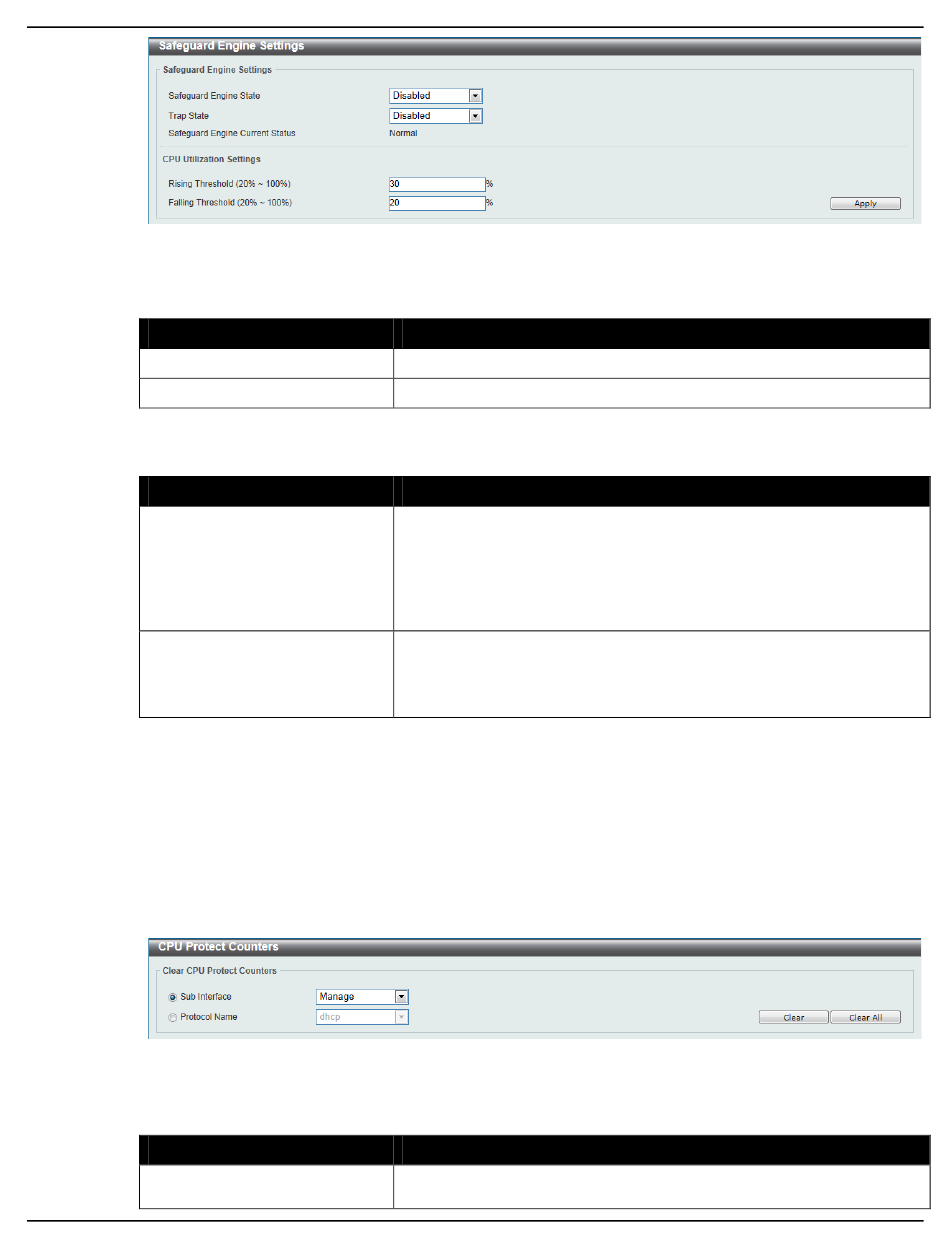

Figure 9-77 Safeguard Engine Settings window
Description
Select to enable or disable the safeguard engine feature here.
Select to enable or disable the safeguard engine trap state here.
Description
Enter the rising threshold value here. This value must be between 20%
and 100%. This value is used to configure the acceptable level of CPU
utilization before the Safeguard Engine mechanism is enabled. Once
the CPU utilization reaches this percentage level, the Switch will move
into Exhausted mode, based on the parameters provided in this
window.
Enter the falling threshold value here. This value must be between
20% and 100%. This value is used to configure the acceptable level of
CPU utilization as a percentage, where the Switch leaves the
Safeguard Engine state and returns to normal mode.
Figure 9-78 CPU Protect Counters window
Description
Select the sub-interface option here. Options to choose from are
Manage, Protocol, Route, and All. This option specifies to clear the
339
