Doc: 21208
SPECIFICATIONS
Receiver
Size
Weight
LENGTH
Power
4-9/16"
Antenna
WIDTH
2-5/8"
Transmitter
Size
Weight
LENGTH
Power
4-1/8"
Antenna
RF Range
Battery Life
Control
Indicator
Modulation
WIDTH
2-1/4"
FORCE/2 Wireless Upgrade Kit Installation Instructions
FORCE/2 Wireless Upgrade Kit
Installation Instructions
4-9/16"L x 2-5/8"W x 1-1/16" H
4.2 oz. (117 g)
24VDC
External
4-1/8"L x 2-1/4" W x 3/4"H
3.2 oz. (92 g)
(2) 3 volt, type CR2450
Internal
250'
40+ hours of use
4 color coded, sealed push buttons
Red LED
FM
REMOTE ATTACHMENTS
Lanyard
Hose mount

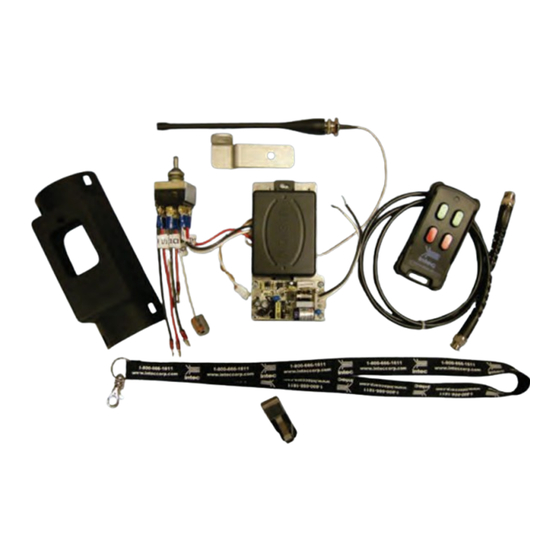

Kit Includes
•Antenna
•Antenna mount
•Hose mount
•Installation instructions
•Lanyard
•Mounting hardware
•Receiver
•Transmitter
1-800-666-1611
Rev: 08/10
Belt clip
•Belt clip
•Layout/drill template
•Plastic tie wraps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORCE/2 and is the answer not in the manual?

Questions and answers

Related Manuals for Intec FORCE/2

Summary of Contents for Intec FORCE/2

  • Page 1 FORCE/2 Wireless Upgrade Kit Installation Instructions 1-800-666-1611 FORCE/2 Wireless Upgrade Kit Installation Instructions Doc: 21208 Rev: 08/10 REMOTE ATTACHMENTS SPECIFICATIONS Receiver Size 4-9/16”L x 2-5/8”W x 1-1/16” H Weight 4.2 oz. (117 g) LENGTH Power 24VDC 4-9/16” Antenna External Lanyard...

  • Page 2: Installation Instructions

    4/2005, see lower left hand corner of BEFORE PERFORMING ANY WORK, MAKE SURE the electrical panel for date code. THE FORCE/2 IS NOT PLUGGED INTO AN ELECTRICAL OUTLET OR INJURY MAY OCCUR! Turn the Force/2 upside down as Locate the circular connector on Using a #2 Phillips screwdriver, shown.
  • Page 3 Carefully remove the electrical During removal of electrical box Slide the electrical panel through panel as shown. Caution:Do not and panel, make sure to support the opening in base as shown. Once pull on the wires! Using a #2 Phil- electrical box as shown.
  • Page 4 At this point, all holes should be Use alcohol to clean outside of Drill pilot hole using 3/16” drill bit. drilled in the electrical face plate, electrical box, allow to dry before Next, drill out pilot hole using 1/2” as shown. applying template as shown.
  • Page 5 Install Remote Selector Switch Wiring diagram: Rocker switch 1 & 2, The black wires at this point should sticker over hole as shown and Remote Quick Disconnect and Remote be on the right hand side of the mount Remote Selector Switch. Selector Switch.
  • Page 6 Locate and disconnect the white Locate the wire marked (U3) on the Locate the white wire which was wire on the Remote Quick Discon- remote selector switch and con- removed in step 31. Using wire nect (terminal 1-). nect it to remote quick disconnect cutters, cut off existing terminal (terminal 1+).
  • Page 7 Insert twisted wires into flanged At this point all electrical wiring Locate antenna connector, remove inlet as shown. Using a #2 Phillips should be installed. the nut and washer, keep sealing tighten screw and verify the wires washer in place as shown. are secure by gently pulling on them.
  • Page 8 Support the back of the electrical While supporting the electrical box Once the electrical box is secured box as shown. align holes and install the (2) #6 to the base, re-attach the electrical screws from step 4 using a #2 Phil- panel to the base using the (6) #8 lips screw driver.
  • Page 9 Route cable underneath the agitator Turn off the main agitator and Plug in both the agitator and blower mounting bracket, attach the other blower switches on the control power cords to the flanged recep- end of the cable to the antenna, as panel.

  • Page 10: Installation Is Complete

    To STOP machine, depress the Push the (newly mounted) remote To start machine, depress the RED, blower and agitator switches. selector switch down to activate the rocker switch to the blower “on” wired remote. position and the agitator to the “on”...

  • Page 11: Wireless Remote Operation

    FORCE/2 Wireless Retrofit System Operation Instructions 8-01-2010 Wireless Remote Operation: Fig 3 Fig 2 Attach the transmitter to the blowing hose, belt clip or lanyard (see wireless remote configurations at bottom of page). At the electrical panel, locate the remote selector switch, position the switch to the wireless remote position “Up”...
