Weco Cruiser 322AC/DC Instruction Manual

Power pulse
Hide thumbs
Table of Contents

Advertisement

Quick Links

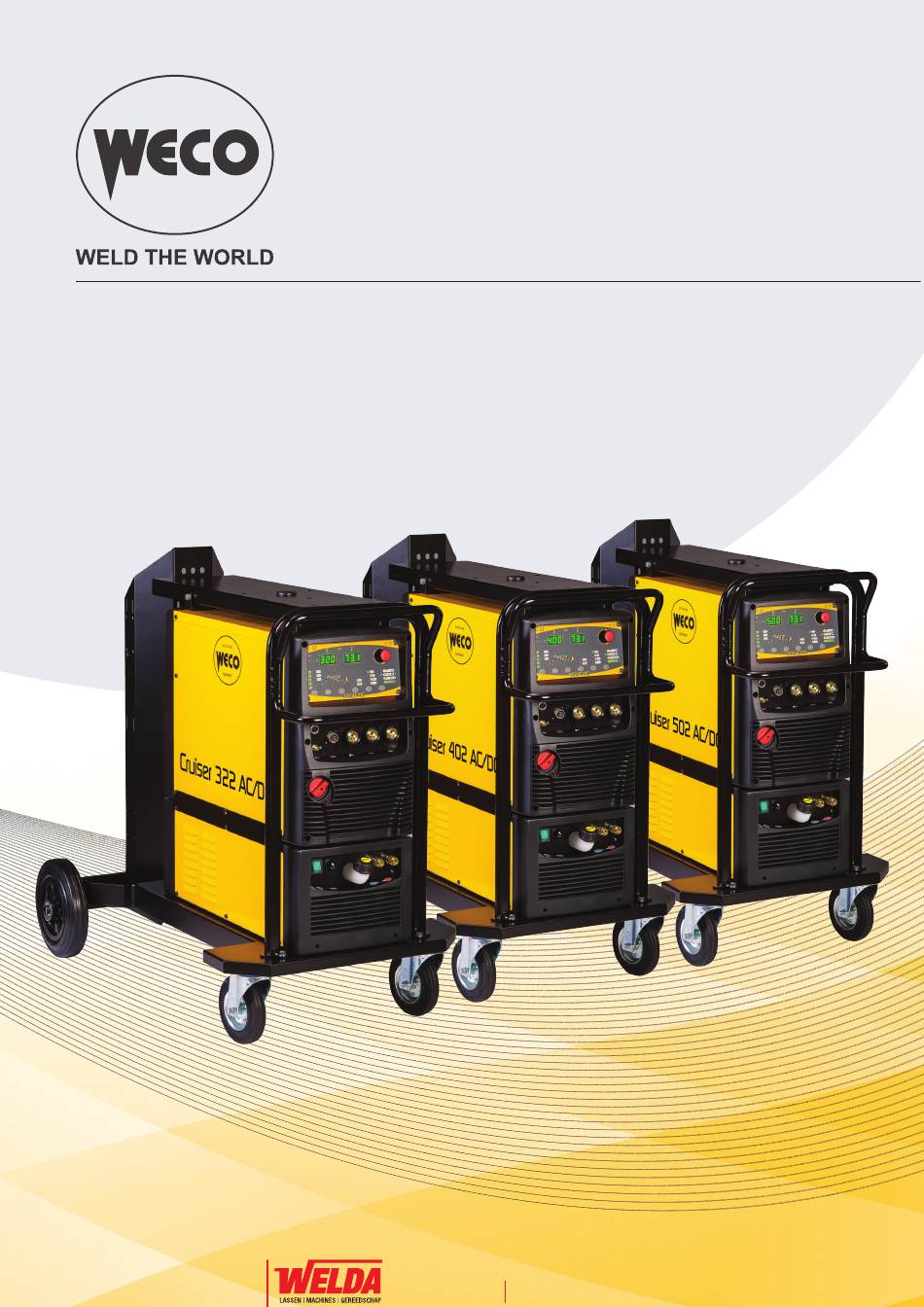

Cruiser
Power Pulse
Instruction manual
Antwerpsesteenweg 949 9041 Gent - Oostakker
info@welda.be
www.welda.be
322AC/DC
402AC/DC
502AC/DC
T +32 (0)9 355 74 26
F +32 (0)9 355 92 01
Cod. 006.0001.1820
25/05/2018 V.2.6
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cruiser 322AC/DC and is the answer not in the manual?

Questions and answers

Related Manuals for Weco Cruiser 322AC/DC

Summary of Contents for Weco Cruiser 322AC/DC

  • Page 1 Cod. 006.0001.1820 25/05/2018 V.2.6 Cruiser 322AC/DC Power Pulse 402AC/DC 502AC/DC Instruction manual Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
  • Page 2 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...

  • Page 3: Table Of Contents

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD INDEX INTRODUCTION ............................4 INTRODUCTION ............................5 INSTALLATION ............................6 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK ..............6 FRONT PANEL ............................. 6 REAR PANEL ............................... 7 PREPARING FOR MMA WELDING ......................8 PREPARING FOR TIG WELDING .......................

  • Page 4: Introduction

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD INTRODUCTION IMPORTANT! This handbook must be consigned to the user prior to installation and commissioning of the unit. Read the "General prescriptions for use" handbook supplied separately from this handbook before installing and commissioning the unit.

  • Page 5: Introduction

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 1.1 INTRODUCTION This professional and rugged welding power source for DC MMA and TIG welding with exceptional arc characteristics is designed to operate in harsh environmental conditions in the fields of professional maintenance, shipyards and offshore, building construction and heavy fabrication. The ARC AIR function allows perfect de-seaming with carbon electrodes of up to 10mm in diameter. Up to 6 mm diameter electrode welding is possible in MMA. In MMA welding the Hot Start and Arc Force functions are adjustable and they allow improved arc strik- ing, a flatter bead and more uniform weld. The Anti Sticking function makes it possible to detach the electrode rapidly from the workpiece in the event of accidental sticking. The parameters pre-set in the DC TIG pulsed synergic curve simplify welding by regulation exclusively of the current. The current is adjustable also from the Up-Down torch. The simply and intuitive interface allows high precision adjustments with 50 storable programs.

  • Page 6: Installation

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD INSTALLATION DANGER! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. 2.1 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK The mains power supply features to which the equipment should be connected are given in chapter “12 TECHNICAL DATA”...

  • Page 7: Rear Panel

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 2.3 REAR PANEL ○ Auxiliary power supply transformer safety fuse [Item 1]. • Type: Delayed acting (T) • Amperage: 2 A (3.15 A for 322AC/DC) • Voltage: 500 V a.c. ○ Signals connector for automatic application [Item 2]. ○ Pre-heater supply socket (OPTIONAL on 322AC/DC) [Item 3]. The socket is internally protected by a self-resetting fuse.

  • Page 8: Preparing For Mma Welding

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD • Number and cross section of wires: 4 x 6 mm (4 mm on 322AC/DC) • Power plug type: not supplied ○ Socket for connecting the power cable between the power source and the remote control device [Item 9]. ○ (Only Power Pulse 322/402/502AC/DC) Connector for connection to the programmer [Item 10]. Programming connector for the “pulsed” circuit board. You can update the software of the equip- ment using the programming kit. 2.4 PREPARING FOR MMA WELDING 1. Set the welding power source ON/OFF switch to “O” (unit switched off). 2. Plug the power cable plug into a mains socket outlet. 3. Choose the electrode based on the type of material and thickness of the workpiece to be welded. 4.

  • Page 9: Preparing For Tig Welding

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 2.5 PREPARING FOR TIG WELDING NOTE: For the cooler to power source assembly procedure refer to the cooler instruction man- ual. 1. Set the welding power source ON/OFF switch to “O” (unit de-energized). 2. Plug the power cable plug into a mains socket outlet. 3. Connect the gas hose from the welding gas cylinder to the rear gas socket. 4. Open the cylinder gas valve.

  • Page 10: User Interface

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD USER INTERFACE Cruiser 322AC/DC - Power Pulse 322AC/DC L4 L5 L12 L13L14 L22 L23 Cruiser 402 AC/DC - Power Pulse 402 AC/DC L4 L5 L12 L13L14 L22 L23...
  • Page 11 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD CODE SYMBOL DESCRIPTION Illumination shows that the following function has been activated: HIGH FREQUENCY ARC STRIKE (HF) Illumination shows that the following function has been activated: VRD (reduced output volt- age). The no-load voltage between the welding sockets is switched from U0 to Ur (see technical data).
  • Page 12 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD CODE SYMBOL DESCRIPTION When this LED illuminates the following parameter can be set: BASE CURRENT (A) When this LED illuminates the following parameter can be set: PEAK TIME (s) When this LED illuminates the following parameter can be set: PULSED CURRENT L25+L26 FREQUENCY (Hz/kHz) When this LED illuminates the following parameter can be set: BASE TIME(s) When this LED illuminates the following parameter can be set: SLOPE DOWN (s) When this LED illuminates the following parameter can be set: /STARTING CURRENT (%/A) When this LED illuminates the following parameter can be set: POST-GAS (s) Illuminates to signal activation of a connected remote control unit, if available. This LED indicates that the current reference setting is imposed by the remote controller. Illumination shows that the following function has been activated: 2 stroke procedure. Illumination shows that the following function has been activated: 4 stroke procedure. Illumination shows that the following function has been activated: 4 stroke B-level procedure + high frequency arc strike (HF).

  • Page 13: Unit Power-Up

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD CODE SYMBOL DESCRIPTION Data setting: The display shows the value of the selected parameter. Welding: The display shows the effective voltage during welding operations. HOLD function: The display shows the average voltage value measured over the entire welding period (excluding the starting and ending ramps). Press the button to select the parameter to be set. Possible choices: Q-START - DYNAMIC ARC - MULTI TACK AC TIG mode: Press the button to select the parameter to be set. Possible choices: MIX AC - EXTRA FUSION - AC FREQUENCY – AC BALANCE - ELECTRODE DIAMETER Press and release: the button selects the first level menu parameters. Hold down for 3 seconds: the button opens the second level menu. When in the menu, press and release the button to select the parameters. Keep the button pressed while powering on the power source: the button opens the SETUP menu. Press and release: the button opens the JOBs upload menu. Hold down for 3 seconds: the button opens the JOBs save and delete menu. Press and release: the button enables the device to receive the welding current control signal from a remote controller. Hold down for 3 seconds: the button activates a connected remote controller, if available, which is then used to manage all functions of the welding power source from a distance. TIG DC / TIG AC mode: This button selects the torch trigger procedure. MMA mode: Press the button to show the selected electrode type for MMA welding.

  • Page 14: Reset (Load Factory Settings)

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD RESET (LOAD FACTORY SETTINGS) L4 L5 L12 L13L14 SETTING L22 L23 L36 L38 ACTIVATION/ EXIT ACTIVATION SELECTION The reset procedure involves complete restoration of the default values, parameters and memory set- tings set in the factory. The reset procedure is useful in the following cases: - Too many changes made to the welding parameters so user finds it difficult to restore defaults. - Unidentified software problems that prevent the welding power source from functioning correctly. PARTIAL RESET The reset procedure involves restoration of the parameter values and settings, except the following settings:...

  • Page 15: Set-Up (Initial Set-Up Of The Welding Power Source)

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD ○ Exit with confirmation - Press the S3 button. - Wait for the memory clear procedure to terminate. This action will automatically close the menu. ○ Exit without confirmation - Press any button (except S3). - This action will automatically close the menu. SET-UP (INITIAL SET-UP OF THE WELDING POWER SOURCE) L4 L5 L12 L13L14 SETTING...
  • Page 16 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Tab. 1 - Setup settings ACRONYM SETTING DEFAULT COOLER ACTIVATION St.C. STARTING CURRENT F.Cu. FINAL CURRENT HF.C. HF CURRENT 20 A 250 A HF.t. HF TIME 0.5 s 2.0 s 3.0 s PUL.
  • Page 17 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD This serves to start the cooler for 15 seconds to fill the torch cooling circuit. - St.C. [STARTING CURRENT] ○ The value of this parameter can be set as a percentage of the welding current or as an absolute value expressed in Amperes. - F.C. [FINAL CURRENT] ○ The value of this parameter can be set as a percentage of the welding current or as an absolute value expressed in Amperes. - HF.C. [HF CURRENT] ○ This parameter establishes the current value during HF discharge. The value of this parameter can be set as an absolute value or in SYN. ○ With SYN setting the HF current value is calculated automatically on the basis of the pre-set weld- ing current value. Consequences of a higher value: •...

  • Page 18: Alarm Management

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD • RC09 special pedal type. This type of pedal recognises the pressure applied to the foot pedal or the torch button, switching automatically from internal adjustment to external control using the pedal. - I.UP [UP CURRENT] ○ When the parameter is set to ON, the maximum value of the welding current that can be set with the UP / DOWN torch is the current set by the encoder in the front panel of the welding power source. When the parameter is set to OFF, the maximum value of the welding current that can be set with the UP / DOWN torch is the maximum current that can be supplied by the welding power source. ALARM MANAGEMENT This LED illuminates if an incorrect operating condition occurs. An alarm message appears on the following display: D2. Tab. 2 - Alarm messages MESSAGE MEANING EVENT CHECKS In start-up phase Appears for 2-3 seconds...
  • Page 19 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD MESSAGE MEANING EVENT CHECKS Software compatibility error Indicates that the welding power All functions disabled. • Update the remote device soft- source has a software version that E. 69 Exceptions: ware. is not compatible with the remote • Cooling fan. • Contact support device connected to it (remote controller, wire feed unit).

  • Page 20: Mma Welding

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD MMA WELDING 8.1 TIG WELDING/GOUGING - FIRST LEVEL MENU L4 L5 L12 L13L14 70.0 SETTING L22 L23 L36 L38 SELECTION ACTIVATION ○ Press the S6 button to activate the MMA or GOUGING mode. L 36 L 38 GOUGING ○...

  • Page 21: Mma /Gouging Welding -Second Level Menu

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD - WELDING CURRENT ○ This parameter regulates the primary welding current value. - MAXIMUM CURRENT WITH REMOTE CONTROLLER ○ The maximum output current value that can be achieved with foot pedal controller external refer- ence. - HOT-START ○ This parameter aids electrode melting at the time of arc striking. It is set as a percentage referred to the value of the following parameter: WELDING CURRENT. The value is limited to 250A max.
  • Page 22 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD ○ Hold down the S2 button for 3 seconds to access the 2nd level menu. - The acronym relative to the setting to be edited appears on the following displays: D1. - The value relative to the selected setting appears on the following displays: D2. ○ Press the S2 button to scroll the list of settings to edit. ○ Using theencoder E1 , edit the value of the selected setting. The value is saved automati- cally. Tab. 4 - Parameters of the 2nd level menu: MMA mode ACRONYM SETTING DEFAULT...

  • Page 23: Mma Welding - Special Functions

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 8.3 MMA WELDING - SPECIAL FUNCTIONS L12 L13L14 L4 L5 d.Ar SETTING L22 L23 L36 L38 ACTIVATION ○ Press the S1 button to activate the special function. - The acronym relative to the setting to be edited appears on the following displays: D1. - The value relative to the selected setting appears on the following displays: D2. ○...

  • Page 24: Tig Welding

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD TIG WELDING 9.1 TIG WELDING - FIRST LEVEL MENU L12 L13L14 L4 L5 11.3 SETTING L22 L23 L36 L38 SELECTION ACTIVATION ○ Press the S6 button to activate the TIG mode. L 38 TIG DC CONTINUOUS L 39 TIG DC PULSED L 40 SYNERGIC PULSED DC TIG L 41 AC TIG...
  • Page 25 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Tab. 6 - Parameters of the 1st level menu: TIG DC, CONTINUOUS and TIG AC mode: ACRONYM SETTING DEFAULT MAX USEFUL ADVICE Pr.G. 0.0 s 0.1 s 10.0 s PRE-GAS TIME Recommended value 0-3s...
  • Page 26 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD - The SYNERGIC PULSED TIG DC enables a highly concentrated arc to be obtained. It is a very sta- ble arc and moves the pool with strong fluctuations. It is ideal for use in spot welding and the creation of thin fillets. It is recommended for thin gauge sheets and in particular where a very stable arc is required (viscous pools) In this mode, the welding parameters are pulsed: BASE CURRENT; PEAK TIME; PULSED FRE- QUENCY are only displayed and cannot be modified. - PRE-GAS TIME ○ Time of gas delivery before the arc strike. ○ This adjustment is required when fixing points must be created or when welding in hard-to-reach positions that call for the presence of inert atmospheres before striking the arc. - Consequences of a higher value: •...
  • Page 27 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD • - Increase of heat-affected zone. - PEAK TIME ○ Time for which the current pulse is at the maximum value. ○ The SET UP, PULSED TYPE=FAST settings, the adjustment is a % of the PULSED CYCLE (CYCLE TIME=1/PULSED FREQUENCY). ○ In the settings for SET UP, PULSED TYPE = SLOW, the adjustment is expressed in seconds. - Consequences of a higher value: •...

  • Page 28: Tig Welding - Second Level Menu

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD • - Lower gas consumption. • - Oxidation of electrode tip (more difficult arc strike). For a better understanding of the parameter functions described in the table, refer to the following diagram. (I1) WELDING CURRENT (I2) BASE CURRENT (I3) FINAL CURRENT (I4) STARTING CURRENT (t1) UP SLOPE TIME...
  • Page 29 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Tab. 8 - Parameters of the 2nd level menu: DC TIG mode ACRONYM SETTING DEFAULT MAX NOTES SP.t. SPOT TIG TIME 0.01s 0.01s 10.0S Only with 2 STROKE SPOT Only with 2 STROKE SPOT PA.t. PAUSE TIME 0.01s oFF 10.0s...
  • Page 30 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD • Good execution speed and optimum penetration. • Low level of welding arc noise. ○ Disadvantages: • Slightly lower performance than with a Square wave. TRIANGULAR WAVE: ○ Benefits: • Low energy transmitted to the weld workpiece and therefore suitable for materials or alloys with low melting points. • Penetration control (not high) • Very low level of welding arc noise. ○ Disadvantages: • Current is not suitable for high speed execution or for bright beading or high penetration. - SPOT TIG TIME ○...
  • Page 31 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD electric arc. It is advisable to use LIFT-ARC priming in applications such as maintenance of machinery in operation, welding close to printed circuits or soldering near computers. PROCESS FOR ARC IGNITION IN LIFT-ARC MODE: Position the tungsten electrode on the ignition point, so that there is a distance of about 2-3mm between the electrode and the workpiece Touch the piece with the electrode and press the torch button according to the mode selected. Lift the torch to strike the arc. - MINIMUM PEDAL CURRENT ○ Minimum output current value with foot pedal controller external reference. The current is set as a percentage with respect to the "maximum foot pedal current" parameter.

  • Page 32: Tig Dc Welding - Special Functions Menu

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 9.3 TIG DC WELDING - SPECIAL FUNCTIONS MENU L4 L5 L12 L13L14 q.St SETTING L22 L23 L36 L38 ACTIVATION ○ Press the S1 button to activate the special function. - The acronym relative to the setting to be edited appears on the following displays: D1. - The value relative to the selected setting appears on the following displays: D2. ○...
  • Page 33 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD - DYNAMIC ARC ○ This function allows, on the reduction of the arc voltage, an increase of the welding current and vice versa. The size of the DynamicArc variation may be individually adjusted to a value between 1A to 50A. For example, an increase of 50A for 1 volt variation. ○ This value must be set depending on the material thickness, and the type of processing to be carried out (values between 1A and 20A for thin layers while a value between 20A and 50A for medium-thick layers). ○ Welding power remains constant even when the distance between electrode and workpiece changes. - Consequences of a higher value: •...
  • Page 34 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD - MULTI TACK ○ This consists of continual welding that allows optimum control of the thinnest gauge sheets/ bevels with irregular shapes. - Benefits: • Major reduction in oxidisation with the absence of deformations. • This parameter allows thin gauge sheet to be welded without deformation. - Consequences of a higher value: •...

  • Page 35: Tig Ac Welding - Special Functions Menu

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 9.4 TIG AC WELDING - SPECIAL FUNCTIONS MENU L4 L5 L12 L13L14 SETTING L22 L23 L36 L38 ACTIVATION ○ Press the S1 button to activate the special function. - The acronym relative to the setting to be edited appears on the following displays: D1. - The value relative to the selected setting appears on the following displays: D2. ○...
  • Page 36 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD • Greater weld penetration. • Less deformation. • Faster creation of the weld pool. • Reduced cleanliness of the workpiece. • Loss of arc. ○ It is advisable not to exceed the 50% value of DC- wave as it would penalize the pickling of the piece and the aesthetic result of the weld bead. Current Full period (100%) (50%) (50%) - EXTRA FUSION ○ This feature allows for a move towards the negative side waveform with respect to zero. It is therefore possible to create a penetrating and precise weld pool, which will allow for very thin gauge sheets to be welded using an electrode tip comparable to that of an electrode for TIG DC welding -.
  • Page 37 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD EXTRA FUSION CURRENT EXTRA FUSION CURRENT EXTRA FUSION - AC INVERSION FREQUENCY ○ The frequency in TIG AC is the number of inversions by DC + to DC- as a unit of time (T1) and adjusted in Hertz (Hz). The reduction in the frequency value of the electric arc inversion tends to widen its size, therefore it is advisable to use low frequencies for the welding of relatively large thicknesses or for filling passes in multipass bevels. Conversely, in increasing the inversion fre- quency value, the arc size tends to decrease and therefore increases the concentration of the pool and the precision of the welding. It is therefore advisable to use high values of frequency for the welding of very thin thickness or for facings on edges of moulds - Consequences of a higher value: • Arc concentration. •...
  • Page 38 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD - AC BALANCE ○ This parameter establishes the positive wave vs. negative wave time ratio. The following figure shows graphs with waves with different AC balance values: “0” BALANCE represents the optimum ratio between “Cleanliness and Penetration” “+” BALANCE represents the curve of the current curve with an AC Balance with a positive value (cleaner); in this case the percentage of the positive wave is greater than the negative one. “-” BALANCE represents the curve of the current with a negative value AC balance (more penetration) in which it can be seen that there is a low percentage of positive wave when compared with the negative. - Consequences of a higher value: •...

  • Page 39: Torch Trigger Procedure

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 10 TORCH TRIGGER PROCEDURE L4 L5 L12 L13L14 11.3 L22 L23 L36 L38 SELECTION ○ Press the S5 button to select the desired PULSED TORCH mode. L 32 2 STROKE L 33 4 STROKE L 34 4 STROKE BI-LEVEL L 35...
  • Page 40 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Tab. 16 - Pulsed Torch button mode table. → PROCEDURE ↓ MODE 2T HF 4T HF 4T B-L 4T B-L HF 2T Q-SPOT 2T Q-SPOT HF ELECTRODE GOUGING √...
  • Page 41 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD ○ Bring the torch up to the work until the electrode tip is approximately 2 or 3 mm away. ○ Press (1T) and keep the torch trigger pressed. ○ The arc strikes without contact with the workpiece and the voltage discharges (HF) cease auto- matically. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ Release (2T) the trigger to start the weld completion procedure. ○ The current reaches the end current value in the time set in the down slope time parameter. ○ The arc is extinguished. ○ Gas delivery continues for the time set in the post gas parameter. 1St TIME 2nd TIME WELDING CURRENT STARTING...
  • Page 42 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 4Th TIME 1St TIME 2nd TIME 3rd TIME WELDING CURRENT FINAL CURRENT C.C. CURRENT STARTING CURRENT DOWNL LIFT POST GAS SLOPE SLOPE IGNITION - 4 STROKE + HF ○...
  • Page 43 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 4 STROKE B-LEVEL LIFT: ○ Touch the workpiece with the torch electrode. ○ Press (1T) and keep the torch trigger pressed. ○ Slowly lift the torch to strike the arc. ○ The arc strikes, the welding current assumes the pilot current value. (if activated from the SET UP menu.) ○ Release (2T) the torch trigger. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○...
  • Page 44 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD ○ Release (4T) the trigger to extinguish the arc. ○ Gas delivery continues for the time set in the post gas parameter. PRESS AND RELEASE 1st TIME 2nd TIME 3rd TIME 4th TIME PRIMARY CURRENT SECOND FINAL CURRENT CURRENT STARTING CURRENT RAMP POST GAS PRE-GAS DOWN SLOPE IGNITION...

  • Page 45: Stroke Spot - Q-Spot Function

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 10.1 2 STROKE SPOT - Q-SPOT FUNCTION L4 L5 L12 L13L14 SP.t 0.01 SETTING L22 L23 L36 L38 3 sec ACTIVATION/ ACTIVATION SELECTION ○ Press the S5 button to select the PULSED TORCH 2 STROKE SPOT mode.
  • Page 46 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD ○ This function is ideally suited to the welding of thinner gauges, head to head position and the pipes. Place the torch with the electrode on the precise point to be fixed. • Press the torch trigger and then lift. • After lifting the torch, a precise trigger will follow. ○ Recommended: Set the highest current possible with the lowest possible time. Value: 0.01-0.5 Sec. If the spot-welding time is less than 1.0s, the up and down slopes are eliminated automati- cally by the welding process, although they are displayed and can be set by the user interface. ○ Warning: It is important to check the up and own slopes are null (0sec.) ○...
  • Page 47 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD - 2 STROKE SPOT HF: ○ Bring the torch up to the work until the electrode tip is approximately 2 or 3 mm away. ○ Press (1T) the torch trigger. ○ The arc strikes without contact with the workpiece and the voltage discharges (HF) cease auto- matically. ○ Release (2T) the torch trigger. ○ The welding current reaches the pre-set value, by way of an up slope time, if programmed. ○ The welding procedure continues, at the pre-set current, for the time set with the spot time pa- rameter. ○...
  • Page 48 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 1. Position the torch 2. Press the torch Lift torch 4. The arc ignites for 5. The result of this with the electrode on trigger and keep it slightly. A few hundredths of is a very precise, the workpiece.
  • Page 49 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Tab. 18 - Table showing enabled Welding Parameters MODE → MENU PROCEDURE ↓ → PARAMETER ↓ WELDING 1° √ √ √ √ √ √ √ √ √ √...
  • Page 50 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Tab. 19 - Table showing enabled TIG AC Welding Parameters MODE → MENU PROCEDURE ↓ → PARAMETER ↓ 1° WELDING CURRENT 1° HOT-START 1° ARC-FORCE 1° PRE-GAS TIME 1°...

  • Page 51: Jobs Management

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 11 JOBS MANAGEMENT Personalised welding settings, or JOBs, can be saved in memory locations and subsequently uploaded. Up to 50 JOBS can be saved (j01-j50). JOBs can be managed only when the unit is not in welding mode. The SETUP menu settings cannot be saved by means of the JOBs. When a JOB is loaded and an UP/DOWN torch is installed, press the torch triggers to select the saved JOBS. If there are no JOBS loaded, the UP/DOWN buttons on the torch serve to adjust the welding current. 11.1 SAVING A JOB L4 L5 L12 L13L14 SELECTION L22 L23 L36 L38 3 sec ACTIVATION CONFIRM BACKUP ○...

  • Page 52: Deleting A Job

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 11.2 DELETING A JOB L4 L5 L12 L13L14 SELECTION L22 L23 L36 L38 3 sec ACTIVATION/ CONFIRM CANCEL ○ Hold down the S3 button for 3 seconds to gain access to the JOB save/delete menu. - SA. Job : The message appears on the following displays: D1-D2. ○ Use the encoder E1 , to select the following setting: Er.

  • Page 53: Loading A Job

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 11.3 LOADING A JOB L4 L5 L12 L13L14 J.01 SELECTION L22 L23 L36 L38 ACTIVATION CONFIRM ○ Press the S3 button to activate the LOAD JOB menu. - LO. JXX : Only when the jobs have been uploaded, the message is shown on the following displays: D1-D2. • xx= number of the last job used. - No.

  • Page 54: Technical Data

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 12 TECHNICAL DATA Waste electrical and electronic equipment (WEEE) Electromagnetic compatibility (EMC) Directives applied Low voltage (LVD) Restriction of the use of certain hazardous substances (RoHS) Construction standards EN 60974-1; EN 60974-3; EN 60974-10 Class A Equipment compliant with European directives in force Equipment suitable in an environment with increased hazard of electric shock Conformity markings Equipment compliant with WEEE directive Equipment compliant with RoHS directive 12.1 CRUISER 322 AC/DC - POWER PULSE 322 AC/DC Supply voltage 3 x 400 Va.c. ± 15 % / 50-60 Hz Mains protection...

  • Page 55: Cruiser 402 Ac/Dc - Power Pulse 402 Ac/Dc

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 45% (40° C) 20.9 A 18.8 A 40% (40° C) 21.6 A Maximum supply current 60% (40° C) 18.1 A 15.1 A 17.5 A 100 % (40° C) 16.2 A 12.7 A 15.0 A 45% (40° C) 14.0 A 12.6 A 40% (40° C) 13.7 A...

  • Page 56: Cruiser 502 Ac/Dc - Power Pulse 502 Ac/Dc

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD No-load voltage (U0) Reduced no-load voltage (Ur) 10.8 kV Rated HF peak voltage (Up) Arc striking device designed to work with manual guided torch. 12.3 CRUISER 502 AC/DC - POWER PULSE 502 AC/DC Supply voltage 3 x 400 Va.c. ± 15 % / 50-60 Hz Mains protection 40 A 500 V Delayed Compliant with EN 61000-3-12...

  • Page 57: Electrical Diagram

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 13 ELECTRICAL DIAGRAM 13.1 CRUISER 322 AC/DC - POWER PULSE 322 AC/DC 022.0002.0255 022.0002.0190 022.0002.0227 022.0002.0223 050.XXXX.0116 BLACK 050.XXXX.0057 BLACK BLACK H.F. 022.0002.0218 MAINS SWITCH BROWN BROWN BROWN HALL BLACK...
  • Page 58 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 050.XXXX.0116 H.F. 022.0002.0218 HALL 050.XXXX.0036 JP4-FLAT 9 10 050.XXXX.0071 5 6 7 2 3 4 5 6 7 8 9 10 JP1-FLAT 10VIE VOUT 050.XXXX.0112 GND_ISO N.C. 050.XXXX.0027 +24V_ISO OK-FAN...
  • Page 59 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 022.0002.0255 022.0002.0190 022.0002.0227 022.0002.0223 BLACK 050.XXXX.0057 BLACK BLACK MAINS SWITCH BROWN BROWN BROWN BLACK BLACK 050.XXXX.0147 BLACK 050.XXXX.0036 YELLOW-GREEN YELLOW-GREEN 050.XXXX.0068 022.0002.0156 022.0002.0312 022.0002.0073 JP14 18VAC-2 18VAC-1 33VAC-2 18VAC-1 33VAC-1...
  • Page 60 GND_ISO N.C. Cod. 006.0001.1820 050.XXXX.0027 +24V_ISO Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH OK-FAN WELD THE WORLD SIGNAL-4 EXT-REF -15V RIC-PED +15V PULS-TORCIA COM HF PULS-DOWN 050.XXXX.0139 PULS-UP SIGNAL-3 ALARM-CU SIGNAL-2 EV-TIG OK-GRUPPO CON-CONT SIGNAL-1 AL-IN 050.XXXX.0140 I-INV I-HALL VOUT RIC-MACCHINA RID-MOD...
  • Page 61 230VAC-1 230VAC-1 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 NERO-BLACK GND ISO +24V-FAN ROSSO-RED 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC GND ISO NERO-BLACK +24V-FAN ROSSO-RED ENGLISH WELD THE WORLD GND ISO +24V-FAN GND ISO NERO-BLACK +24V-FAN ROSSO-RED NERO-BLACK GND ISO ROSSO-RED +24V-FAN N.C. N.O. POWER_PULSE_VERSION 050.XXXX.0140 GND-ISO...
  • Page 62 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...

  • Page 63: Cruiser 402/502 Ac/Dc - Power Pulse 402/502 Ac/Dc

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 13.2 CRUISER 402/502 AC/DC - POWER PULSE 402/502 AC/DC REMOTE 1 RS232 COM 1 6 5 4 CONN-ILME AL CU09 022.0002.0296 JP20 JP22 JP10 FLAT 34VIE 21 22 23 28 29 30 4 5 6 7 8 9...
  • Page 64 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD CONN-ILME AL CU09 Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 022.0002.0296 www.welda.be F +32 (0)9 355 92 01...
  • Page 65 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD REMOTE 1 RS232 COM 1 6 5 4 Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
  • Page 66 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 022.0002.0296 JP20 1 2 3 5 4 3 Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
  • Page 67 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD JP22 JP10 FLAT 34VIE 21 22 23 28 29 30 4 5 6 7 8 9 28 29 30 OUT2 JP1 FLAT 34VIE OUT3 050.XXXX.0139 +5V-PROG RX1-RS232 RX2-RS232 TX1-RS232 TX2-RS232...

  • Page 68: Remote 1" Connector

    Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 13.3 “REMOTE 1” CONNECTOR Cod.021.0004.1509 13.4 “IR” CONNECTOR Cod.021.0004.1001 13.5 TORCH CONNECTOR (front panel) cod. 021.0004.3360 Torch Up/Down Torch 13.6 REMOTE CONTROL CONNECTOR (back panel) cod. 021.0004.0602 Torch with Potentiometer REMOTE CONTROLLER FOOT PEDAL REMOTE CONTROLLER...

  • Page 69: Spare Parts

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 14 SPARE PARTS 14.1 CRUISER 322 AC/DC - POWER PULSE 322 AC/DC Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
  • Page 70 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD N° CODE DESCRIPTION N° CODE DESCRIPTION 014.0002.0010 KNOB 43 011.0013.0023 UPPER PLATE 013.0012.1403 FRONT PANEL LABEL (322 AC/DC) 44 021.0001.0279 OUTPUT SOCKET 046.0004.0012 PLASTIC SUPPORT FOR HF 45 011.0013.0040 RIGHT TUNNEL SUPP.

  • Page 71: Cruiser 402/502 Ac/Dc - Power Pulse 402/502 Ac/Dc

    Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD 14.2 CRUISER 402/502 AC/DC - POWER PULSE 402/502 AC/DC Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
  • Page 72 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD N° CODE DESCRIPTION N° CODE DESCRIPTION 014.0002.0010 KNOB 38 011.0000.0901 UPPER COVER 013.0012.1301 FRONT PANEL LABEL (502 AC/DC) 39 031.1005.0228 CAPACITOR 013.0012.1201 FRONT PANEL LABEL (402 AC/DC) 40 050.0002.0053 LINE FILTER BOARD 046.0004.0012...
  • Page 73 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD N° CODE DESCRIPTION 82 003.0002.0019 LITTLE FAN 83 046.0004.0018 HF PLUG SUPPORT 84 011.0013.0049 INTERNAL FAN GRID 85 021.0004.2993 10 PIN CONNECTOR CAP 86 040.0007.1200 FUSE 87 045.0006.0104 HF COPPER BRACKET N°...
  • Page 74 Cod. 006.0001.1820 Cruiser 322/402/502AC/DC 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
  • Page 75 Cruiser 322/402/502AC/DC Cod. 006.0001.1820 25/05/2018 V.2.6 Power Pulse 322/402/502AC/DC ENGLISH WELD THE WORLD Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
  • Page 76 Cod. 006.0001.1820 25/05/2018 V.2.6 Antwerpsesteenweg 949 9041 Gent - Oostakker info@welda.be T +32 (0)9 355 74 26 www.welda.be F +32 (0)9 355 92 01...
