Finelite 10WM series Joining Instructions

FINELITE

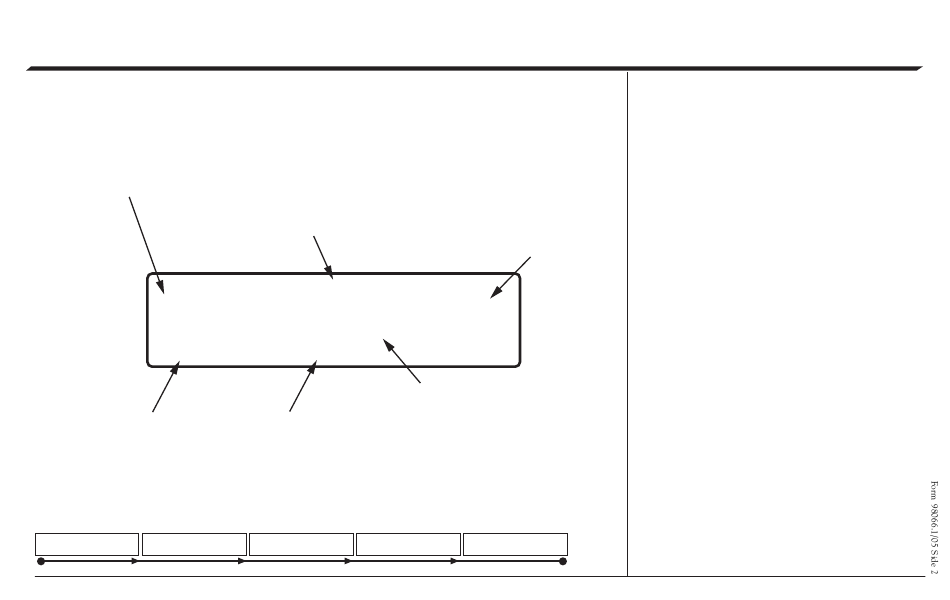

Look for the labels — you need them to install your job correctly.
Fixture Type and Run Length
S5-20
S5-P-20-2T8-00000-EP-277-SC-MOT-FE-FW-00-00
ABC Corporation - A12495
Job Name
Hang fixtures in ID order. Hang prior to joining.
Hang, Level, Join, repeat to the end of the run.
STARTER ID:1 JOINER ID:2
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • 510 / 441-1100 • FAX: 510 / 441-1510 • www.finelite.com
STARTER, JOINER, or ENDER
STARTER
Full Catalog Order ID
Factory Order Number
JOINER ID:3 JOINER ID:4
Unique Fixture
ID Number
ID: 1
UC
ENDER ID:5
Read the Label
HANG PRIOR TO JOINING
1. Identify all fixtures. Look for labels
located:
2 labels - 1 at each end of box (or bag)
1 label - box top (or bag top)
1 on fixture (permanent)
2. Keep plastic bags ON for protection. T8
lamps may be turned on with the bags on.
T5 and T5-HO lamps get too hot - remove
bags before turning lamps on.
3. Lay out fixtures starting with ID: 1, then
ID: 2, etc.
4. Hang STARTER fixture ID: 1. Secure both
ends to mounting aircraft cable and level.
5. Hang far end of JOINER ID: 2 while
supporting both ends.
6. Join ID: 1 and ID: 2 by attaching plug
together wiring, screwing fixtures together.
NOTE: See additional mounting and joining
instructions for each Finelite Series.
