7
4
6
1
2
LCD DISPLAY SCREEN
SPECIFICATIONS
• Display zone : 0~250 psi, 0~17.2 bar, 0~17.6 kg/cm
• Operating Temperature: 0 º ~ 85 º
• Battery : CR2032 x 1 pc
• Size : 10.2 x 4.5 x 3.5 cm
• Weight : 95 grams
OPERATION OF SMARTGAUGE D2
Select unit
Select valve by
and adjust
sliding selector
proper angle.
button.
Select unit
Select valve by
and adjust
sliding selector
proper angle.
button.

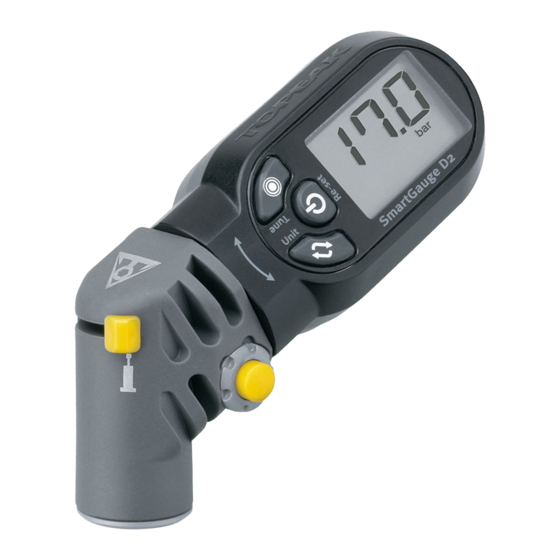

SMARTGAUGE D2
5
3
CHANGING BATTERY
NOTES
1. Do not violently shake or drop the gauge.
2
2. If the gauge gets wet, wipe it with a dry towel as soon as possible.
3. Do not apply excessive force to the LCD display screen.
4. Do not use organic solvents, such as alcohol or paint thinner when cleaning the gauge.
5. Keep this gauge away from magnets.
6. Do not expose this gauge to dust or sand as this could cause damage.
7. Smart Gauge D2 is designed for use with tires, forks and shocks.
Schrader Valve
Presta Valve
8
CR203
Beep
Hold tire and gauge tightly when
operating for precise measurement.
Beep
Hold tire and gauge tightly when
operating for precise measurement.
User's Guide
1. Air Release Button
2. Air Pressure Units Selection Button
3. Reset and on/off Button
4. Adjusting Button
5. LCD Display Screen
6. SmartHead for Presta or
Schrader valve
7. Selector Button for Presta or
Schrader valve
8. Battery Cover
Low Battery
GB
