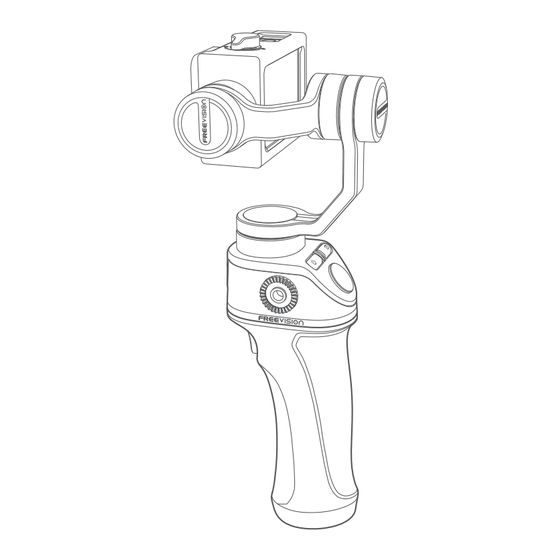

FreeVision Vilta User Manual
Gimbal for gopro
Hide thumbs
Also See for Vilta:
- User manual (30 pages) ,
- Quick start quide (12 pages) ,
- User manual (12 pages)
Related Manuals for FreeVision Vilta
Summary of Contents for FreeVision Vilta
- Page 1 VILTA V 1.2...
-
Page 2: Important Statement
Please visit official website to download the latest User Manual Important Statement 1. VILTA contains two modes: Denoising Performance Denoising is default mode, suitable for all scenarios. Be sure to select Denoising mode when you have high requirement on audio quality. -
Page 3: Product Overview
Product Overview... - Page 4 01. Tilt Axis 12. Camera Frame 02. Roll Axis 13. Pan Axis Lock 14.1/4 Screw Port 03. Pan Axis 04. Power Switch 15. Function Button 05. Shutter Button 16. HERO3/3+/4 Frame 17. Golden Finger Connector 06. Status Indicator 07. Joystick 18.
-
Page 5: Installation
User Manual Installation Unlock Gimbal 1) Slide the Pan Axis Lock down 2) Twist the Tilt Aixs and Roll Axis to unlock The Status Indicator will flash red if any axis is locked Install Camera 1) Insert GoPro in the Camera Frame 2) Fasten the knob as indicated 1. - Page 6 Handle Dismantle and Mantle Dismantle: Press handle Dismantle Button and push as stated to demount the handle Mantle: Release Dismantle Button and align the mount, slightly pushing forward the gimbal 1. After dismantling handle, double tap on Power Button of gimbal to switch Follow Mode 2.
- Page 7 Operation Status Setting 1）Long press the Power Switch and control VILTA through joystick 2）Connect VILTA with APP and control through vitual joystick Tilt Manual Directly adjust the shooting direction by hand Manual Mode can be turned on/ off in App...
- Page 8 Connect and Shoot VILTA as Remote Control Power on the gimbal and camera, and operate camera with the following steps GoPro5 CONNECTIVITY Connect New Smart Remote GoPro 4 PAIR WI-FI RC SETTING GoPro 3/3+ WI-FI RC When the Shutter Button lights off, connection is successful...
- Page 9 Connect APP Download and install APP For iphone Please search FreeVision in APP Store to download and install For Andriod Scan the QR code below to download and install The Shooting Function Menu in the APP VIDEO Video Video+Photo Looping...
- Page 10 1) Take off the GoPro USB side door cover (Caution: it may affect the water-proof function of GoPro) 2) Insert charging module into GoPro, the camera will be charged by VILTA. Set GoPro charging mode in APP GoPro charging module is an optional accessory...
- Page 11 Advanced Button Function & Status Indicator Specification Power Switch Shutter Button Status Indicator Button Function Long press for 2s On / Off Long press for 7.5s Forced Shutdown Power Single tap Sleep/Awake Switch Double tap Mode Switch （wearable gimbal only） Button Function Single tap...
- Page 12 Mode Function Button Control Function Button Semi-Follow Single Tilt and Roll Axes are locked. mode Pan Axis smoothly moves with handle (Default) Double Roll Axis is locked. Pan and Tilt Axes Follow smoothly move with handle Mode Tilt, Roll, and Pan Axes are locked. Quadruple Lock Camera always keeps the current...
- Page 13 Parameter Specification Parameter: Dimensions 94*41*258 mm(Folded) Weight 430g(15.16 oz) Supported Camera GoPro Hero3/3+/4/5 Technical Parameter: ·Controllable Rotation Range Pan Axis: 360° (Infinite Rotation) Tilt Axis: -45°～100° Roll Axis: ±40° ·Mechanical Rotation Range Pan Axis: 360° (Infinite Rotation) Tilt Axis: -90°to 135° Roll Axis: -44°to 90°...
- Page 14 6. Hero 3/3+/4 frame WARNING 1. Do not expose to fire or high heat. 2. Drop and collision will break VILTA. Please caution. 3. Not water-proof. No water or liquid cleaning agent. 4. Do not disassemble, repair or modify VILTA.
- Page 15 www.freevisiontech.com...
