Table of Contents
1.
Overview
2
3.
4.
5.
6.
7.
Chapter 1 - OVERVIEW
Congratulation on your purchase of Cabzeus!

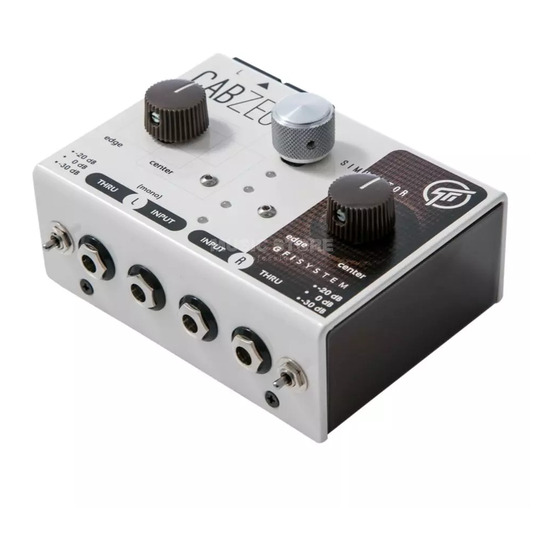

Cabzeus is a algorithm-based speaker - cabinet - miking simulator
system. Connected direct to your gears this device enables you to obtain
the sound of a miked-guitar amp cabinet without the hassle of miking your
cabinets. Extending this basic function, we've built into Cabzeus a pleth-
ora of unique and powerful features that goes beyond simple
speaker simulations.
User Manual
CABZEUS
Speaker Simulator System
1 - 5
6 - 7
8 - 10
11
12
12
13 - 15
1
Stereo I/O
Cabzeus has 2 independent channels, each with its own input, thru, and
output. With a special software that we provide you can freely customize
the whole simulation aspects (speaker type, cabinet type, mic placement,
etc.) of each channel independently. To help you get the most of your
stereo setup, we have also included powerful stereo processing functions
such as :
adding short delays to one of the channel.
blending two simulation channels.
independent volume and phase control.
Presets
When you've found your favorite settings you can save them as presets
in Cabzeus. The presets (8 of them) can then be called using the preset
selector knob, an external switchbox, or a MIDI controller.
Preset 1 - 4 : LED turns Green
Preset 5 - 8 : LED turns Red
Bypass : LED turns off.
Preset selector knob
Preset LEDs
2
Advertisement
Table of Contents
Summary of Contents for GFI System Cabzeus
-
Page 1: Table Of Contents
Overview 1 - 5 When you’ve found your favorite settings you can save them as presets in Cabzeus. The presets (8 of them) can then be called using the preset Using CabsLab software (brief guide) 6 - 7 selector knob, an external switchbox, or a MIDI controller. - Page 2 A stereo headphone out with a dedicated volume control is available to allow silent practicing or private monitoring. Cabzeus has a pair of inputs, and each one has its dedicated Thru output. A wide array of input sources can be connected to the inputs, ranging from your...
-
Page 3: Using Cabslab Software (Brief Guide)
(1) Choose the desired preset location Converting TRS to XLR. If you are connecting Cabzeus outputs to an equipment that do not have TRS input socket you will need to use a cable with a TRS plug on one end, and an XLR on the other end. -
Page 4: Application Ideas
Chapter 3 - Application Ideas Reading stored preset from Cabzeus (1) Choose the desired preset location 1. Typical Live / Studio application using an amp as sound source. (2) Click ‘Read’ ‘Solo’ Function One very useful feature that you will find yourself using a lot is the ‘Solo’... - Page 5 Application Ideas (cont.) Application Ideas (cont.) 2. Intergrating Electric and Acoustic setup. 3. Practicing to accompaniment music (minus the neighbors banging on your door) In CabsLab software : Use STEREO CABS mode. In CabsLab software : Choose ‘MISC : Full-Range Speaker’ for the Right channel, and any other speaker ...
-
Page 6: Remote Preset Change
Preset-8 Bypass 2. Using External Switch. MIDI Channel Cabzeus is pre-programmed to use MIDI channel 16. You can use the TS-to-USB Type-B CabsLab software to change the channel number to any number from 1 USB Port Chapter 6 - Updating Firmware external switch You can use CabsLab to perform firmware updates. -
Page 7: Factory Presets
Chapter 7 - Factory Presets The pedals comes with 8 factory presets. Storing new presets will over- write these. You can use the CabsLab software to restore the factory presets. - Page 8 MIDI and External Switch Inputs for remote preset change. Stereo headphone out with volume control. You can find many more information here : http://www.gfisystem.com/cabzeus--faq.html This product is designed and manufactured by : Specifications : Input impedance : 1 MOhm.
