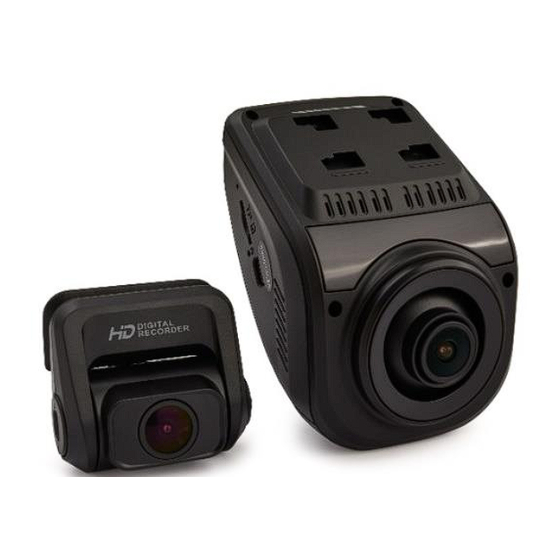

- Page 1 V1P 3rd Gen User Manual The information in this manual is subject to change without notice. www.rexingusa.com 12/2018Rev4 ©2018 REXING All Rights Reserved...
-
Page 2: Safety Information
Failure to comply with safety warnings and regulations can result in serious injury or death. Rexing Dash Cam is not intended to be touched, modified, or calibrated while operating a vehicle. Rexing is not responsible for any damages resulting from the user's misuse of the camera. - Page 3 ● your device. Using an incompatible charger can cause serious personal injury or damage to your device. Rexing cannot be responsible for the user’s safety when using ● accessories or supplies that are not approved by Rexing. Do not drop the charger or device, or subject them to impact. Handle and dispose of the charger and device with care.
- Page 4 If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and take it to a Rexing Service Center. Failure to do so may result in fire or explosion.
- Page 5 V1P 3rd Gen Manual Do not store your device in excessively hot, cold, damp or dry locations. Doing so may cause the screen to malfunction or result in damage to the device. If your device becomes overheated, allow it to cool down before use.
-
Page 6: Correct Disposal Of This Product
V1P 3rd Gen Manual Do not distribute copyright-protected material. Doing so without the permission of the content owners may violate copyright laws. The manufacturer is not responsible or liable for any legal issues that result from the user’s illegal use of copyrighted material. -
Page 7: Disclaimer
ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL REXING BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES... - Page 8 V1P 3rd Gen Manual Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Rexing has no control.
-
Page 9: About This Manual
Content may differ from the final product or from software provided by service providers and is subject to change without prior notice. For the latest version of this manual, refer to the Rexing website at ● www.rexingusa.com. Available features and additional services may vary by device and ●... -
Page 10: Table Of Contents
V1P 3rd Gen Manual Table of Contents Safety Information ................... 2 Correct Disposal of This Product ............6 Disclaimer....................7 About This Manual .................. 9 Table of Contents .................. 10 Product Specifications ................14 Package Contents ................. 15 Camera Overview .................. 16 Device Layout ................... - Page 11 V1P 3rd Gen Manual Turning the Device On and Off ............27 Basic Operation ................28 Wi-Fi Connect ................... 29 Video Settings ..................30 Resolution ..................30 Loop Recording ................. 31 WDR (Wide Dynamic Range) ............31 Exposure ................... 31 Record Audio ..................
- Page 12 V1P 3rd Gen Manual Screen Saver ..................35 Daylight Saving ................. 35 GPS ....................35 Update Time of GPS ................. 36 Format....................36 Default Setting .................. 36 Version ....................36 Photo Settings ..................37 Capture Mode ................... 37 Resolution ..................37 Quality ....................
- Page 13 V1P 3rd Gen Manual Playback ....................40 Camera Playback Mode ..............40 Computer Playback ................41 GPS Playback ................... 42 Troubleshooting ..................44 Updating Firmware ................44 Common Solutions ................45 ©2018 REXING All Rights Reserved...
-
Page 14: Product Specifications
V1P 3rd Gen Manual Product Specifications Image Sensor Front - OV4689, Rear - IMX323 Lens Fixed-focus with full-glass elements Aperture f1.8 CPU Class Novatek Display 2.4 inch, 4:3 TFT LCD Audio I/O Internal high-sensitivity mic and speaker Memory Support Class 10 or higher Micro SD card (up to 256GB) -
Page 15: Package Contents
V1P 3rd Gen Manual Package Contents The following items should be found in the package: Rexing V1P 3rd Generation Dashboard Camera ● Full HD Rear Camera ● Rear Camera cable (20ft) ● Car power connector (12ft) ● 3M adhesive mount ●... -
Page 16: Camera Overview
V1P 3rd Gen Manual Camera Overview Device Layout 1. OK (Confirm) Button 6. Micro SD Card Slot / Emergency Lock Button 2. Up Navigation Button 7. Reset Button / Record Button 3. Power Button 8. USB Charging Port / Screen Toggle Button 9. -
Page 17: Buttons
V1P 3rd Gen Manual Buttons Button Function Press: Toggle display on or off Hold: Turn the device on or off manually Menus: Confirm a selection Video Mode: Manually lock current recording Photo Mode: Take photo Playback Mode: Start / stop playback... - Page 18 V1P 3rd Gen Manual Press and hold for 4 seconds to reset the device in the event that it operates erratically, hangs up, or RESET freezes Flashing Red – Recording Indicator ©2018 REXING All Rights Reserved...
-
Page 19: Status Icons
V1P 3rd Gen Manual Status Icons Icon Meaning Video resolution Currently recording (blinking) Wide Dynamic Range enabled Connected to power source Audio recording enabled Audio recording disabled Video Recording Mode ©2018 REXING All Rights Reserved... - Page 20 V1P 3rd Gen Manual Playback Mode Photo Mode Loop Recording Memory card detected Exposure GPS searching for signal (animated) GPS signal acquired (no animation) Current recording locked ©2018 REXING All Rights Reserved...
-
Page 21: Getting Started
V1P 3rd Gen Manual Getting Started Installation Video guide can be found at video.rexingusa.com. 1. Attach the front camera to the window mount Make sure that you mount the front camera in a safe, appropriate location where it won’t obstruct the driver’s view. Clean your windshield before applying the mount. - Page 22 4. Connect the car charger to the car's 12V DC outlet Run the cable down from your camera to the 12V cigarette lighter port of your vehicle. Be sure to connect only Rexing-approved chargers designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.
-
Page 23: Powering The Camera
If the device receives an unstable power supply, the screen may not function properly. If the device is not operating properly using a Rexing- approved charger, please contact Customer Care (care@rexingusa.com). ©2018 REXING All Rights Reserved... -
Page 24: Inserting The Memory Card
V1P 3rd Gen Manual Inserting the Memory Card The V1P 3rd Gen accepts Micro SD memory cards (class 10 or higher) with a maximum capacity of 256GB. Depending on the memory card manufacturer and type, some cards may not be compatible with your device. -
Page 25: Removing The Memory Card
Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of data. -
Page 26: Formatting The Memory Card
V1P 3rd Gen Manual Formatting the Memory Card Before formatting your memory card, always remember to make backup copies of all important data stored on the device. The manufacturer’s warranty does not cover loss of data resulting from user actions. -
Page 27: Turning The Device On And Off
To turn off the device, again press and hold the Power button for a few seconds. A goodbye message will be displayed onscreen. The V1P 3rd Gen will switch on and off automatically if you keep it connected using the car charger. The camera will automatically start recording when powered on. -
Page 28: Basic Operation
V1P 3rd Gen Manual Basic Operation Automatic Recording The device will automatically turn on and begin recording once it receives power, such as when you start your car. The indicator and the red dot icon on screen should flashing while recording. -
Page 29: Wi-Fi Connect
Dash cam: Once connected, the screen should switch to the camera view and display a “WiFi Connected” message. Using the Rexing Connect app, you can view a live preview of the dash cam screen, start / stop recording, as well as view and save your captures with your mobile device. -
Page 30: Video Settings
V1P 3rd Gen Manual Video Settings These settings affect your video recordings. In Video Recording Mode, press REC to stop recording, then press MENU once to open the Video Menu. Resolution Default setting: FHD P30 + FHD P30 (1080p 30fps front and rear) Set the video recording resolution. -
Page 31: Loop Recording
V1P 3rd Gen Manual Loop Recording Default setting: 1 Minute Video will be continually recorded in segments. When the storage limit is reached on the memory card, new recordings will automatically overwrite oldest recordings. Locked video files on the memory card will remain protected, and won’t be overwritten by Loop Recording. -
Page 32: Record Audio
V1P 3rd Gen Manual Record Audio Default setting: On Allows you to enable or disable audio recording with your videos. You may choose to record audio with video, or turn off the microphone so that all recorded videos will be muted. -
Page 33: Plate Number
V1P 3rd Gen Manual Plate Number Default setting: Off Enter your vehicle plate number. The plate number will be displayed at the bottom of your videos. To enter your license plate number: REC / MIC – Change current value ●... -
Page 34: System Settings
V1P 3rd Gen Manual System Settings Press MENU twice to open the Setup Menu (in Video Recording Mode, you must first stop recording, done by pressing REC). Wi-Fi Default setting: Off Turn this feature on to temporarily enable Wi-Fi mode (See: Page 29). -
Page 35: Language
V1P 3rd Gen Manual Language Default setting: English Set your preferred device language. Frequency Default setting: 60Hz Power supply specification used in your country or geographical region. United States users should use 60Hz (default). Screen Saver Default setting: Off Specifies the duration for which the display will stay on after the device is powered on. -
Page 36: Update Time Of Gps
V1P 3rd Gen Manual Update Time of GPS Default setting: Off Updates the time automatically with your time zone (GPS Logger required). Format Performing this operation will format the memory card, clearing it of all files. Note: Locked videos will also be cleared, so ensure you have backed up your important footage before formatting the card. -
Page 37: Photo Settings
V1P 3rd Gen Manual Photo Settings These settings affect your still photo captures. Hold MENU button 3 seconds to enter the Photo Mode. In Photo Mode, Press MENU once to open the Still Menu. Capture Mode Default setting: Single Sets a timer that counts down before capturing images. -
Page 38: White Balance
V1P 3rd Gen Manual White Balance Default setting: Auto Adjust the white balance for different lighting environments. When set to Auto, the camera will automatically determine the appropriate white balance for each shot. Color Default setting: Normal Overlay a color effect for captured images. When set to Normal, no overlay is applied. -
Page 39: Quick Review
V1P 3rd Gen Manual Quick Review Default setting: Off Upon capturing an image, the image will be previewed on the display for a few seconds before returning to Photo Mode. Date Stamp Default setting: Date/Time Apply a date and/or time stamp to captured images (works similarly to the Date Stamp function in the Video Menu). -
Page 40: Playback
V1P 3rd Gen Manual Playback Video recordings from the front and back cameras will be stored in chronological order on the memory card for easy navigation and playback. Camera Playback Mode To play back recordings on your device: Switch to Playback Mode by holding the MENU button. -
Page 41: Computer Playback
V1P 3rd Gen Manual To delete all recordings: In Playback Mode, press MENU to view the Playback Menu. Press the MIC button to scroll down to "Delete". Press OK once to view options to "Delete Current" recording or "Delete All"... -
Page 42: Gps Playback
V1P 3rd Gen Manual GPS Playback With the use of a compatible Rexing GPS Logger accessory (not included), you may play back your recordings in a specialized application which allows you to view speed and location information alongside your footage. - Page 43 V1P 3rd Gen Manual Playback Beneath the video is a playback bar with a handle which you can drag to skip to any time in the video. Beneath that, there’s a volume control slider, as well as previous, rewind, pause/play, fast forward, next, and stop buttons.
-
Page 44: Troubleshooting
V1P 3rd Gen Manual Troubleshooting Updating Firmware Please note that we only recommend updating your firmware if you experience issues with your camera. Installing incorrect firmware can damage your device. Identify the correct firmware for your camera by following the prompts on the rexingusa.com firmware portal. -
Page 45: Common Solutions
V1P 3rd Gen Manual Common Solutions Problem Possible Cause(s) Solution(s) Memory card is full or malfunctioning Format memory card or replace with a new one Images are not Image not being being saved saved before the Make sure to stop recording... - Page 46 V1P 3rd Gen Manual MENU button Camera is Press REC to stop recording isn’t responding recording before accessing the menu Ensure you are using a proper Device won’t Power source is connection for charging your turn on or it insufficient device while driving.
- Page 47 V1P 3rd Gen Manual Memory card isn’t Restore to default settings compatible Keeps turning Get a replacement power cord Camera isn’t getting continuous Use a new memory card power Memory card is Format the memory card. If issue defective or...
- Page 48 V1P 3rd Gen Manual Restore default settings Memory card isn’t Format the memory card. If issue compatible Stops recording persists, replace the memory randomly Loop Recording is card Turn Loop Recording on G-sensor sensitivity Make sure Gravity Sensing is on...
- Page 49 V1P 3rd Gen Manual “File error" is encountered Format the memory card. If issue Memory card is when trying to persists, replace the memory corrupted play back card pictures or video Carefully clean dust or Hazy images Lens is dirty...
- Page 50 V1P 3rd Gen Manual Losing/Resetting Need to update Update firmware date Firmware Check Wi-Fi settings on your Mobile device isn’t Wi-Fi isn’t mobile device, ensure you are connected to connecting connected to the SSID shown on camera the camera ©2018 REXING All Rights Reserved...
