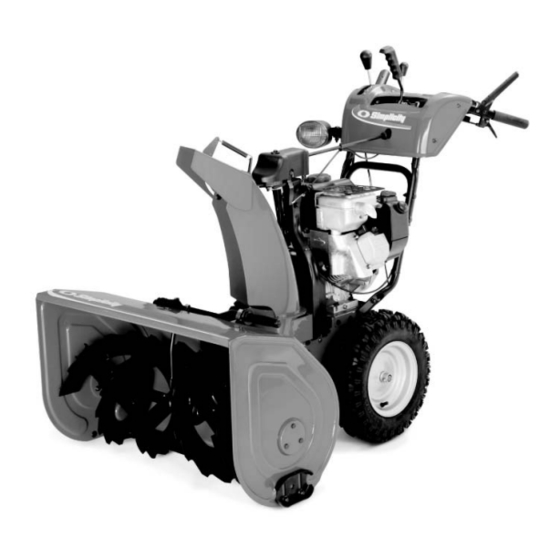

Simplicity 1696326 Parts Manual

26", 28", 30", 32" auger path large frame two-stage series snow throwers
Hide thumbs

Advertisement

Table of Contents

Large Frame Two-Stage
26" Auger Path
Mfg. No.
Description
1695326
L1226E, 11.0GT 26" Snowthrower
1695327
L1226E, 11.0GT 26" Snowthrower (CE/Export)
28" Auger Path
Mfg. No.
Description
1695330
L1428E, 13.5GT 28" Snowthrower
1695331
L1428EX, 13.5GT 28" Snowthrower (CE/Export)
30" Auger Path
Mfg. No.
Description
1695334
L1530E, 14.5GT 30" Snowthrower
1695335
L1530EX, 14.5GT 30" Snowthrower (CE/Export)
32" Auger Path
Mfg. No.
Description
1695338
L1632E, 15.5GT 32" Snowthrower
Series Snowthrowers
Parts Manual
Part No.:
TP 400-4726-00-LW-S
1735346
08/2007
Rev.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1696326 and is the answer not in the manual?

Questions and answers

Related Manuals for Simplicity 1696326

Summary of Contents for Simplicity 1696326

  • Page 1 Large Frame Two-Stage Series Snowthrowers 26" Auger Path Mfg. No. Description 1695326 L1226E, 11.0GT 26" Snowthrower 1695327 L1226E, 11.0GT 26" Snowthrower (CE/Export) 28" Auger Path Mfg. No. Description 1695330 L1428E, 13.5GT 28" Snowthrower 1695331 L1428EX, 13.5GT 28" Snowthrower (CE/Export) 30" Auger Path Mfg.

  • Page 3: Table Of Contents

    PRODUCT COMPONENTS Handle & Controls Group ... Engine & Frame Group ... Auger Drive Group ... Auger Housing & Chute Group ... Traction Drive Group - EZ Turn ... Traction Drive Group - Standard ... 22 Wheel & Tire Group ... Decal Group ...

  • Page 4: Handle & Controls Group

    Handle & Controls Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 5 Handle & Controls Group REF NO PART NO. QTY. DESCRIPTION 1923701SM CAPSCREW, Hex Head 3/8-16 x 2 G5 1732470SM KNOB, Interior Thread 3/8-16 1732427SM ROD, 3/8 Diameter 5" Large, 3/8-16 x 1 Chute 1924356SM WASHER, 3/8 50786MA SPRING 1918266SM WASHER, 3/8 1919439SM NUT, Hex Lock ESNA Light 3/8-16 1722667SM...
  • Page 6 Handle & Controls Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 7 Handle & Controls Group REF NO PART NO. QTY. DESCRIPTION 1734586ASM HANDLE, Upper L.H. 1960723SM CARRIAGE BOLT, 5/16-18 x 2-1/4 G5 1732781ASM HANDLE, Lower 1960686SM NUT, Hex Flange 5/16-18 1935048SM NUT, Hex Flange 5/16-18 Two-Way Lock 1664847SM SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 313441MA BRACKET, Cable Adjusting 308146MA...

  • Page 8: Engine & Frame Group

    Engine & Frame Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 9 Engine & Frame Group REF NO PART NO. QTY. DESCRIPTION ENGINE, 11.5HP B&S - Model #21C2140132E1 ENGINE, 10.5HP B&S - Model #20E2140118E1 ENGINE, 9.5HP B&S - Model #20A4140117E1 ENGINE, 8.5HP B&S - Model #15C1140112E1 ENGINE, 8.5HP B&S - Model #15C1140111E1 (CE/Export) ENGINE, 9.5HP B&S - Model #20A4140119E1 (CE/Export) ENGINE, 10.5HP B&S - Model #20E2140113E1 (CE/Export) 1724064SM...
  • Page 10 Engine & Frame Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 11 Engine & Frame Group REF NO PART NO. QTY. DESCRIPTION 1501050E701MA1 FRAME, 7.5-8.5HP B&S (Only used on 8.5HP Models) 1733583CSM PLATE, Engine Mount 11GA 1924856SM SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 1664847SM SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 1733923SM COVER, Belt w/Toolbox B&S 002X97MA...

  • Page 12: Auger Drive Group

    Auger Drive Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 13 Auger Drive Group REF NO PART NO. QTY. DESCRIPTION 1668344SM PIN, SHEAR 7023590SM COTTER PIN, 1/4" Self Locking 1612187ASM IMPELLER ASSEMBLY, Large Frame Snow 1960474SM SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8 1732185SM PULLEY, w/Hub 1734674ASM AUGER ASSEMBLY, 24" & 26" R.H. 1734676ASM AUGER ASSEMBLY, 28"...

  • Page 14: Auger Housing & Chute Group

    Auger Housing & Chute Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 15 Auger Housing & Chute Group REF NO PART NO. QTY. DESCRIPTION 1734555CSM HOUSING ASSEMBLY, 26" 1734556CSM HOUSING ASSEMBLY, 28" 1734557CSM HOUSING ASSEMBLY, 30" 1734558CSM HOUSING ASSEMBLY, 32" 1732384ASM BLADE, Scraper 26" 1709947ASM BLADE, Scraper 28" 1732385ASM BLADE, Scraper 30" 1709948ASM BLADE, Scraper 32"...
  • Page 16 Auger Housing & Chute Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 17 Auger Housing & Chute Group REF NO PART NO. QTY. DESCRIPTION 1732231SM ROD, Hex, Chute 1722460SM PIN, Quick 1732241SM COVER, Chute 2860210SM WASHER, Nylon 1931333SM CARRIAGE BOLT, 5/16-18 x 3/4 G5 1960686SM NUT, Hex Flange 5/16-18 ESNA 1733455SM SPRING, Extension 696239SM KNOB &...

  • Page 18: Traction Drive Group - Ez Turn

    Traction Drive Group - EZ Turn NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E 1695335 - L1530EX 1695338 - L1632E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 19 Traction Drive Group - EZ Turn REF NO PART NO. QTY. DESCRIPTION 579851MA CHAIN, Roller 334163MA RETAINER & BUSHING ASSEMBLY 579858MA WASHER 1924856SM SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 579868MA CHAIN, Roller 11X30MA RETAINER, Ring 7/16 1502105YZMA SPRING LINK ASSEMBLY 165X112MA SPRING, Extension 1960027SM...
  • Page 20 Traction Drive Group - EZ Turn NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E 1695335 - L1530EX 1695338 - L1632E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 21 Traction Drive Group - EZ Turn REF NO PART NO. QTY. DESCRIPTION 1720298SM SPRING, Compression 2860169SM WASHER, 1-3/16 1733101SM RETAINER, Bushing 1720305SM BUSHING Footnotes The above parts group applies to the following Mfg. Nos.: 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E 1695335 - L1530EX 1695338 - L1632E...

  • Page 22: Traction Drive Group - Standard

    Traction Drive Group - Standard NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E Briggs and Stratton Yard Power Products Group Copyright © 2007 by Briggs and Stratton Corporation Milwaukee, WI, USA.
  • Page 23 Traction Drive Group - Standard REF NO PART NO. QTY. DESCRIPTION 579851MA CHAIN, Roller 334163MA RETAINER & BUSHING ASSEMBLY 579858MA WASHER 1924856SM SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 579868MA CHAIN, Roller 11X30MA RETAINER, Ring 7/16 1502105YZMA SPRING LINK ASSEMBLY STANDARD 165X112MA SPRING, Extension 1501090MA...

  • Page 24: Wheel & Tire Group

    Wheel & Tire Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 25 Wheel & Tire Group REF NO PART NO. QTY. DESCRIPTION 1731186SM PIN, Klik .313 x 1.97 (Used on 26" Models) 1679697SM PIN, Klik 1/4 x 1-3/4 (Used on 28", 30" & 32" Models) 1732935SM WHEEL & TIRE ASSEMBLY, 15 x 5 L.H & R.H. (Used on 26" Models) 1723169SM WHEEL &...

  • Page 26: Decal Group

    Decal Group NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1695326 - L1226E 1695327 - L1226E 1695330 - L1428E 1695331 - L1428EX 1695334 - L1530E Briggs and Stratton Yard Power Products Group Copyright ©...
  • Page 27 Decal Group REF NO PART NO. QTY. DESCRIPTION 1733056SM DECAL, Dashboard Standard Drive (Domestic Only) 1733033SM DECAL, Dashboard EZ Turn (Domestic Only) 1733059SM DECAL, Dashboard Standard Drive (CE/Export Only) 1733060SM DECAL, Dashboard EZ Turn (CE/Export Only) 1733772SM DECAL, Shift 1,2,3,4,5,6 R1 R2 1716532SM DECAL, Danger Avoid Injury From Auger (Domestic Only) 1727208SM...

  • Page 29: Torque Specification Chart

    Hardware Identification & Torque Specifications Common Hardware Types Hex Head Capscrew Carriage Bolt Standard Hardware Sizing When a washer or nut is identified as 1/2”, this is the Nominal size , meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the Nominal size , or body diameter is 1/2 inch;...
  • Page 30 MANUFACTURING, INC. 500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA www.simplicitymfg.com Briggs and Stratton Yard Power Products Group Copyright © 2007 by Briggs and Stratton Corporation Milwaukee, WI, USA. All rights reserved...
