USER MANUAL – EN

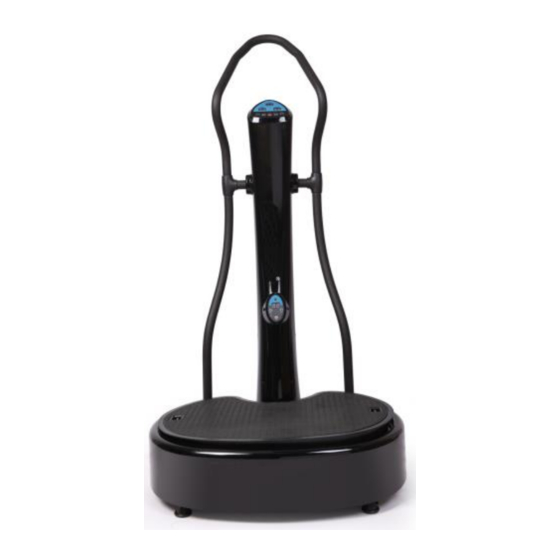

IN 8947 Vibration Machine VibroGym inSPORTline Charles

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VibroGym Charles and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline VibroGym Charles

Summary of Contents for Insportline VibroGym Charles

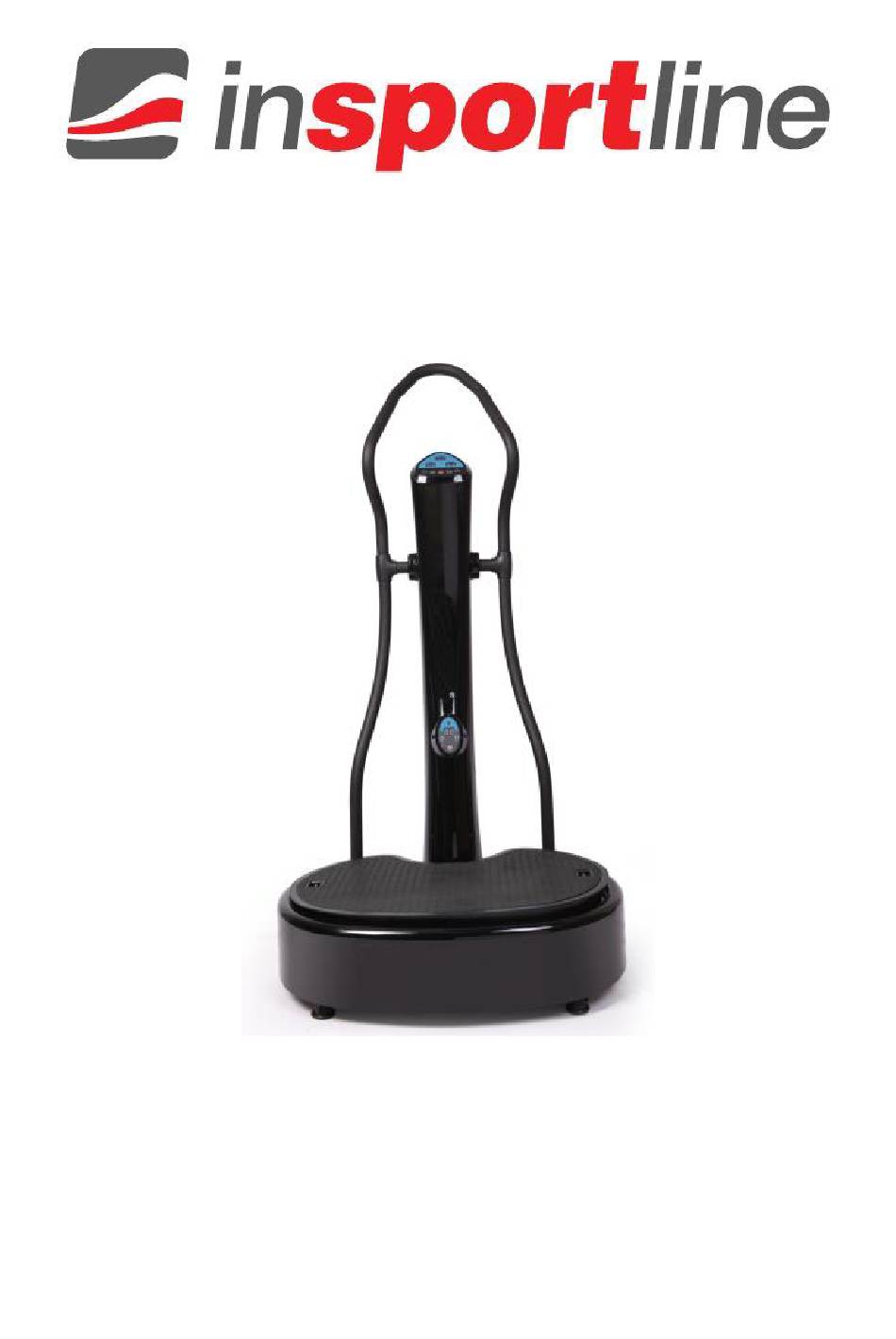

  • Page 1 USER MANUAL – EN IN 8947 Vibration Machine VibroGym inSPORTline Charles...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ............................. 3 PACKAGE LIST ............................3 EXPLODED DRAWING ........................... 4 PARTS LIST ............................5 ASSEMBLY STEPS ..........................8 CONSOLE ............................... 9 SAFETY PRECAUTIONS ........................11 MAINTENANCE AND STORING ......................13 STORING ............................13 REGULAR MAINTENANCE ......................14 CLEANING ............................14 PRODUCT SPECIFICATION ........................

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing this product. Before use, read the entire manual carefully and retain it for future reference. Category SC (according EN957 standard) suitable for home and club using. The producer keeps the right to change sticker design or material colour without having to give a notice.

  • Page 4: Exploded Drawing

    EXPLODED DRAWING...

  • Page 5: Parts List

    PARTS LIST Description Foot cushion Inner hexagon cylindrical screw Washer Footplate Strap fixer Switch Socket Metal clip Hexagon nipples Support frame Base casing Rubber ring Bearing bushing Deep groove ball bearing Eccentric block Inner hexagon cylindrical screw Inner hexagon cylindrical screw Spring washer Washer Insulation sleeve of spiral motor...
  • Page 6 Oscillation motor Insulation pad Hexagon nipple Big washer Insulation washer of motor seat Motor seat Insulation pad of motor seat Washer Spring washer Inner hexagon cylindrical screw Hexagon nut Spring washer Flat washer Locating ring Connecting rod axle Connecting rod bracket Clamp spring of axle Connecting rod Deep groove ball bearing...
  • Page 7 Inner hexagon cylindrical screw Adjustable foot Washer Spring washer Inner hexagon cylindrical screw Washer Spring washer Inner hexagon cylindrical screw Upper protection foam Upper handrail Main control panel sticker Cross self-drilling screw Sensor chip BMI Main control panel Display (PCB) Cross self-drilling screw Column Cross self-drilling screw...

  • Page 8: Assembly Steps

    Power cord LED lower controller display (PCB) ASSEMBLY STEPS STEP 1: Take the support tube (1) and base (2) out from the package. Connect upper and lower wire. STEP 2: Insert the tube (1) into base (2). Secure with screws (4) and install the foot cushion.

  • Page 9: Console

    Complete the assembly. The final state is shown in the right picture. Check if all bolts and nuts are properly tightened. CONSOLE UPPER CONSOLE MIDDLE CONSOLE...
  • Page 10 UPPER CONSOLE 1. Use this key do switch between time and speed displaying. 2. MODE window: displays current mode (manual or automatic). 3. TIME and OSCILLATION SPEED window, that displays time countdown or oscillation speed. Mutual switching. 4. SPEED window: it displays oscillation or spiral vibration speed. Mutual switching. 5.

  • Page 11: Safety Precautions

    PROGRAM PROFILE P2: Oscillation: 5 10 15 20 25 30 35 40 45 50 55 60 55 50 45 40 35 30 25 20 15 10 5 Vibration: Stop Oscillation: Stop Vibration: 5 10 15 20 25 30 35 40 45 50 55 60 55 50 45 40 35 30 25 20 15 10 5 Time interval: 10 seconds PROGRAM PROFILE P3: Oscillation:...
  • Page 12 • Older people and children may use it only under an adult person who is experienced in product using. You can so prevent yourself from being hurt. • Only one person can use this device at time. • Never exceed max. user weight of 120 kg to avoid product damage. •...

  • Page 13: Maintenance And Storing

    • If you have knee or hip implants • If you have a pacemaker • Contraception or metal implants • Carcinoma or oncologic illness • Infection • Postoperative state • Pregnancy • Chronic migraine ADVICES For better removing toxins out from your body, we recommend drinking 500 ml of pure water before each workout.

  • Page 14: Regular Maintenance

    REGULAR MAINTENANCE 1. Before cleaning or maintenance, switch off this device and remove the supply cord from electric outlet. 2. Don’t let this device working too long for the first time. 3. After each using, switch it off and remove the cord from electric outlet. 4.
