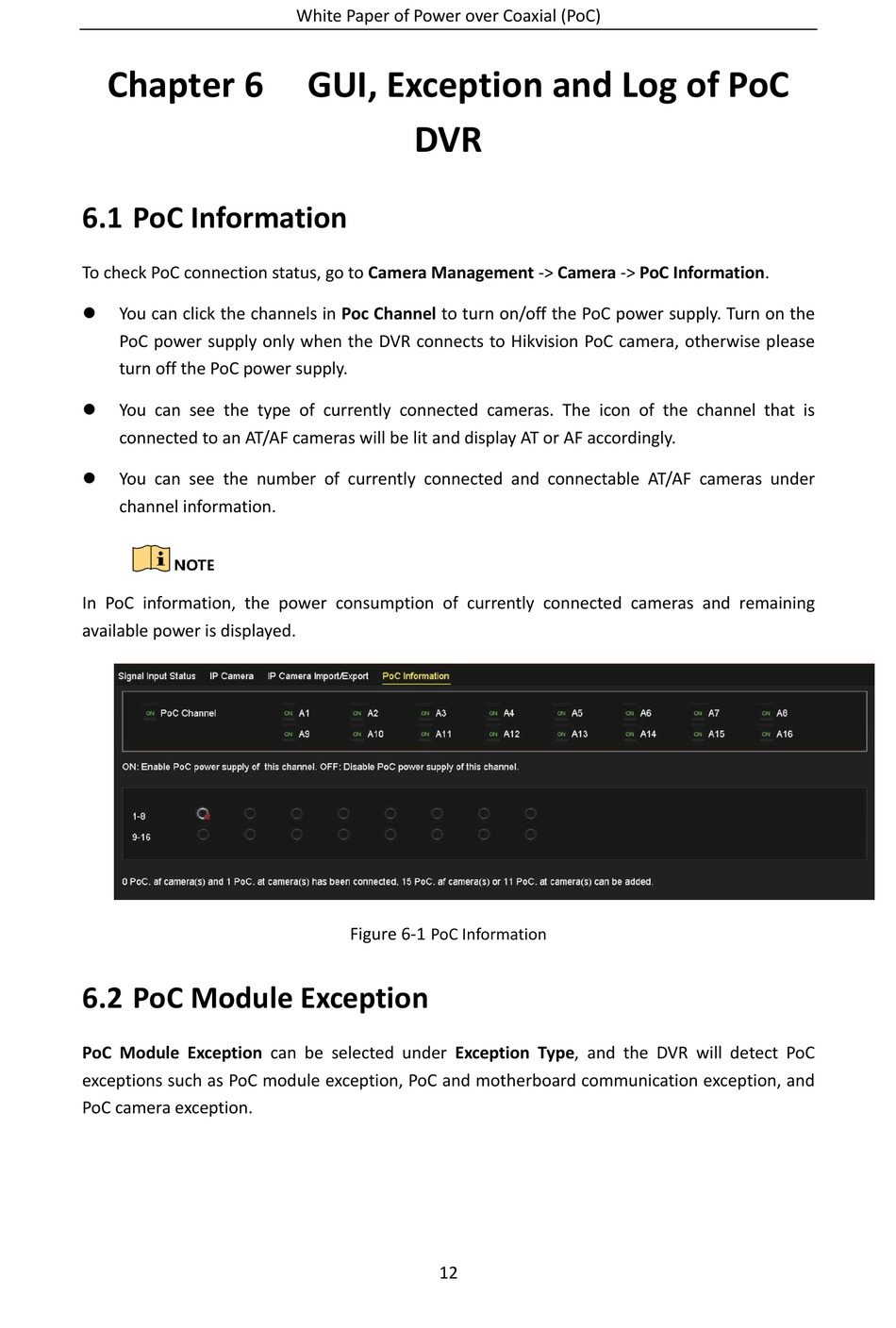

Chapter 6

6.1 PoC Information

To check PoC connection status, go to Camera Management -> Camera -> PoC Information.
You can click the channels in Poc Channel to turn on/off the PoC power supply. Turn on the
PoC power supply only when the DVR connects to Hikvision PoC camera, otherwise please
turn off the PoC power supply.
You can see the type of currently connected cameras. The icon of the channel that is
connected to an AT/AF cameras will be lit and display AT or AF accordingly.
You can see the number of currently connected and connectable AT/AF cameras under
channel information.
In PoC information, the power consumption of currently connected cameras and remaining
available power is displayed.

6.2 PoC Module Exception

PoC Module Exception can be selected under Exception Type, and the DVR will detect PoC
exceptions such as PoC module exception, PoC and motherboard communication exception, and
PoC camera exception.
White Paper of Power over Coaxial (PoC)
GUI, Exception and Log of PoC
DVR
Figure 6-1
PoC Information
12
